Vastas Valve - 36 inch - for sale

Equipment ID: 1052
Equipment name: Vastas Valve - 36 inch - for sale
Category: Miscellaneous Equipment
Specifications: Vastas Valve for Sale - 36"

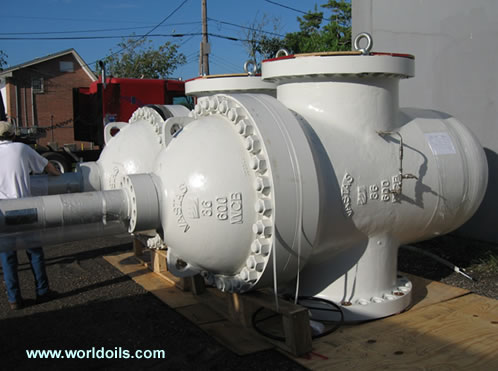

36” Vastas Valve for sale - class 600#
Double Expanding Gate Valve for Sale

Specifications

Manufacturer : Vastas Valve Manufacturing
Class : 600#

Type :
Double Expanding Gate Valve
Double Block and Bleed
Fire Safe Design

TCC Metal to Metal Seats with Emergency Lubricant Seal

Design Standard : API 6D
Bonnet : ASTM A216 Gr. WCB
Body : ASTM A216 Gr. WCB
Double Exp. Gate Face : Tungsten Carbide (HVOF)
Double Exp. Gate Assembly : AISI 410

Stroke : 1072 mm
Weight : 16500 Kg
Working Pressure : -29 + 38 *C 102 Bar; Max 425*C 56 Bar
Test Pressure : Shell 153 Bar; Closure 112 Bar; Air 6 Bar

Part No. : 110
DATE : 06-2010

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------
