Electro-Hydraulic Knuckle Boom Offshore Crane - 35T for sale

Equipment ID: 1082
Equipment name: Electro-Hydraulic Knuckle Boom Offshore Crane - 35T for sale
Category: Cranes / Lifting equipment
Specifications: Electro-Hydraulic Knuckle Boom Offshore Crane
35T Knuckle Boom Offshore Crane
Marine Offshore Crane for Sale
35T Crane for offshore vessels for sale

General
Crane type : Knuckle Boom
Drive system : Electro-hydraulic
Application : Offshore crane.
Zone classification : Safe
Classification : Det Norske Veritas (DNV)

Design Criteria
Design life :
Crane steel structure is designed for a lifetime of 20 years

Environmental Conditions
Environment -
Atmosphere : High in salinity
Humidity, relative : 85%

Zone classification -
Complete crane : Safe

Temperature conditions -
Design temperature : To minus 10 degrees Celsius
Ambient temperature : From minus 20 to plus 45 degrees Celsius.

Wind conditions -
Acc. to requirements of applicable classification society / design rules & standards.

Off-lead- /side-lead angles -
Acc. to requirement of applicable classification society / design rules & standards.

Technical Data
Crane Data -
Main lift data :
Lift type : Harbour
Lifting data -
SWL (in air) / T : 35 / 20
Working Radii -
Max / M : 23 / 30
Min / M : -4

Wire fall / No. : 2 / 1

Design Data
Design Factors -
Dynamic Factor : 1.15
Duty Factor : 1.0

Environment Data -
Heel + Trim / deg. : 5+2 :

Lift type : Deck Lift
Lifting data -
SWL (in air) / T : 35 / 17.5
Working Radii -
Max / M : 20/ 30
Min / M : -4

Wire fall / No. : 2 / 1

Design Data
Design Factors -
Dynamic Factor : 1.3
Duty Factor : 1.0

Environment Data -
Heel + Trim / deg. : 5 + 2
Wave Height (Hs, m) : 0*)

Lift type : Personnel
Lifting data -
SWL (in air) / T : 0.7
Working Radii -
Max / M : 30
Min / M : -4

The above are minimum design factors as per
DNV/Norwegian Maritime Directorate.

Winch Data
Winch Type : Main
SWL / T : 35 / 17.5

Wire Fall / Pc : 2 / 1
Hoisting Height / m : 75
Auxiliary : NA

Operational Speed
Main -
SWL (m/min) : 0-12
Light Load (m/min) : 0-25
Sec. average up/down : 100
Rpm : 0-0,5
Sec. average out/in : **)
Sec. Average out/in : NA

Speed is calaculated for middle wire layer on drum
**) - To be announced

Slewing range
Unlimited : 360 deg continuous.

Knuckle Boom :
Point of articulation: ~21,1 m from crane centre line.

Pedestal
Diameter, outside : Ø2840 mm
Height : 8000mm.

Loading forces to deck structure -
Dynamic overturning moment : 1750 Tm.
Slew brake moment : 160 Tm.

Weight
Complete crane, total dead weight :
~ 90000 kg (Incl. pedestal, not including hook load).

Pedestal : ~ 20000 kg (Height = 9600 mm)

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------
Search words(for official use only) :
Electro Hydraulic Knuckle Boom Offshore Crane
Offshore 35T Crane for offshore vessels for sale
35Ton Electro-Hydraulic Knuckle Boom Offshore Crane
Marine Offshore Crane
35T Knuckle Boom Offshore Crane
Offshore 35Ton Offshore Knuckle Boom
35T Offshore Knuckle Boom Crane for sale
35 ton Marine Offshore Crane for Sale
Offshore Crane for sale - 35Tons
------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Electro-Hydraulic Knuckle Boom Offshore Crane - 35T for sale

Images

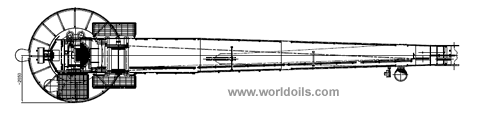

35T Electro-Hydraulic Knuckle Boom Offshore Crane
