Free length between spud foot and bottom S.E.P. : Max. 48m
Allowable deck load :
Up to 1000 ton, pending free spud length and required freeboard
while afloat.

In jacked position up to 1400 ton, subject to free spud length and
environmental conditions

Allowable deck point load : 15 ton/sqm
GL Class notation : *100A5 RSA (50) Self Elevating Unit

General

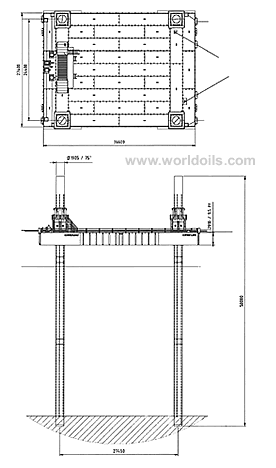

The platform is supported by four 75" diameter spud legs, each
one individually operated by four synchronized hydraulic cylinders
mounted in heavy duty spudwell. Specific capacity of each spudwell
is 600 ton. Spuds are delivered including two spud joints, separating
the spud in three parts for ease of transportation.

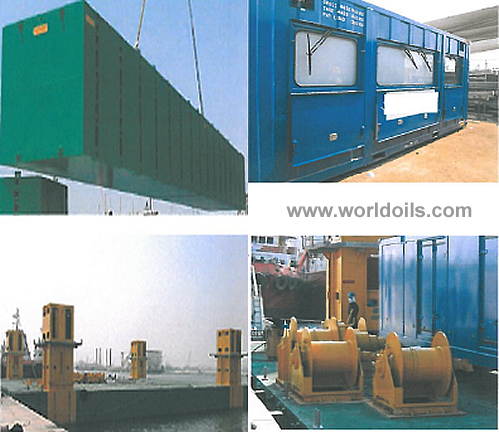

The platform consists of a number of standardized floating modules
coupled together through a male pin/ female connection system. Modules
are sized to be easily transportable by road, train or ship.
Specific deck point load of each module is 15 ton/sqm.

Due to its modular design, overall dimensions can be adapted to customer
needs.

Jacking System
The jacking mechanism consists of two hydraulically operated crossheads
per spudwell, to lock and unlock the spud from vertical movement.
Vertical movement is accomplished by 4 hydraulic heavy duty cylinders
with a stroke 1.2m working on an operating pressure of 140 bar.

The four spudwells are powered by a containerized hydraulic power pack,
for simultaneously lifting and lowering the spud legs through its seating.
The power packs are silenced with two 244kW radiator cooled diesel
engine driving a flywheel mounted tandem pump.

A Central Control System built in a Central deck house operates the
hydraulic control valves for synchronous lifting, with spare hydraulic
connectors for either emergency use or for further use of hydraulic
powered deck equipment, like winches / cranes etc.

Deck Equipment
4 hydraulic operated winches built on removable foundation with
following specifications :
Pulling force each one : 23 tons on first layer
Holding force : 26 tons
Pulling speed : 9 meter/min
Drum capacity : 264 meter Ø 32mm in 4 layers

Fairleads and deck sheaves for cable guidance are provided on deck.

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------
