Drilling Rig - ZJ40 Truck Mounted For Sale - 1000hp

Equipment ID: 118
Equipment name: Drilling Rig - ZJ40 Truck Mounted For Sale - 1000hp
Category: Land Rigs
Sub Category: Land Rigs
Specifications:

ZJ40 Land Rig for Sale - 1000hp
Self Propelled Drilling Rig for Sale
1000hp Land Drilling Rig

Technical Specifications
Structure type : Self propelled and truck mounted
Drilling depth : 3200 mtrs with 5” x 25.6 ppf nominal weight, Range II DP
Static hook load : API static load capacity 250 MT with 10 line strung to traveling block
Power Engine : 630 HP X 2
Drawworks horsepower : 1000 hp (input)
Gears, drawworks : 5 forward, 1 reverse

Traveling system : 5 x 6
Drive type, carrier : 14x10
Dia., wireline : φ32mm
Mast height : 39.3 mtrs , compatible for Top Drive operation
Monkey Board height : Adjustable, customer to be specified the require adjustable range
Rotary table opening : 27.5”
Gears, rotary table : 5 forward, 5 reverse

Drill floor height : 6.7 mts
Min. turning diameter : 22 m
Ground clearance : 340mm
Max. Gradient : 26%
Max speed : 60km/h (Limiting speed: 45km/h)

Traveling dimensions : as per the roading dimension with mast in colleps condition
Traveling weight : 83500kg(with mast)
Ambient temperature : -29 ËšCï½ž +50 ËšC

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------
Search words (for official use only) :
1000hp Drilling Rig for Sale
ZJ40 Self Propelled Drilling Rig for Sale
Truck Mounted Land Drilling Rig - 1000HP
Land Drilling Rig for Sale
1000hp Self Propelled and Truck Mounted Drilling Rig
ZJ40 1000hp Drilling Rig
--------------------------------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Drilling Rig - ZJ40 Truck Mounted For Sale - 1000hp

Images

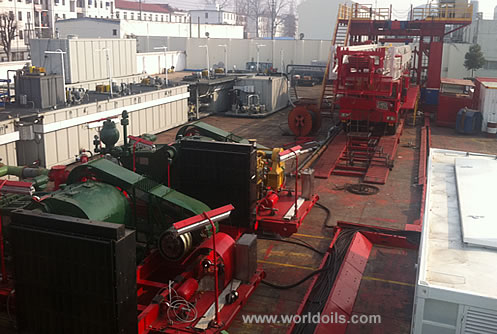

Self propelled and Truck Mounted Drilling Rig for sale
