DP Multi-Role Construction Support Vessel for Sale

Equipment ID: 1215
Equipment name: DP Multi-Role Construction Support Vessel for Sale
Category: Ships/Vessels
Specifications: DP Multi-Role Construction Support Vessel for Sale
Used DP Multi-Role Construction Support Vessel
1977 built DP Multi-Role Construction Support Vessel

Description
This vessel is a multi-faceted 7-capability vessel. She has the following capabilities :

Accommodation : Fully air-conditioned accommodation for 106 personnel + hospital
DP II : Dynamically positioned vessel. Underwent latest upgrade 2007.
Crane : Equipped with 100 ton crane
Diving : Equipped with moon pool & diving bell

General
Year built : 1977 / converted and upgraded 1990, 1995,1997,2000, 2007
Type : DP Multi-role construction support vessel
Notation : DNV + 1A1 DYNPOS - AUTR EO

Specifications
Length overall / length between perpendiculars : 95.21m / 90.95m
Breadth (moulded) : 18.45m
Depth (moulded) : 6.50m
Depth to Bulwark : 9.22m
Draft summer / Draft minimum : 5.07m
Draft : 4.75m

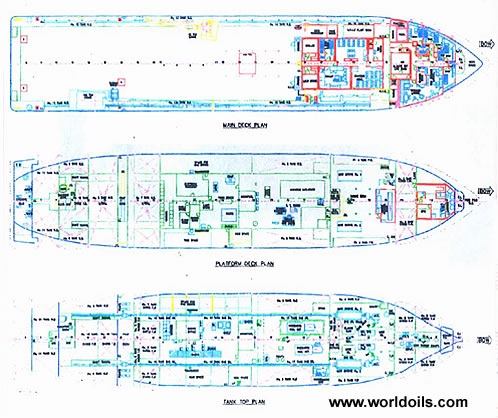

Main deck / Mezzanine deck / Main deck loading :
56.0 x 15.0m ; 840m2 / 195m2 / 5t

Gross Tonnage (GT) / Net Tonnage (NT) : 3375 / 1013
Deadweight : 3914
Classification society : INSB
Class assigned : Det Norske Veritas

Vessel’s complement :
DP vessel with large working; cargo deck of 840m2;
accommodation for 106 personnel incl marine crew

Speed : 10 Knots
Daily Consumption (sea /port ) : 8-10 t / 1t
Daily Endurance steaming / daily endurance on DP : 80 / 130
Fuel oil : 1160t
Portable water : 702t
Moon pool : 3.2m x 3.9m
Helideck : Yes
DP System : Simrad ADP 702, DP system

References for DP :
2# DGPS; Simrad HPR 410; Fan beam laser; Taut wire

Ballast Water : 2200 t
Email : Yes
Facsimile : Yes
Echo Sounder : Yes
Navtex : Yes
GPS : Yes
Automitic Identification System (AIS) : Yes
PA System : Yes
Gyro Compass : Yes

Other Communication & Navigation facilities :
Sat Com C; telex, weather fax receiver; AM/VHF aeronautical transreceiver,
3# VHF stations (with 2 DSC); Sat Comm B with voice, data and fax
capabilities; automatic identification system (AIS); ship security alert
system; automatic telephone system; PA system; GYRO compass &
AutoPilit; 2# Radar; Echo sounder; GPS

Generators : 2# Hemeora diesel 1600 KVA
Shaft Gennerators : 2# PTO from main engines x 1500 KVA

Auxy Generators : Add new 100kVA Gen
No. : 1
Type : Scania diesel 190 KVA
Safety Devices

Winches
Type : 14t Tugger Winch, hydraulic, located at stern starboard quarter

Deck Machinery

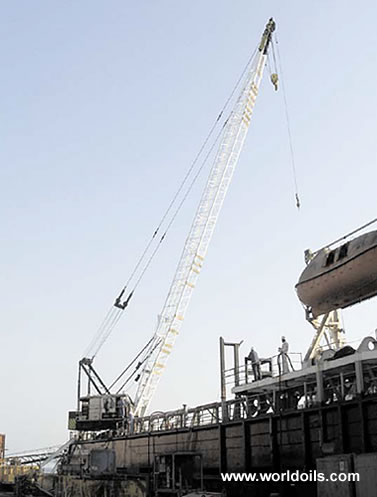

Crane :
100t (68t offshore) atstic SWL deck crane located at stern
starboard quarter; 10t static SWL deck crane located at forward
port quarter

Capstain : 2# 5t Hydraulic located at port and starboard stern quarters
Windlass
Anchors : 2

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------------
