Dredger For Sale - CSD 250
New build 410HP Cutter Suction Mini Dredger for Sale

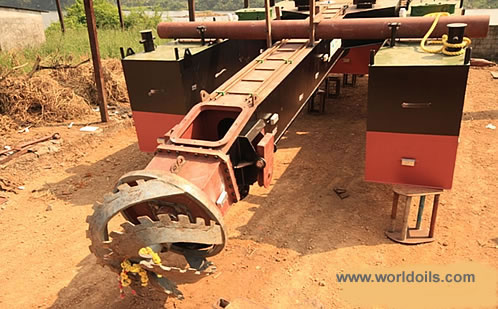

New CSD 250 Cutter Suction Mini Dredger

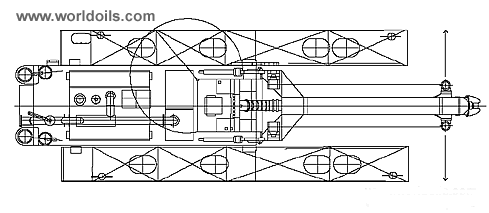

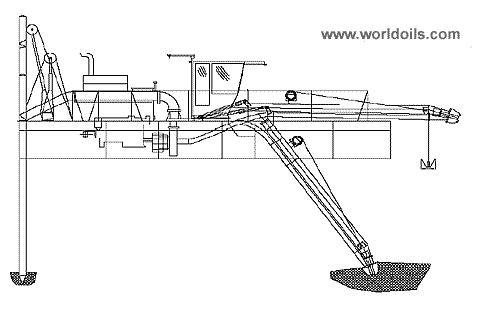

Principal Dimensions and Particulars
410 HP CSD-250

General -
Hull Length : 12.95 mtrs
Hull Width : 4.58 mtrs
Hull Depth : 1.5 mtrs
Length Overall : 15.85 mtrs
Height Overall (spuds installed and elevated) : 9 mtrs
Height overall (spuds, spud hoists, and muffer removed) : 4.0 mtrs

Digging Depth -
Maximum : 6 Mtrs (Option : 10 Mtrs)
Minimum : 1.0 Mtr

Prime Mover
Caterpillar Diesel Engine CAT 3406 B DITA : 306 Kw (410 hp)

Cutter -
Shaft Power : 30 Kw
Cutting Force : 1815 Kg
Cutter Speed : 0-39 Rpm
Cutter Diameter : 1100 mm

Swing Winches -
Wire size : 12 mm
Drum Capacity : 80 mtrs

Optional Equipment
Choice of air conditioning or heating, standby generator, anchor
booms, production assess-ing equipment, discharge pipeline &
components.

Specifications

Hull
Welded steel construction with ladder well forward.
Built in fuel and hydraulic oil tanks.

Main Dredge Pump Unit
Directly coupled with gear box and water cooled Caterpillar diesel
engine with Electric starter. Totally enclosed anti-friction radial and
thrust bearing with impeller mounted on Acme threads.

Hydraulic Power Package
Triple section hydraulic gear pump direct off the main Engine. Hydraulic
system includes three independent operating circuits; one for swing winch,
one for cutter, and one for spud and ladder hoist. All controls are PLC based
controls.

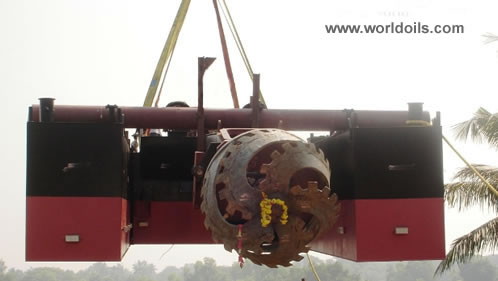

Excavating Module and Ladder
Cutter direct driven by gear type hydraulic motor. Spline connected to planetary
reduction gear. Maximum cutter force available at all speeds. Underwater excavating
module features short drive shaft with weight concentrated at the cutter for efficiency.

Ladder Hoist
Two no’s Double acting hydraulic cylinder

Power Swing Winches
Individual single direct line winches direct-driven by gear-type Hydraulic motors through
planetary reduction gear, Speed and reverse controls at operator’s Console. Heavy-duty
hydraulic system provides constant line pull at variable speed.

Electrical System
24 volt DC internal/external lighting and electrical system is powered by Main diesel
engine also with an option for shore connection.

Spuds and Spud Hoist
Heavy wall, Hydraulic steel spuds mounted in spud keepers at Stern, Spuds are hoisted
by vertical hydraulic cylinder and choker sling arrangement.

Assembly and Transportation
Can be accomplished in 3 days provided all tools, site Preparations and personnel are
available. The CSD-250 can be transported on two trucks with the spuds stowed on deck.

Price & terms : Please enquire using the email form below.
