DP1 Subsea Support Vessel
4400BHP DP1 Support Supply Vessel for Sale

Specifications

General
Class : ABS
Notation :
ABS Class+A1 (E) “Offshore Supply Vessel, Fire
Fighting Vessel Class 1” + AMS + DPS-1

Principal Particulars
Length Overall : 59.25m
Length Waterline : 46.00m
Breadth Moulded : 15.00m
Depth Moulded : 6.10m
Draft (max) : 4.60m
GRT/NRT : 1600/ TBA (approx)

Performance
Maximum Speed : 12.5 Knots
Economical Speed : 10 Knots
Type of Fuel : Marine Gas Oil
Bollard Pull : Nil

Fuel Consumption :
19 cbm /24 hours @ max speed
12 cbm /24 hours @ econ speed

Cargo Capacities
Deadweight : 1450 Ton (approx)
Deck Cargo : 500Ton (approx)
Deck Strength : 7 Ton/sqm uniform loading
Clear Deck Area : 350 sqm (approx)

Fuel Oil : 1000 sqm (approx)
Fresh Water : 250 sqm (approx)
Ballast/Drill Water : TBA sqm (approx)
Liquid Mud : Nil

Cement TankCement Tank : Nil
Freezer / Chiller : 10 cbm / 10 cbm
Foam / Detergent : 15 cbm / 15 cbm
Rig Chain Locker : Nil

Pumps
Fuel Oil : 1 x 150 cbm/hr @ 60 m head
Fresh Water : 1 x 100 cbm/hr @ 75 m head
SWB/Drill Water : Nil
Liquid Mud : Nil
Bilge/Ballast : 2 x 75 cbm/hr @ 40 m head
GS/Fire Pump : 1 x 75 cbm/hr @ 40 m head
Bulk Cement Compressor : Nil

Propulsion System
Main Engines : 2 x 2200BHP (1600kw) @ 1600rpm, Wartsila 8L20

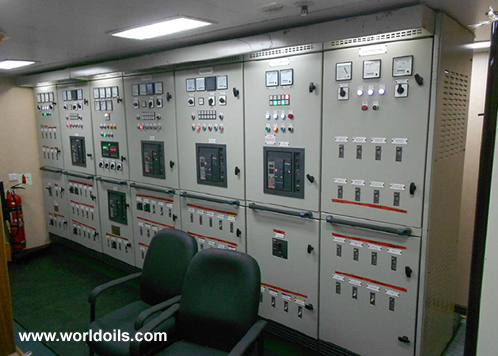

Main Generator : 3 x 350kw, 415V/3Ph/50Hz, CAT
Emergency Generator : 1 x 80kw, Cummins
Bow Thruster : 1 x 5 Ton Thruster, abt 350kw, Kawasaki KT-43B1
Steering Gear : Nil

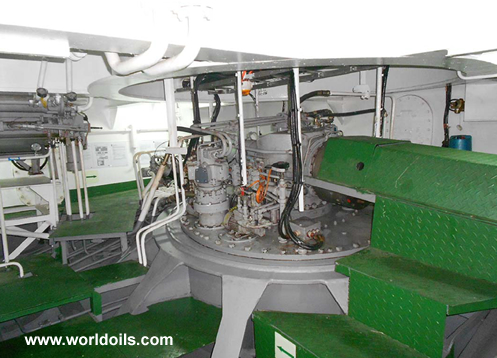

Z-Peller : 2 x Wartsila，Lips CS 225－S/WN-K
DP1 : MT or Kongsberg

Deck Equipment
Anchor Windlass 1 x electro hydraulic, 8 tons @12 m/min for 40mm
Drum Nil
Mooring lines 4 x 160M @ 157kn breaking strength
Tow line 1 x 190M long towline of min. 406KN breaking
Bow Anchors 2 x 1575 kg HHP anchor
Chains 440 m (L) x 40 mm (Dia), Grade U2
Capstan 2 x 5 mt @ 15 m/min electro hydraulic, Marine Equipment

Mooring winch :
4 x 60 mt @ 1000M, 32mm dia. wire
4 x 3 tonnes high holding type anchors

Deck Crane : 10 tons x 20m

Accommodation
4 x 1 berth cabin = 4
3 x 2 berth cabin = 6
10 x 4 berth cabin = 40
Total : 50

Hospital
Hospital 1 x 1 berth cabin = 1
All cabins fully air-conditioned & c/w attached washroom.

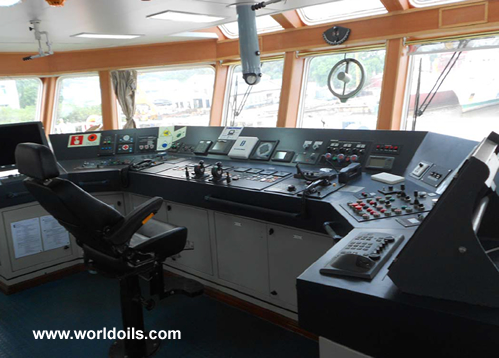

Radio & Navigation Equipment
GMDSS Area A3, consist of :
SSB 1 x JRC/Furuno
Inmarsat C 2 x JRC/Furuno
VHF Radio 2 x JRC/Furuno
Navtex ReceiverNavtex Receiver 1 x JRC/Furuno1 x JRC/Furuno

SART 2 x JRC/Furuno
EPIRB 1 x JRC/Furuno
Portable VHF Radios 3 x JRC/Furuno
Radar 2 x JRC/Furuno
Echo Sounder 1 x JRC/Furuno
DGPS 1 x JRC/Furuno
Gyrocompass 1 x JRC/Furuno/Anschutz/Tokimec

Autopilot 1 x JRC/Furuno/Anschutz/Tokimec
Magnetic Compass 1 x JRC/Furuno
Weather Fax 1 x JRC/Furuno
Speed Log 1 x JRC/Furuno
Wind Indicator 1 x JRC/Furuno
AIS 1 x JRC/Furuno

Joystick Kongsberg/MT
Vessel also fitted with PA Talkback System & Self-powered
Telephone.

Fire-Fighting Equipment and Anti-Pollution Equipment
External :
FiFi System Class 1 with water curtain all round
Fire Pump 2 x 1200 cbm/hr @ 11 bar
driven by front PTO ME
Monitors 2 x fire monitors
water/foam 1 x 300 - 1200 cbm/hr, FFS
water 1 x 1200 cbm/hr, FFS
Oil Dispersant System 2 x Cluster nozzles

Internal :
Emergency Fire Pump 1 x 25 m3/hr x 45m head
BA Recharing Comp 1 x 75 ltr/min @ 200 bar
CO2 system in engine room
Fire Detection & Alarm in living spaces and engine room.

Miscellaneous
Liferafts 6 x 20, SOLAS standard,ChinaMake
Rescue boat 1 x 6 men, c/w outboard engine, China Make ina Make
Oily Water Separator 1 x 1.0 m3/hr c/w 15ppm alarm
Water Maker 1 x 5 T/day, Sweden
Sewage Treatment Plant 1 x 60 men/day,China Make
Air cond and freezer Germany

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------------------------------------------
