Description :

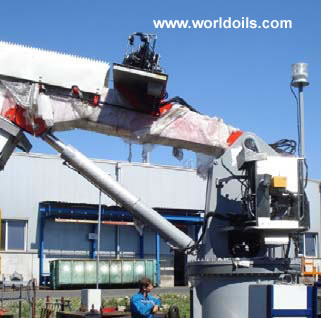

Palfinger Marine stiff boom marine crane

Total outreach 20 m

SWL 10,0 tons / 13,5 m - SWH 0,6 m
SWL 8,5 tons / 13,5 m - SWH 1,0 m
SWL 3,0 tons / 20 m - SWH 2,0 m
SWL 1,0 ton / 20 m - SWH 2,0 m man-riding-mode

Design criteria
‐ Min. design temperature -10 degrees Celsius
‐ Approved as Offshore Working Crane (Type A) with personnel handling
acc “Regulations for the Construction and Survey of Lifting Appliances : 1992”
‐ 1° heel / 1° trim
‐ Significant wave height see above
‐ LAT ~38 m

Stainless steel pipes and fittings
Stainless steel bolts and nuts
Stainless steel pipe clamps
Special treated piston rod for marine environment

Surface treatment
4 layer marine paint finish :
Traffic grey (RAL7042)
Pure white (RAL9010)
Traffic red (RAL3020)
Total dry thickness 650 micron, DIN EN ISO 12944 C5-M

Documentation
- 2 set of technical documentation :
* Palfinger Marine test certificate including 25% static overload
test for the crane
* Operators manual & spare parts manual in English language
* Instructions for installation
E-Protection Class
Electric components – outside – are IP56 (acc GL) or otherwise stated in
this spec.
Electric components – installed inside crane - e.g. E-motor are IP55

Safety devices for the crane standard version in combination with remote
control and winch

Winch kit incl. fully electro hydraulic limiting device
- SWL 10 tons at SWH 0,6 m
- Max. hoisting height ~48 m
* Below slewing ring, boom in horizontal position

Winch kit incl. fully electro hydraulic limiting device, including man-riding
function
- SWL 3 tons at SWH 2,0 m
- SWL 1 ton at SWH 2,0 m
- Max. hoisting height ~49 m
* Below slewing ring, boom in horizontal position

Bottom flange on mounting base, including mounting bolts, washers and
nuts

3x Offshore (Sea state) overload switch

Acoustical and optical overload warning system

Palfinger Marine - manually and automatically Overload Protection
System
- PALOPS is similar to MOPS / AOPS
- PALOPS protects the crane from overload caused by a supply a
vessel. The system is either operating manually and / or automatically.
The general function is to pay wire of the winch as long as overload is
present.
- lateral pull is not taken in consideration

Emergency power supply via battery pack.
Radio remote control system for 4-functions
Transformer unit from 400/440V AC to 24V DC/10A

Electro hydraulic slewing limitation max. 375°.

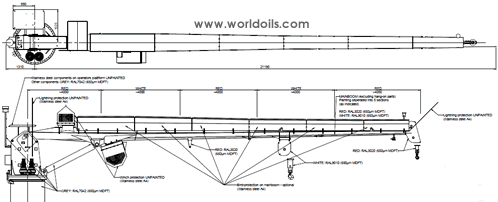

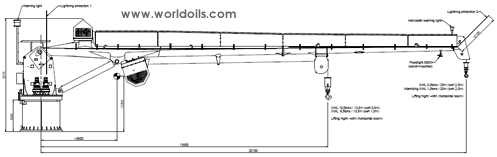

Dead point acc GA drawing.

Emergency power pack
Installed at the crane.
Performance : ~3 kW, 24 V DC
Oil flow : ~6 l / min

Power supply via battery pack : available min. 15 minutes

Electric terminal box
Protection class IP65

E-motor supplied with standstill heating, power supply from electrical
terminal box

Stainless steel piston rod, instead of standard version

Additional slewing gear

Central greasing point
- Greasing block at crane column
- Greasing lines to pins on pulley head/sheaves
- Greasing lines in stainless steel

Working light
1x500 W (230 V / 50 Hz) working light mounted on main boom

Bird droppings protection on upper side of boom
Protection cover for MR winch
Protection cover for main winch
Lifting angle indicator on main boom

Obstruction light type LG 74-04
- Installed at boom tip
- Not ex-proof
- 24V DC
- Type A:> 10 cd red according ICAO
- Horizontal 360°

Approach light type AOL303.2006-H/O
- Mounted on standing platform
- 24V DC
- According ICAO Annex 14, part II, fig. 5-8 and 5-9
- Power supply from site (Platform)

Lighting protection from boom tip to lower side of the base
- No international standard is fulfilled

GL certificate
Crating
