Floating Cranes for Sale
Floating Cranes - 100MT - for Sale
100MT Floating Cranes for Sale
Used Floating Cranes for Sale
1970 built Floating Cranes for Sale

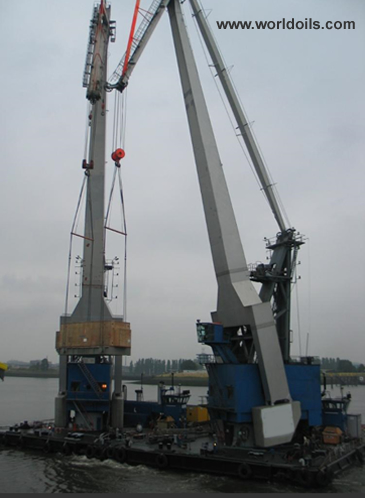

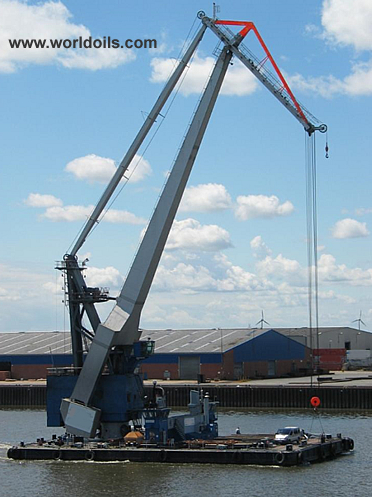

Description
Each of the floating cranes can lift loads up to 100 mt, transport them on water and

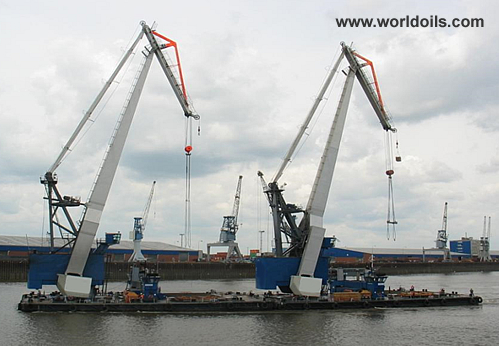

precisely position them. Combining the two  cranes, project cargo and heavy lift
cargo of up to 200 mt can be handled.  Being more flexible than mobile  or port
cranes, they can handle any type of heavy and / or over-sized cargo. The quay is not
being occupied by waterside operations of the floating cranes. On the cranes’s
cargo area, loads can be stowed and transported over longer distances before
safely being offloaded at their destination.

General
Built : 1970
Classification : SUK 2003

Main Parameters
Lifting capacity per crane : 100mt
2 cranes combined : 200mt
Dimensions (LxHxW) : 40 x 22.2 x 4m
Cargo area on deck : 20 x 15m
Draught : approx. 2.50m
Engine : 2 x 650 PS IHP Schottel
Support hook : up to 10 mt
Lifting material : all aboard

Operating Speed
Up to 35t : 30m/min
Up to 100t : 10m/min

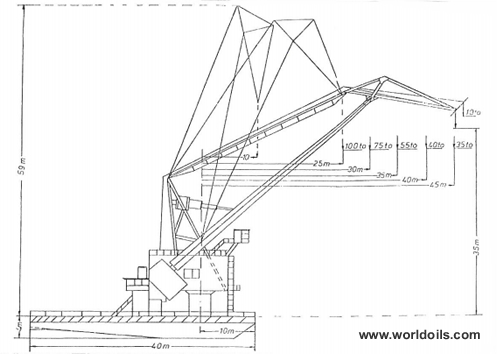

Loadsheet
Weight / Maximum outreach from frontside / Maximum lifting height from deck
35 mt / 35 m / 35 m
40 mt / 30 m / 35 m
55 mt / 25 m / 35 m
75 mt / 20 m / 35 m
100 mt / 15 m / 35 m

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
---------------------------------------------------------------------
