Lattice Boom Offshore Crane
40/60T Lattice Boom Offshore Crane for Sale
60T Lattice Boom Offshore Crane for sale
Offshore Crane for Sale
40 Ton Lattice Boom Offshore Crane for sale

Technical Specification
Design rules : API-2C Offshore
Classification Society : DNV

Hazardous Area Classification : Zone 2 IIA-T3
Design temp. : +10°C
Operating temp. : +14 to 36°C
Roll/Pitch : 0,5 / 0,5 deg

Fem Classification
Appliance group : A4-Q2-U4
Machinery group : M4-L2-T4

Power supply 1 : 480V-60Hz-3Ph
Power consumption 1 : 14,5 kW
Power supply 2 : 240V-60Hz-1Ph
Power consumption 2 : 1,2kW

Total weight : 168T

Main Hoist
SWL max. : 60 / 40 T
No. of falls : 3 / 2
Outreach max. : 45,7m
Outreach min. : 9,0m
Wave height max. : 2,5m

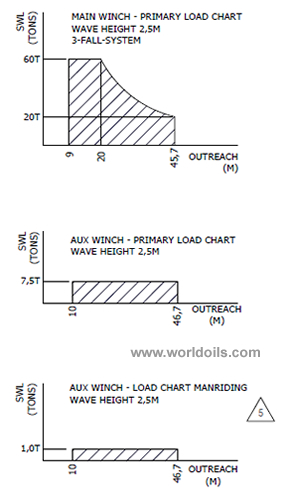

Load / outreach : see load chart
Hook travel : 70m
Hoist speed (3 falls, 60T) : 0-22 m/min
Hoist speed (2 falls, 40T) : 0-33 m/min

Aux Hoist
SWL Max. : 7,5T
Manriding : 1,0T
No. of falls : 1
Outreach max. : 46,7m
Outreach min. : 10,0m
Wave height max. : 2,5m
Load/outreach : see loadchart
Hook travel : 70m
Hoist speed : 0-60 m/min

Slewing
Slewing sector cont. : 360deg
Slewing speed : 0-1rpm

Luffing time
From max to min :
No load; 45,7m to 9m : 50sec

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------
