Research Submarine for Sale
Mini Manned Submarine for Sale

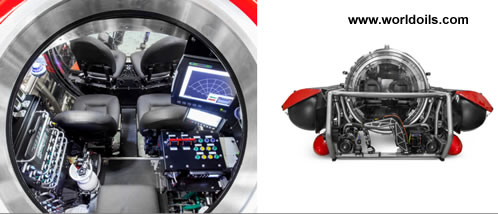

5 Persons Underwater Research Submarine
Underwater Sightseeing Vehicle
Research Submarine 100mts - 300mts for Sale

General Characteristics
Occupants : 1 pilot and 4 passengers
Maximum operating depth :
100 metres / 330 feet up to
300 metres / 1,000 feet
Operational autonomy : up to 8 hours, optional up to 16 hours
Type : Dry, 1 atmosphere submersible
Classification : Germanischer Lloyd

Dimensions and Weight (Starting From)
Dimensions L X B X H : 514 cm x 376 cm x 227 cm
Storage width : 300 cm (deflated tanks)
Weight (ex. passengers) : 7000 kg (salt water)
Maximum allowable payload : 550 kg (salt water)

Pressure Hull
Pressure hull material : Acrylic and steel
Hatch type : Top-hatch

Propulsion
Propulsion type : Electrical
Propulsion horizontal :
2 x 2.0 kW thrusters (upgrade to 5.0 kW available)
Propulsion vertical :
2 x 2.0 kW thrusters (upgrade to 5.0 kW available)
Propulsion lateral : Optional: 2 x 1.2 kW thrusters
Surface speed : 4 knots
Underwater speed : 2.5 knots

Life Support Systems
Oxygen system : Continuous flow
Mission oxygen capacity : 3 - 5 litre (quick exchange)
Emergency oxygen capacity :
2 x 20 litre @ 200 bar + 2 x 13.4 litre @ 200bar
Carbon dioxide removal : 8 hours with calcium hydroxide
Survival period : 96 hours
Emergency CO2 removal : Lithium hydroxide blankets
Autonomous breathing device : 5
Life support monitoring :
2 independent life support monitors (O2 - CO2)

Ballast & Buoyancy Systems
Number of ballast tanks : 4
Main ballast tank capacity : 3400 litre
Compressed air capacity : 4 x 50 litre @ 200 bar
Hydraulically releasable weight : 100 kg
Buoyancy tank : 100 litre

Power Capacity
Total power capacity : Standard 21.6 kWh optional 43.2 kWh
Battery type : High capacity lithium-ion
Propulsion system capacity :
Std: 2 x 130VDC battery packs - 15.6 kWh
Opt: 4 x 130VDC battery packs - 31.2 kWh
House system capacity :
Std: 2 x 24VDC battery packs - 6 kWh
Opt: 4 x 24VDC battery packs - 12 kWh
Charging (optimal cycle) : 4 - 6 hours
Emergency battery : 96 hours for critical systems

Navigation, Communication, Auxiliary
Air conditioner system : 7,000 BTU
Underwater communication :
Single sideband acoustic telephone, 25 kHz
Surface communication : VHF handheld unit
Navigation : Echosounder, magnetic compass
Information System :
Alarm system, battery status, thruster status,
sensor status, internal pressure, depth,
electrical insulation monitoring, water ingress
sensors, Freon sensor, buoyancy tank
level indicator, internal and external temperature

Safety equipment :
Pinger locator Beacon system.
Emergency releasable buoy, maximum depth protection,
dead-man switch, fire extinguisher, external air connection for
diver-assisted ascent, Xenon flasher

Other :
Protective cover for acrylic viewport,
magnetic rubber protector ring mating
flange, checklists and manuals

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------------
