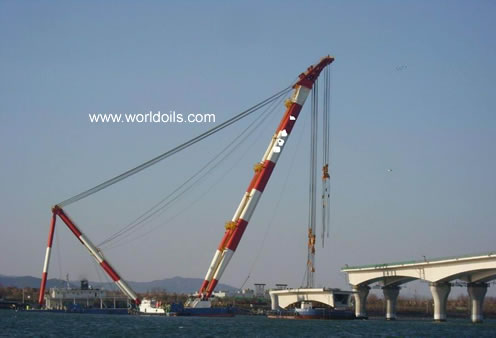

1000 Ton Floating Crane for Sale

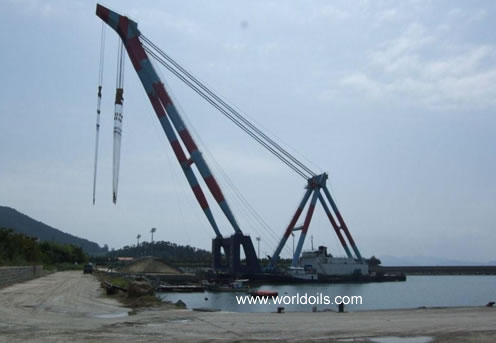

Used Floating Crane

General Description
This Barge is S.W.L 1,000 ton steel crane barge for the "A"-type boom lifting
system and back tower to be provided at fore end and after end of the barge
respectively as shown on the "General Arrangement" plan.
It is the Builder's responsibility that the Barge is designed, built and outfitted
with machinery and equipment in compliance with all pertinent Rules and
Regulations.
The Builder shall furnish all items required for the completion of the Barge.
It is to be understood that anything not mentioned in the Specifications but
which are usual, or necessary in accordance with best current marine
practice, reasonable requirements of the Owner's supervisor and/or required
by the Classification Society or Regulatory Bodies listed herein, shall be
supplied and/or equipped by the Builder.
If any inconsistency is found among Contract, Specifications and accompanying
plans, the priority of interpretation shall be governed as following order.

General Arrangement
The Barge shall have a complete upper deck. The bow structure shall be made in
a stream-lined form.
The space under upper deck shall be divided 3 longitudinal watertight bulkheads
and 6 transverse watertight bulkheads as shown on the General Arrangement Plan.
From fore end No.1 W.B.T(P/C/S), No.1 Void(p/c/s), No.2 void(p/s),
machinery space(c), F.O.T(in side, p/s), No 3. Void(out side, p/s)
F.W.T(out side (p/s), No.4 void(p/s), No2.W.B.T(p/c/s), No.3 W.B.T (p/c/s).
As will on upper deck arrange at crane boom, boom bed, main winch, aux. winch,
luffing winch, anchor windlass, mooring winch, anchor winch, ladder winch.

Principal Particulars
S.W.L 900 Ton Floating Crane Barge
Navigation area: Coaster Area
Classification: + KRS OC - BARGE, PONTOON/CRANE + KRM OC

Rules and regulation and certificate
(1) Rule and Regulation of the Classification Society
(Hereinafter called as "Rules").
 - Rule for Classification of Steel Ship.
 - Rule for Classification of Steel Barge.
 - Rule for Classification of Towing Survey of Steel Barge.
(2) International Convention of Load lines, 1966 and Amendments.
(3) International Conference on Tonnage Measurement of Ships 1969.
(4) Maritime Regulation of Concerned Government.
(5) International Regulation for Prevention Collision at Sea 1972 and 1982
Amendment.
(6) Korea Maritime Regulation.

Principal Dimensions
- Length over all (L.O.A) abt. 78 m 000
- Length between perpendiculars (L.B.P) 78 m 000
- Breadth (Moulded) 30 m 000
- Depth (Moulded) 4 m 800
- Draft (D.L.W.L)) 3 m 500
- Scantling Draft (Moulded) 3 m 600
- Gross Tonnage abt. 3340 ton

Deck Height
- Upper Deck - No.1 Deck House 4 M 000
- No.1 Deck House - No.2 Deck House 2 M 500

Tank Capacity (100% Full)
- Fuel Oil Tank: Abt. 170.0 M3
- Fresh Water Tank: Abt. 410.0 M3
- Water Ballast Tank: Abt. 4060.0 M3

Complements
Complement: Nil

Anchor and Mooring
1) Anchor
Item : Windlass
Position : Upper Dk(Aft)
Type : Hyd.Type
Capacity : 18tx12m/min
Qty : 1

Windlass to be Gypsy wheel, Wire drum, Warping end each 1 set and Brake,
Clutch.

2) Anchor, Anchor Chain and Mooring Rope
- Bow Anchor: 4890 Kg X 1 Ea
- Anchor Chain (Grade 2): 62 Φ X 275 M X 1 ea
- Tow Line (S.W.R. 6X24): 30 Φ X 190 M X 1 ea
- Hawser (P.P. Rope): 40 Φ X 160 M X 4 ea
- Working Anchor: 6000 Kg X 4 each with chain & wire rope

3) Winches
Item : Main Winch
Capacity : 26Tx18Mx40Φx955Mx2Dr
Qty : 2
Location : Upper Dk (Aft, P·S)

Item : Sub. Winch
Capacity : 21Tx12Mx40Φx730Mx2Dr
Qty : 2
Location : “ ” ( “ )

Item : Luffing Winch
Capacity : 40Tx19Mx48Φx1011M
Qty : 2
Location : “ ” ( “ )

Item : Mooring Winch
Capacity : 12Tx15Mx36Φx500M
Qty : 2
Location : Upper Dk (Mid, P·S)

Item : Anchor Winch
Capacity : 18Tx12Mx50Φx500M
Qty : 2
Location : Upper Dk (Mid, P·S)

Item : Work Winch
Capacity : 5Tx20Mx26Φx250M
Qty : 2
Location : Upper Dk (Mid, P·S)

Item : Aux. Winch
Capacity : 7Tx20Mx28Φx250M
Qty : 2
Location : “ ” (Aft, For)

Item : General Winch
Capacity : 5Tx20Mx26Φx250M
Qty : 4
Location : “ ” (Aft, For)

4) Mooring Fittings
Item : Towing Bracket
Qty : 4
Size : N.N68
Material : S35C/Ss400
Remarks : Jis F-2029 Type

Item : Bollard
Qty : 10
Size : 400A
Material : Spps/Ss400
Remarks : Jis F-2001 Type

Item : 360° Revolving Fair Leader
Qty : 4
Size : 350Φ
Material : Fc20/Ss400
Remarks : Maker Supply

Item : 3-Roller Fair Leader
Qty : 2
Size : 300Φ
Material : Fc20/Ss400
Remarks : Jis F-2014 Type With Hori. Roller

Item : Deck End Roller
Qty : 1
Size : 300Φ
Material : Spps/Ss400
Remarks : Maker Supply

Item : Hor. Guide Roller
Qty : 16
Size : 1000L
Material : Spps/Ss400
Remarks : Jis F-2022 Type

Item : Pa1-R Stand Roller
Qty : 2
Size : 300Φ
Material : Fc20/Ss400
Remarks : Jis F-2024 Type

Item : Chain Cable Stopper
Qty : 1
Size : 62Φ
Material : Fc25
Remarks : Jis F2016-64 For Aft. Anchor Winch

Item : Panama Chock
Qty : 4
Size : 500L
Material : Sc42
Remarks : Jis F-2017 Ac Type

Item : Anchor Roller
Qty : 2
Size : 680Φ
Material : Fc20/Ss400
Remarks : Maker Supply

Name : Diesel Engine For Hyd. Power Unit
Type : 4-Cycle. 12-Vee Turbocharge D/Eng.
Qty : 3
Capacity : 831Hpx1800Rpm
Remarks : Catapillar (3412Dita)

Name : Hyd. Power Unit
Type : Gear Driven Type
Qty : 3
Capacity : Maker Standard

Name : Diesel Generator
Type : 4-Cycle. Single Act. Direct Injection
Qty : 2
Capacity : 270Hp×1800Rpm ×76Kw
Remarks : Doosan (Pnl)

Name : Air Compressor
Type : 1-Stage Air Cooling
Qty : 1
Capacity : 28M³/Hx9Kg/×3.7Kw W/Air Tk.(Abt.170)
Remarks : Auto Start /Stop

Name : Sewage Treatment
Type : Bio Aerob Type Automatic Control
Qty : 1
Capacity : 28P/Day Flow Rate : 2150ℓ/Day

Name : Oily Water Separator
Type : Filtering Type
Qty : 1
Capacity : 1.0M³/H×0.4Kw Below 15Ppm

Name : Ballast Pump
Type : Hori. Cent.
Qty : 2
Capacity : 350M³/H×20M×30Kw

Name : G.S & Bilge Pump
Type : Hori. Cent. S/Prim'G
Qty : 1
Capacity : 80M³/H×35M×22Kw

Name : G.S & Bilge Pump
Type : Hori. Cent. S/Prim'G
Qty : 1
Capacity : 80M³/H×35M×22Kw

Machinery Room Equipment
Name : F.O Trans. Pump
Type : Hori. Gear
Qty : 2
Capacity : 5M³/H×3Kg/㎠×2.2Kw
Remarks : Auto Start / Stop

Name : Sludge Pump
Type : Hori. Gear
Qty : 1
Capacity : 5M³/H×3Kg/㎠×2.2Kw
Remarks : Auto Start / Stop

Name : Fresh Water Hydrophore Unit
Type : Vert. Cent. With 100L Tank
Qty : 1
Capacity : 3M³/H×30M×2.2Kw
Remarks : Auto Start / Stop

Name : Sea Water Hydrophore Unit
Type : Vert. Cent. With 100L Tank
Qty : 1
Capacity : 3M³/H×30M×2.2Kw

Name : Bilge Pump For O/W Separator
Type : Piston Type
Qty : 1
Capacity : 1.0M³/H×20M×0.4Kw

Name : Hyd. Oil Cool. Pump
Type : Hori. Gear
Qty : 1
Capacity : Maker Standard

Name : Hyd. Oil Cooler
Type : Shell & Tube Type
Qty : 1
Capacity : Maker Standard

Name : F.O Serv. Tank
Type : Portable, Ss400
Qty : 1
Capacity : Abt. 3.0㎥

Name : Sludge Tank
Type : Portable, Ss400
Qty : 1
Capacity : Abt. 6.0㎥

Name : Drain Tank
Type : Portable, Ss400
Qty : 1
Capacity : Abt. 0.2㎥

Name : Hyd. Oil Tank
Type : Portable, Ss400
Qty : 1
Capacity : Maker Standard

Crane Equipment

1) Lifting Hooks
Main lifting hooks 450Ton x 2 Ea (Max. Lifting Height: 81.83 M At 65°)
Aux. lifting hooks 225Ton x 2 Ea (Max. Lifting Height: 88.69 M At 65°)

2) Main Boom
Two(2) pipe “A" type boom

 (1) Dimensions
- Boom Length: 95.00 M
- Outreach (65° Inc. ): 26.91 M
- Outreach (60° Inc. ): 34.00 M
- Standard Working Angle: 65°
- Topping Angle (Min.): 30°
- Topping Angle (Max.): 65°

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where
needed.

The details mentioned above are believed to be accurate but are not guaranteed.

 ----------------------------------------------------------------------------------------------------------------------
