A-frames - 250 Ton - for sale - Worldoils Oil, gas and offshore equipment marketplace

A-frames - 250 Ton - for sale

Equipment ID: 1478
Equipment name: A-frames - 250 Ton - for sale
Category: Miscellaneous Equipment
Specifications: A-frames for Sale
250 ton capacity A-frames for Sale
Two A-frames for Sale

Description

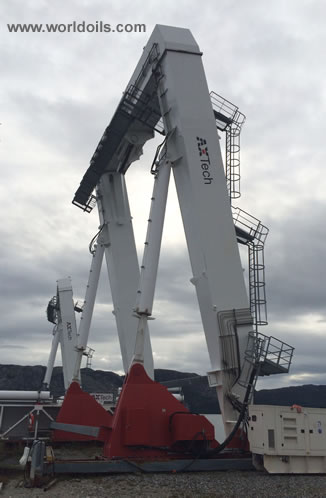

Two identical 250T A-Frames earlier installed on two AHTS vessels.
Never in commercial use, only tested and since then stored onshore
with regular maintenance.

Each A-frame can be delivered with 150 MT AHC systems. The In-Line
Active Heave Compensation system is a linear, cylinder based design,
utilizing cylinders to compensate for vertical vessel movements within
specifications.

Capacity : 250 mT
Year of manufacture : 2010
Manufacturer : AxTech, Norway
Overall width : 18 meter
Total height : 22 meter
Free height (light opening) : 19.2 meter
A-frame lifting height : 16.6 meter

Approx total weight : 180 ton
Hydraulic pressure : 280 bar
Hydraulic supply : Max. 1000 l/min
Speed full stroke : Approx. 300 seconds
Location : Western Norway
Condition : Very good
Sales terms : “As is, where is”

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------------------------------
Search words (for official use only) :
2010 Built A-frames for Sale
A-frames for Sale - 250 Ton capacity
A-Frames - 2010 Built - For Sale
A-frames with 150T AHC systems for Sale
250 Ton capacity A-frames for Sale
-----------------------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - A-frames - 250 Ton - for sale
