Refurbished Offshore Pedestal Crane for Sale

Equipment ID: 1485
Equipment name: Refurbished Offshore Pedestal Crane for Sale
Category: Cranes / Lifting equipment
Specifications: Offshore Pedestal Crane for Sale
OS-435 Refurbished Offshore Pedestal Crane for sale

The crane is completely refurbished and complies with API-2C

Specifications

• Hydraulic pedestal crane model : National OS-435 H.D
• Original year of manufacture : 1981
• Boom length : 42.675m (140ft)
• Weight : 105,400 Lbs / 47, 810Kg (incl. Boom)
• Main hoist capacity : 28,875Kg @ 19.5m (platform duty)
• Whip hoist capacity : 7,275Kg @ 46.5m (platform duty)

Overhaul included :
- Full engine overhaul including Dyno Test
- Triple Gearbox refurbished
- Booms & A-frame blasted, painted & NDT inspection completed
- Bridle Assembly inspected and NDT
- All sheaves & shafts inspected and NDT
- Slew bearing refurbished and NDT
- Boom, Main and Whip rope winches inspected
- Brake band linings renewed
- All brake cylinders refurbished and pressure tested including Pawl cylinder
- Installation of slewing limit swit ches (change to original (OEM) spec)
- New hydraulic hoses installed and pressure tested
- Hydraulic pumps and motors refurbished and performance tested
- New wire ropes (Main & Whip hoist) and Pendant lines installed
- Refurbished operators cabins with new gauges , and air conditioning unit
- New Mipeg Rated Capacity Indicator (RCI) System
- Painted to marine specification

• Rated for Zone 2 safe operations
• MOM certified (Singapore Ministry of Manpower)
• All structural inspection reports available
• Installation / change out services available

Available Immediately

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------------
Search words (for official use only)
Offshore Pedestal Crane for Sale
National OS-435 H.D model Pedestal Offshore Crane - For Sale
140ft Offshore Pedestal Crane for Sale
Refurbished Offshore Pedestal Crane for Sale
1981 built Offshore Pedestal Crane
National OS-435 Refurbished Offshore Pedestal Crane for sale
---------------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Refurbished Offshore Pedestal Crane for Sale

Images

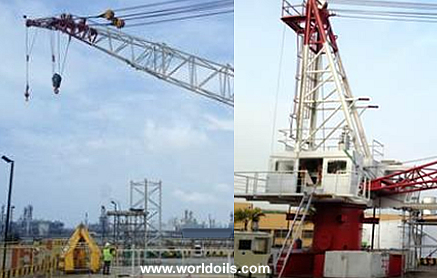

National OS-435 H.D model Pedestal Offshore Crane
