E.2.1.   Alternate  Hydraulic Connector :
Alternate connector available : Yes
Connector make/model : Cameron HA
Adaptor available : Yes

E.2.2.   Hydraulic Wellhead Connector :
Size (inches) : 18-3/4 in and 16-3/4 in
Make/Type : Vetco / H-4
Working pressure : 10,000 psi
Hot stab for underwater intervention : Yes
Spare connector same type : Yes

E.2.3.   Ram Type Preventers :
Preventers : 2 each
Quantity : 18-3/4 in
Bore size : 10,000 psi
Working pressure : Cameron
Make : U-II Double Cavity
Type - single/double : Double
Ram locks : Yes ( wedge lock )
Preventers connection type - top : API Hubbed
Preventers connection type - bottom : API Hubbed
Side outlets : Yes
Size (inches) : 3-1/16 in
Connection type
- Pipe rams : API Hubbed
Quantity  / Size
- Blind/shear rams : 1 set / 5 in Fixed
Quantity : 1 set
- Variable rams : 1 set
Quantity / Size Range : 2 sets / 3-1/2 in to 7-5/8 in

E.2.4. Stack Configuration (Blind/Shear/Pipe/Variable) :
Shear rams : Blind / Shear
Upper rams : 3 ½’’ x 7 5/8’’ VBR
Middle Rams : 3 ½’’ x 7 5/8’’ VBR
Lower rams : 5’’ Fixed
- Position of side outlets-kill
Upper : Between Upper and Lower Rams
Lower : Below Lower Rams
- Position of side outlets-choke
Upper : Between Shear and Upper Rams
Lower : Between Middle and Lower Rams

E.2.5. Annular  Type Preventer On Stack : None

E.2.6. Mandrel :
Make/Type : Vetco H-4
Size (inches)  : 18-3/4 in

E.2.7. Fail-Safe Hydraulic Valves (Choke & Kill) :
Make / Type : Cameron / MCS FLS 10K
Quantity on each side outlet  : 2
Useful capacity per accumulator - w/o pre charge : 11 gal
Bottle working pressure (psi) : 3,000 psi

E.2.9. Hydraulic Control  Pod/Receptacles :
Quantity : 2
Redundancy (%) : 100
Color coded : Yes
Remote regulation of operating pressure for functions requiring lower operating pressure : Yes
Spare control pod : Yes

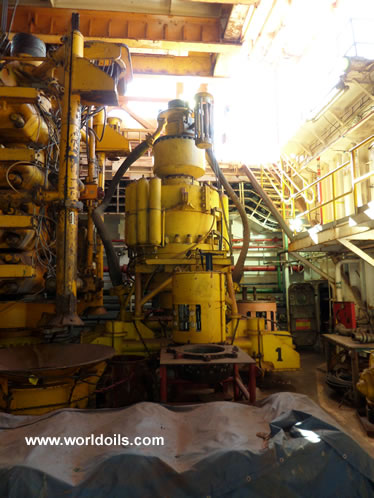

E.3. Primary Lower Marine Riser Package (from bottom to top)

E.3.1. Hydraulic Connector :
Make/Type : Vetco / H-4
Size (inches) : 18-3/4 in
Working pressure : 10,000 psi
Hot stab for underwater intervention : Yes
Spare connector same type : Yes

E.3.2. Annular  Type Preventer (LMRP) :
Size : 18-3/4 in
Working pressure : 5,000 psi
Make/Type : Shaffer / SBOP dual annular

E.3.3 Flex Joint :
Make/Type : Oil-State / Model 2.0KSI
Size : 18-3/4 in
Working pressure : 5,000 psi

E.3.4.   Riser Adapter :
Make/Type : Vetco / MRC-6
Size (inches) : 21 in Outside Dia.

E.3.5.   Connection Lines to Riser :
Type (rigid loops, coflexip, etc) : Coflexip

E.4. Secondary BOP Stack : None

E.5. Secondary Lower Marine Riser Package : None

E.6. Primary Marine Riser System :

E.6.1. Marine Riser Joints :
Make/Model : Vetco / MR-6C
OD : 21 in
ID : 19- ¾ in
Wall thickness : 5/8 in
Average length of each joint : 50 ft
Quantity : 40
Pipe material : X-80
Minimum yield strength : 80 psi
Type riser connectors : MR-6C
Dogs : 6

E.6.2.Telescopic Joint :
Make/Type : None
Size - ID
Stroke
Double seals
Spare telescoping joint
Rotating support ring for riser tensioners / connection points

E.6.3. Kill/Choke Lines :
Quantity : 2
Outside diameter : 6 5/8’’
Inside diameter : 3 in
Working pressure : 10,000 psi

E.6.4. Booster  Lines :
Quantity : 1
Outside diameter (inches) : 4 -1/4 in
Inside diameter (inches) : 3 -3/4 in
Working pressure (psi) ; 3,000

E.6.5. Hydraulic Supply Lines : None

E.6.6.   Upper Ball (Flex) Joint :
Make/Type : Regan/DR-1
Size : 30 in
Maximum deflection (degree) : 12 deg
Spare upper ball (flex) joint : Yes

E.6.7. Buoyancy Modules (if fitted)
Quantity of buoyed riser joints : 18
Riser tube OD (inches) : 21 in  OD
Of buoyed riser joints (inches) : 44 in
Length of each module (ft) : 50 ft
Rated water depth (ft) : 3,000 ft

E.6.8. Marine Riser Spider :
Make/Type : None

E.6.9. Marine Riser Gimbal : None

E.6.10. Riser Handling Tools : None

This is the diverter type also

E.1   Diverter BOP :

Make/Type : Vetco VETCO/KFDS-3 Tenerife Spain R6000
Max bore size (inches) : 49-1/2 in
Working pressure (psi) : 3,000psi
Number of diverter outlets : 1
Outlet OD (inches) : 10 in
Insert packer size ID (inches) : Multiple onboard

Price & terms : Please enquire using the email form below.
