CKE2500 Kobelco Crawler Crane for sale

Equipment ID: 1501
Equipment name: CKE2500 Kobelco Crawler Crane for sale
Category: Cranes / Lifting equipment
Specifications: CKE2500 Kobelco Crawler Crane
Hydraulic Crawler Crane for sale
250T CKE2500 Kobelco Crawler Crane

Specifications

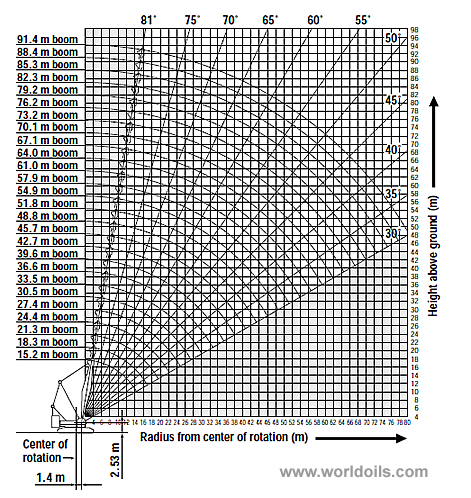

Main Boom
Max. Lifting Capacity : 250 t/4.0 m
Max. Length : 91.4 m

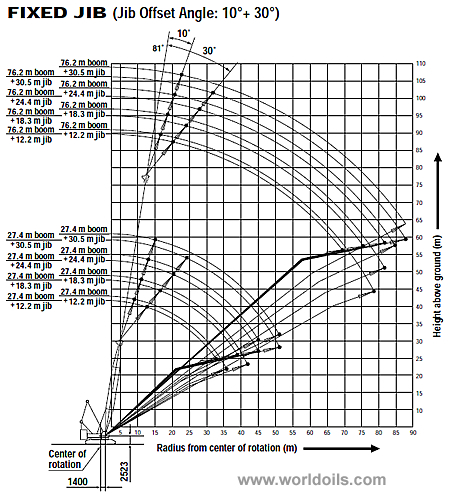

Fixed Jib
Max. Lifting Capacity : 26.8 t/9.8 m
Max. Combination : 76.2 m + 30.5 m

Luffing Jib
Max. Lifting Capacity : 70 t/9.8 m
Max. Combination : 61.0m + 51.8 m, 51.8 m + 61.0 m
Luffing Angle : 63° ~ 88°

Main & Aux. Winch
Max. Line Speed : 110 m/min (1st layer)
Rated Line Pull : 132 kN (13.5 tf)
Max. Line Pull : 245 kN (25 tf)
Wire Rope : 25 mm
Wire Rope Length : 480 m (Main) 385 m (Aux.)
Brake Type : Wet-type multiple disc brake
Free-Fall : Option

Working Speed
Swing Speed : 2.1 min-1 (rpm)
Travel Speed : 1.1/0.7 km/h

Power Plant
Model : Mitsubishi 6D24-TLU2D
Engine Output : 235 kW/2,000 min-1 (rpm)
Fuel Tank Capacity : 400 liters

Hydraulic System
Main Pumps : 4 variable displacement
Max. Pressure : 30.9 MPa (315 kgf/sq.cm)
Hydraulic Tank Capacity : 550 liters
Self-Erection Device : Standard

Weight
Operating Weight : Approx. 208 t
Counterweight : 80.6 t (Upper), 20.0 t (Lower)
Transport Weight : 44.9 t (Main machine)
Ground Pressure : 95 kPa (0.97 kgf/sq.cm)

We also have used cranes.

Additional information regarding this equipment will be shown on request

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------
