Kobelco 7120-2F Crawler Crane for sale

Equipment ID: 1502
Equipment name: Kobelco 7120-2F Crawler Crane for sale
Category: Cranes / Lifting equipment
Specifications: Kobelco 7120-2F Crawler Crane for sale
120T Hydraulic Crawler Crane for Sale

Main Specifications

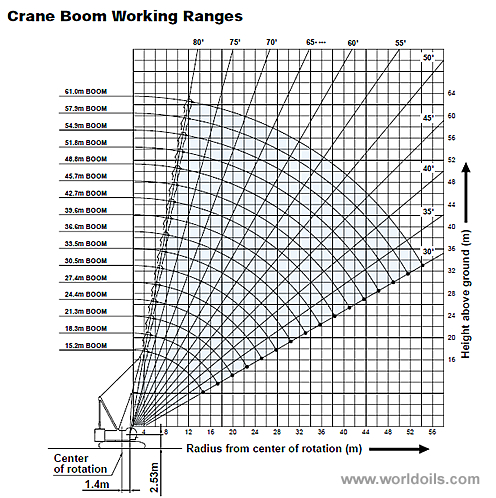

Crane Boom
Max. Lifting Capacity : 120 t/5.0 m
Max. Length : 61.0 m

Long Boom
Max. Lifting Capacity : 24 t/16.0 m
Max. Length : 79.2 m

Fixed Jib
Max. Lifting Capacity : 12 t/28.0 m
Max. Combination : 61.0 m + 30.5 m

Tower Jib
Max. Lifting Capacity : 20 t/15.0 m
Max. Combination : 51.7 m + 44.2 m
Tower Angle : 60° ~ 90°

Main & Aux. Winch
Max. Line Speed : 120 m/min (1st layer)
Rated Line Pull (Single-line) : 118 kN {12.0 tf}
Wire Rope Diameter : 26 mm

Wire Rope Length :
Crane - 275 m (Main) 255 m (Aux.)
Tower - 290 m (Main) 145 m (Aux.)

Brake Type :
Spring set hydraulically released multiple disc brake(Negative)

Free-Fall Brake Type : Wet-type multiple disc brake (Optional)

Working Speed
Swing Speed : 2.1 min-1 {rpm}
Travel Speed : 1.3/0.9 km/h

Power Plant
Model Hino P11C-UN
Engine Output : 247 kW/2,000 min-1 {rpm}
Fuel Tank Capacity : 400 liters

Hydraulic System
Main Pumps : 4 variable displacement
Max. Pressure : 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity : 535 liters

Weight
Operating Weight* : Approx.120 t
Ground Pressure* : 94 kPa {0.96 kgf/cm2}
Counterweight : 52.3 t
Transport Weight** : Approx. 36.8 t

* Including upper and lower machine, 52.3 ton counterweight, basic boom, hook,
and other accessories.
** Base machine with boom base, gantry, carbody, lower spreader and upper
spreader.

We also have used cranes.

Additional information regarding this equipment will be shown on request

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------
