Kobelco 7120S Crawler Crane for sale - Worldoils Oil, gas and offshore equipment marketplace

Kobelco 7120S Crawler Crane for sale

Equipment ID: 1503
Equipment name: Kobelco 7120S Crawler Crane for sale
Category: Cranes / Lifting equipment
Specifications: Kobelco 7120S Crawler Crane for sale
120T Kobelco 7120S Crawler Crane for Sale

Main Specifications

Crane Boom
Max. Lifting Capacity : 120 t x 5.0 m
Max. Length : 61.0 m

Fixed Jib
Max. Lifting Capacity : 12.0 t x 28.0 m
Max. Combination : 61.0 m + 30.5 m

Long Boom
Max. Lifting Capacity : 24.0 t x 16.0 m
Max. Length : 79.2 m

Tower Jib
Max. Jib Length : 44.2 m
Max. Combination : 51.7 m + 44.2 m

Main & Aux. Winch
Max. Line Speed (1st layer) : 120 m/min
Rated Line Pull (Single line) : 118 kN {12.0 tf}
Wire Rope Diameter : 26 mm
Wire Rope Length : 275m (Main), 255 m (Aux.)
Brake Type (Free fall) : Wet-type multiple disc brake (Optional)

Working Speed
Swing Speed : 2.1 min-1{rpm}
Travel Speed : 1.3/0.9 km/h

Power Plant
Model : HINO P11C-VH
Engine Output : 271 kW/1,850 min-1
Fuel Tank : 400 liters

Hydraulic System
Main Pumps : 4 variable displacement
Max. Pressure : 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity : 535 liters
Self-Removal Device : NA

Weight
Operating Weight : 120 t *1
Ground Pressure : 93.6 kPa
Counterweight : 53,110 kg
Transport Weight : 34,800 kg *2

*1 Including upper and lower machine, 53.1 ton counterweight, basic boom, hook,
and other accessories.
*2 Base Machine with boom base gantry, wire ropes (front/rear/boom hoist)

We also have used cranes.

Additional information regarding this equipment will be shown on request

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------------
Search words(for official use only -
Kobelco 7120S Crawler Crane for sale
120T Kobelco 7120S Crawler Crane for Sale
Hydraulic Crawler Crane - Kobelco 7120S - for sale
120 Tons Hydraulic Crawler Crane for sale
-----------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Kobelco 7120S Crawler Crane for sale

Images

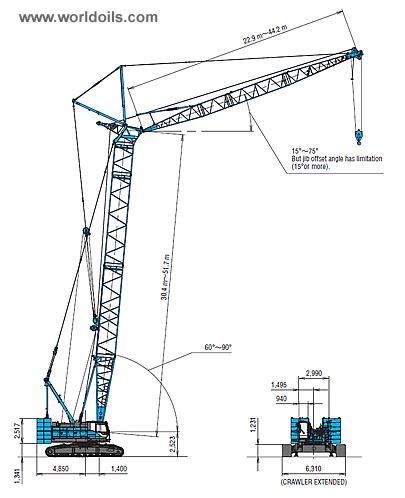

120T Kobelco 7120S Crawler Crane for Sale
