Kobelco CKE1350-1F Crawler Crane for Sale

Equipment ID: 1507
Equipment name: Kobelco CKE1350-1F Crawler Crane for Sale
Category: Cranes / Lifting equipment
Specifications: Kobelco CKE1350-1F Crawler Crane for Sale
135 Tons Kobelco CKE1350-1F Crawler Crane for Sale

Main Specifications

Crane Boom
Max. Lifting Capacity 135 t/4.5 m
Max. Length 76.2 m

Luffing Boom
Max. Lifting Capacity 80 t/8.0 m
Max. Length 47.9 m

Long Boom
Max. Lifting Capacity 44.3 t/10.6 m
Max. Length 82.3 m

Fixed Jib
Max. Lifting Capacity 26.8 t/16.0 m
Max. Length 30.5 m
Max. Combination 61.0 m + 30.5 m

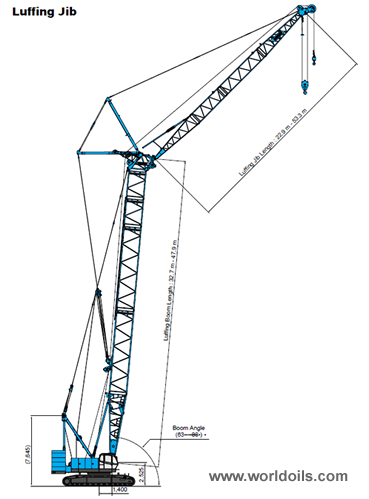

Luffing Jib
Max. Lifting Capacity 36 t/12.0 m
Max. Combination 47.9 m + 32.0 m, 44.8 m + 53.3 m

Main & Aux. Winch
Max. Line Speed 120 m/min (1st layer)
Rated Line Pull (Single Line) 132 kN {13.5 tf}
Wire Rope Diameter 26 mm
Wire Rope Length 275 m (Main) 255 m (Aux.)
Brake Type Spring-set hydraulically released (Nagative)
Free-Fall Brake Type Wet-type multiple disc brake (Optional)

Working Speed
Swing Speed 2.1 min-1 {rpm}
Travel Speed 1.3/0.9 km/h

Power Plant
Model Hino P11C-UN
Engine Output 247 kW/2,000 min-1 {rpm}
Fuel Tank Capacity 400 liters

Hydraulic System
Main Pumps 4 variable displacement
Max. Pressure 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity 535 liters
Self-Removal Device Standard counterweight removal

Weight
Operating Weight* Approx. 136 t
Ground Pressure* 106 kPa {1.08 kgf/cm2}
Counterweight 53.0 t (Upper), 10.0 t (Lower)
Transport Weight** Approx. 39.7 t

* Including upper and lower machine, 53.0 ton counterweight and 10.0 ton
carbody weight, basic boom, hook, and other accessories.
** Base machine with trans-lifter, 70 t hook, main and aux. winches (non-free fall)
including wire rope, self removal device.

We also have used cranes.

Additional information regarding this equipment will be shown on request

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------------
