Kobelco CKE1800-1F Crawler Crane for sale

Equipment ID: 1508
Equipment name: Kobelco CKE1800-1F Crawler Crane for sale
Category: Cranes / Lifting equipment
Specifications: Kobelco CKE1800-1F Crawler Crane for sale
180tons Kobelco CKE1800-1F Crawler Crane for sale

Main Specifications

Heavy Duty Crane Boom
Max. Lifting Capacity : 180 t/3.75 m
Max. Length : 42.7 m

Crane Boom
Max. Lifting Capacity : 160 t/4.4 m
Max. Length : 85.3 m

Luffing Boom
Max. Lifting Capacity : 110 t/5.2 m
Max. Length : 54.9 m

Long Boom
Max. Lifting Capacity : 40.1 t/12.0 m
Max. Length : 85.3 m

Fixed Jib
Max. Lifting Capacity : 26.8 t/15.2 m
Max. Length : 30.5 m
Max. Combination : 73.2 m + 30.5 m

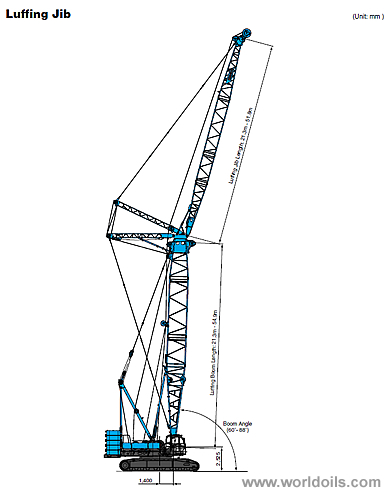

Luffing Jib
Max. Lifting Capacity :48.6 t/9.14 m
Jib Length : 21.3 m ~ 51.8 m
Max. Combination : 54.9 m + 51.8 m
Luffing Angle : 60° ~ 88°

Working Speed
Swing Speed : 2.6 min-1 {rpm}
Travel Speed : 1.1/0.7 km/h

Power Plant
Model : Hino P11C-UN
Engine Output : 247 kW/2,000 min-1 {rpm}
Fuel Tank Capacity : 400 liters

Main & Aux. Winch
Max. Line Speed : 100 m/min (1st layer)
Rated Line Pull : 132 kN {13.5 tf}
Wire Rope Diameter : 25.4 mm
Wire Rope Length : 430 m (Main) 335 m (Aux.)
Brake Type : Spring set hydraulically released (Negative)
Free Fall Brake : Wet-type multiple disc brake (Optional)

Hydraulic System
Pumps : 4 variable displacement
Max. Pressure : 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity : 550 liters
Self Erection Device : Standard

Weight
Operating Weight* : Approx. 164 t
Ground Pressure* : 103 kPa {1.06 kgf/cm2}
Counterweight : 60.0 t (Upper), 20.0 t (Lower)
Transportation Weight** : Approx. 44.0 t

* Including upper and lower machine, 60.0 ton counterweight, 20.0 ton carbody
weight, basic boom, hook, and other accessories.
** Base machine with boom base, trans-lifter, main and aux. winches (non-freefall)
including wire rope, self removal device.

We also have used cranes.

Additional information regarding this equipment will be shown on request

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------------------
