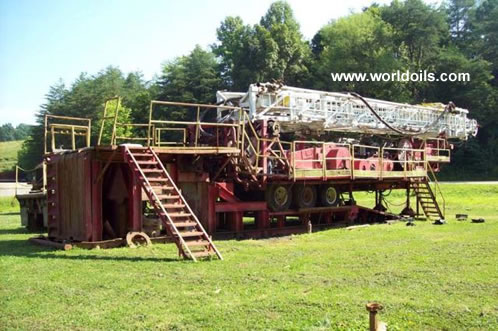

Wilson Mogul 42 Double Trailer Mounted Rig for Sale
550 HP Mechanical Drilling Rig Trailer Mounted

Description :

Wilson Mogul 42 Double Trailer Mounted Rig
550 HP, Mechanical, +/- 6,000' Trailer Mounted Drilling Rig
Country: USA

Draw Works:
- Single Drum Draw Works
- Foster Model 27 AH break out Cat heads (serial # 1404)
- Manual Braking System
- 1,500’ 1” drilling line, spooled, never used, still in protective coating
- Driller’s console, with controls

Power:
- Detroit Model 12V71 diesel engine
- Engine rated for 550 peak Horse Power
- Radiator and Electric starter
- Allison Model TC955 torque converter

Substructure:
- 10’ Height
- 16’ Width (with walkways extended)
- 12’ Length
- 2 piece substructure
- Box type structure, with rotary table beams
- 10’ W x 40’L back on ramp
- Removable Stairways
- Folding walkways
- Safety railings
- Lighting
- Includes rat hole / mouse hole digger

Mast:
- Wilson 102’ Height hydraulic derrick (serial #991-102-300)
- Hydraulically raised with multiple scooping raising arm
- Crown Block and Safety Platform
- Pipe racking board
- Standpipe
- 3” (ID) x 50’ long Kelly hose
- Tong counterweights
- Vapor proof lighting
- Martin – Decker weight indicator

Rig Mounted Equipment:
- Hydraulic Break Out Cylinder
- Winch
- Hydraulic Storage Tanks
- Fuel tanks
- Air compressor – Bendix Westinghouse Model TUFLO 1000
- Deadline anchor
- Hydraulic leveling jacks
- Folding walkways, with stairs and safety railings
- Rig Mounted on Tri Axle Trailer

Travelling and Rotating Equipment:
- Chain Driven Rotary Table - Gardner Denver Model 175
- Split Master Bushing
- Swivel - Gardner Denver Model SW 125
- Kelly - Brand New 40’Length x 4 1/4” Square Kelly
- Drive Bushing
- Travelling Blocks - 3 sheave blocks, grooved for 1” line
- WEBB-WILSON Hydra Hook Elevator Bales
- Rig set up to add an extra travelling block to increase all capacities
- Air Head Oiler

Casing, Pipe and Equipment:
- 7,000’ +/- 3 ½ OD drill pipe
- 3 ½ ” IF connection
- 4 ¾ ” OD flush drill collars, 3 ½” IF connections, slip recessed
- 6 ¼ ” OD with 4 ½ “ X-hole connection drill collars
- 2 Standard 32’ pipe trailers
- 1 Extended 35’ center trailer

Well Control Equipment:
- Williams 11” annular BOP
- Washington Rotating head assembly, complete with 16 ¾” air bowl
- Assortment of Flanges including
- Companion flange 13 5/8 x 13 3/8
- Companion flange 13 5/8 x 9 5/8
- Companion flange 13 5/8 x 7 inch

Custom Rig Doghouse:
- 8’W x 24’L trailer mounted dog house
- Easy Access Front Porch
- Rear porch where generator is mounted
- Custom Built House for all tools
- Storage areas
- Breezeway
- 3000 gal fuel cell
- Geolograph
- Work Bench
- Drilling Supplies
- Night work lights
- All mounted on 40’ trailer

Generator:
- Stateline 10 KV generator with all necessary Switching gear, gauges and controls, mounted on Rig Doghouse Porch
Miscellaneous Equipment and Parts:
- Tool Trailer
- Soap tank with MYERS Model C20-8CR injection pump and 1 ¼ “ lubricator
- Soap pump powered by Waukesha Engine
- Assortment of casing elevators and single side door elevators
- 2” air pump
- Assortment of change over subs
- Dead man stakes and cable for rig tie down and secure lines
- Webb Wilson Type B tongs with assortment of tong jaws
- 4 ½ “ bottleneck drill pipe elevators
- Drill collar slips

Air System (available at additional cost):
2001 Ingersoll Rand Airpac:
- Model number XHP1170
- Twin air compressors included
- Trailer Mounted
- Cat powered C15 engines capable of 525 HP
- Twin air units rated for 350 PSI and 1170 Cubic Feet each
- Both air unit have approx 7,600 hrs
- All units plumbed together
- compressor, complete with all necessary collers, gauges, valving and controls

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

--------------------------------------------------------------------------------------------------------------------
