Towing / Utility / Supply Vessel for sale
Shallow Draft Utility Vessels - 2000bhp

General

Year Built : 1982

Classification : ABS + A1 + AMS + E and BKI

Dimension : 38.0 m x 9.5 m x 3.6 m

Draft - Light : 1.69 m

Loaded : 3.23 m

GRT : 413 NRT : 124

DWT : 475 tons

Cargo Capacity

Fuel Oil : 196 m3

Potable Water : 118 m3

Deck Cargo : 150 tons

Clear Deck Space : 15.0 m x 7.5 m

Refrigerated Storage Capacity

Freezer : 2 m3

Chiller : 2 m3

Accommodation

1 man cabin : 2

2 men cabin : 4

4 men cabin: 4

Total: 26(Fully Airconditioned)

Navigation & Communication

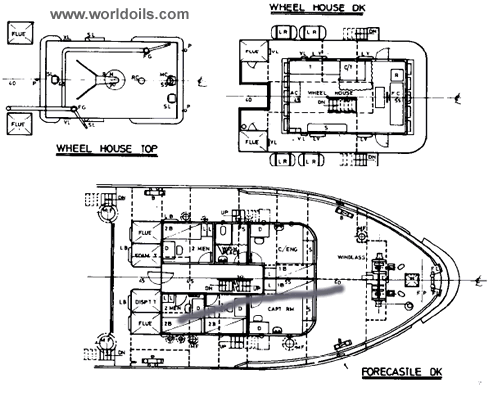

All round view wheelhouse.

Forward & aft control consoles(Pneumatic&Hydr.)

Radar, echo sounder, auto-pilot , Weather Fax

Gyro/magnetic compasses , GPS , SSB , VHF

Intercom/P.A. system , Navtex Receiver , EPMIRB

Anchor And Cable

Anchor : 2 x 690 kg each Stockless Anchor

Towing Equipment

Winch: 1 x single drum, 40 T Stall Pull

Drum Capacity: 700 m x 40 mm dia. Wire
Tugger winch : 1 x 5 MT line pull

Main Machinery & Propulsion

Main Engine : 2 x FUJI 6M23C, each 1000 BHP

Propulsion: 2 x CPP in Kort nozzles

Auxiliary Engine : 2 x Mitsubishi S6B-MPTK(ea 265 HP)

Alternator : 2 units, 200KVA each, 415V/3P/50Hz

Bow Thruster : 1 x 110 KW Electric Driven, 1.7 tons thrust

Cargo Pump Capacity

Fuel Oil : 60 m3/hr @ 40 m head

Potable Water : 60 m3/hr @ 40 m head

Ballast pump : 28 m3/hr @ 30 m head

Fire Fighting & Anti-Pollution

Pump : 1 x 300 m3/hr at 120 m head

Monitor : 2 x 2300 ltrs/min at 100 m head or 10 kg/cm2

Foam Tank : 4770 ltrs

Oil Dispersant Tank : 4770 ltrs

Spray Boom : 2 x 6 m length

Speed

10 knots

Bollard Pull
