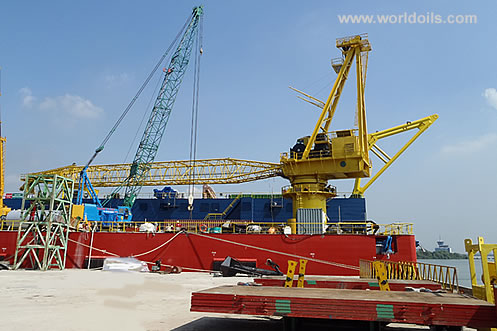

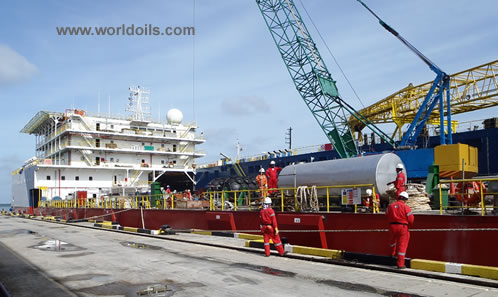

Pipelaying Barge for Charter or Sale
Newbuild Pipelayer Barge for sale

Technical Specifications
Type : Pipelay Barge for Shallow & Medium water
Built : 2012
Classification :
ABS + A1 Barge, CRC PGBOOM, MODU Compliance

Main Dimension
Length overall : 137.25m
Breadth moulded : 37.82m
Deck Loading : 12.5 tonne

Accommodation
Berth :
288 personnel (single berth cabin : 10 nos, two berth cabin : 139 nos)

Office
Barge Master office (1), Client office (1), Office (6)

Other Facilities
Galley (1), Mess hall (1), Cinema room (1) Recreation room (1),
Internet room (2), Phone booth (1), Gymnasium (1), Conference room (1)
Laundry room (1), Coffee shop (1), Hospital and sick bay (1)

Safety and Life Saving System
Rescue boat : 6 pax Semi Ridgid Inflatable
Life raft : 12 x 50 men
Life Jacket : 640
Life Buoy : 10
Rescue Lifeline : 2 x 30 min

General Safety System
- Chemical system - for Galley Hood
- Fm-200 Switch Board Room
- Automatic Springkler System - Accommodation, Public area,
Working area and Storage
- Water Mist System - Machinery Room
- Automatic Fire and Smoke Detection System - Accommodation,
Public area, Working area and Storage
- Fire Monitor System

Communication / Navigation / Safety Radio
Modu Code Compliance (Equipped with 2.4MVsat for Broadband and Services (PSTN)

Pipelay System
Pipelay capacity : Max. 60 in, min 8 in coated pipe
Tensioner machine : 2 x 70 mt
A&R Winch : 182T

Work stations
1 x Bevelling Station /1 x Line-up Station/4 x Welding Stations/
1 x NDT Station Repair & 1 x Field Joint Stations

Davit : 6 x 50T
Stinger : Floating Truss, Total length 60m
1st Section length : 42m
2nd Section length : 19m

Crane
Main crane : PC300 Favelle Favco
Main hoist : 280T@20.0m, 77°
Auxiliary hoist : 32T@ all radius
Crawler crane : TBC

Welding Machines
4 x 1000amp Lincoln Sub-arc
4 x 800amp Lincoln welding machine
4 x 400amp Lincoln welding machine
8 x Lincoln LF33 portable welding machine
14 x 400amp DC multi process Lincoln welding machine
1 x 600amp DC multi process welding machine

Helicopter Deck
Suitable for "Sikorsky S92"

Mooring and Tow System
Winches : 8 x hydraulic mooring winches
Line pull : 125t x 13M/min at 1st speed @ 1st layer
Wire size : 52mm dia
Length : 1500M
Anchor type : Delta Flipper
Anchor capacity : 10T

Storm Anchor
Wire size : 58mm dia
Length : 500M
Anchor capacity : 5T
Winch capacity : 300kN x 9M/min @ 1st layer
Anchor type : 200t SWL

Auxiliary Equipment
Generator :
Main : 4 x 1500kW
Emergency : 1 x 500kW
Air compressor : 2 x 875Cfm@ 10 bar
Air receiver : 2 x 3000L@ 10 bar
Water maker : 2 x 70mt/day
Oil water separator : 1cbm/hrs @ 15ppm
Fresh water system : 2 x 70T per day

Sewage Treatment Plant
Hydraulic Loading : 55.5cbm/day
Organic Loading : 45.3kg/day

Tanks
Fuel : 4,700 cbm
Ballast water : 7,000 cbm
Potable water : 2,000 cbm
Fresh water : 2,000 cbm
Lube oil : 56 cbm

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------------
