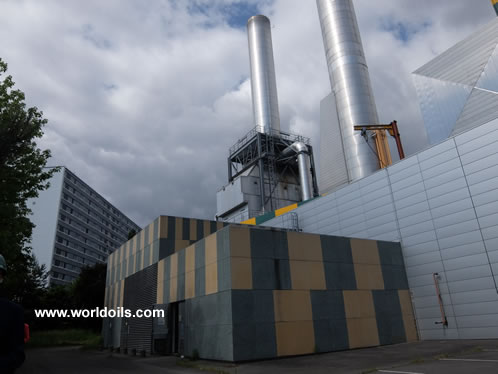

LM6000 Equipment Package Description

LM6000 engine is coupled with a generator and is
equipped with a heat recovery boiler. The power plant
works perfectly until it was turn off in March 2013.

Main information

Description of the LM6000 : 7LM6000
PD
NGD03 S/N192.148
Commissioning date : November 2001
Package Hours: 45 388 hours
Engine running hours : 45 388 hours

Year              Last Availability rate
2009/2010         99,6%
2010/2011         95,5%
2011/2012         100%
2012/2013         98,6%

Generator
— Running hours : 45 388 hours
— Manufacturer: BRUSH (FKI Rotationg Machines)
— Output 53500Kva
— R/min 3000
— Volts 11500 Amps=3188
— Turbo generator type : BDAX7-290ERJT 50Hz
— Machine N° 904118.010
— N° de series 904118
— CustN° 27674829
— Part numb: 31767200

Reductor
— running hours : 45 388 hours
— Manufacturer: FLENDER GRAFFENSTADEN
— Ref : STEWART/STEVENSEN 655211
— Type : TX61/1CV N°5713
— Power : 52200KW
— Speed : 3627/3000
— Weight : 13500kg

Technical data

This section lists the general descriptions , capacities, and
capabilities for the gas turbine-generator set including associated
support systems.

Engine
— Manufacturer : General Electric
— Model N° 7LM600-PD
— Type : Gas turbine
— Engine Weight : 13 270 Ib
— Operating Speed :
• LP Rotor : 3600 rpm
• HP Rotor : 10 200 rpm
— Start System : Hydraulic

Ignition Exciter
— Manufacturer : Unison

Generator
— Manufacturer : FKI Rotationg Machines
— Type : Air-cooled

Turbine Hydraulic Starter System
— Manufacturer : Sunstrand
— Hydraulic Reservoir capacity : 40gal
— Charge pump : 56gpm @5200 psig
— Starter Motor : ABB motors
— (200-hp, 400-VAC, 3Ф, 50-Hz)
— Hydraulic Fluid: Recommendations in manual.

Ventilation and Combustion Air System
— Air Filtration System : ALTAIR
— Turbine Ventilation Fans : TCF Aerovent
(2 fans – 1 operates, 1 is on standby, 60,000 scfm each)
— Generator Ventilation Fans : TCF Aerovent
(2 fans – 1 operates, 1 is on standby, 39,000 acfm each)
— Silencers :
• Air inlet Silencer Manufacturer : ALTAIR
• Turbine Room Vent Fans Silencer Manufacturer : TCF AEROVENT
• Variable Bypass Valve Silencer Manufacturer : VAW
• Generator Exhaust Silencer Manufacturer : VAW

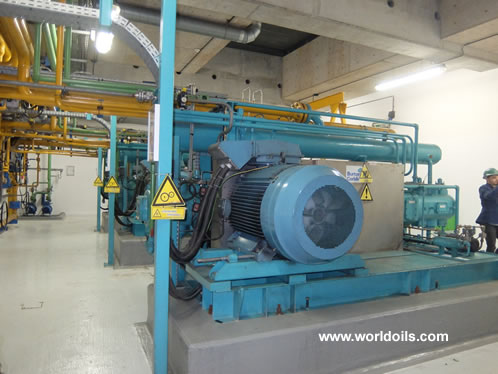

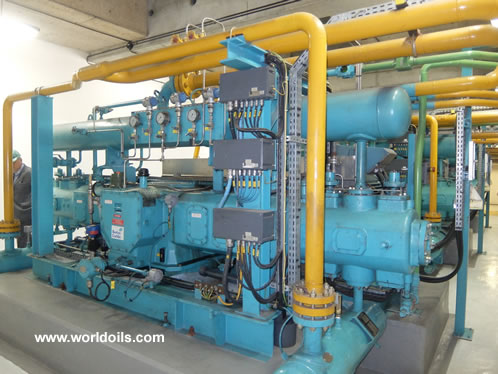

Gas Fuel System
— Input required : Natural Gaz, 400MMBtu/hr, max
— Supply pressure : 655 – 695 psig
— Supply Temperature : 250°F, max
— Fuel Filter 3µ, absolute

Gas Fuel Flow – Control Valve : WOODWARD

Generator Lube Oil System
— Reservoir Capacity : 3000 gal
— Generator Lube Oil Supply Filters :
• Rating : 6µ, absolute
• Manufacturer : PALL
— Generator / Gearbox Lube Oil Heat Exchangers
• Cooling : Fin /Fan
• Manufacturer : Thermal Mechanical
— AC Lube Oil Pump : LEISTRITZ

Turbine Lube Oil System
— Reservoir Capacity : 150 gal
— Turbine Lube Oil Supply Filters :
• Rating : 6µ, absolute
• Manufacturer : PALL
— Turbine Lube Oil Heat Exchangers
• Cooling : Fin /Fan
• Manufacturer : Thermal Mechanical

Turbine Hydraulic System
— Prime Mover : Direct connection to turbine accessory gearbox
— Internal Relief Valve Setting on Hydraulic Supply
Pump : 800 psig
— Filters Rating : 3µ, absolute

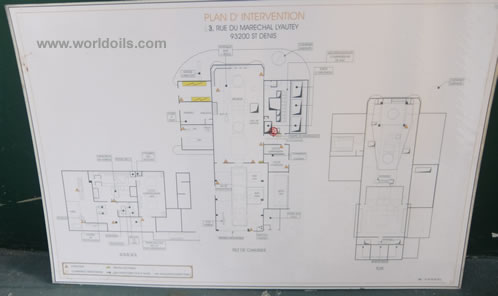

Fire Suppression and Gas Detection System :
— Manufacturer : WILSON FIRE EQUIPMENT & SERVICE
COMPANY, Inc
— Fire Suppressant : CO2 gas
— Thermal Spot Detectors : 225°F and 450°F plus rate of rise
— Optical Flame Detectors : Duel-frequency infrared 90° view
cone
— Combustible Gas Detector : Methane

Turbine Water Wash System
— Water Supply Pressure : 15 – 65 psig
— Tank Capacity : 100 gal
— Instrument Air Pressure : 80- 120 psig filtered to 3µ,
absolute
— Detergent: Added in solution with water wash in proportion, as
specified by manufacturer of detergent
— Antifreeze : Isopropyl Alcohol, Methyl Ethyl Ketone (MEK) or
Acetone, detergent manufacturer must specify which of these is
compatible with detergent

Control System
— Fuel Control /Sequencer : WOODWARD
— Automatic Voltage Regulator (AVR) : FKI ROTATING
MACHINES
— Vibration Monitor : BENTLY NEVADA
