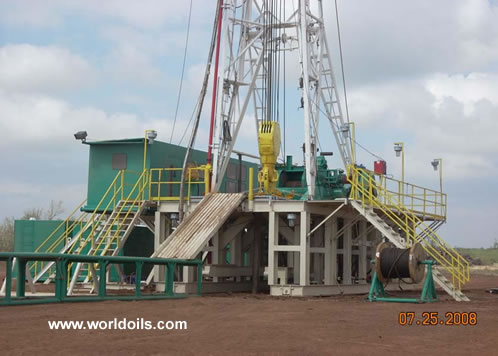

Ideco U-15 - 800 HP Drilling Rig
800 HP Used Drilling Rig

Rig Carrier

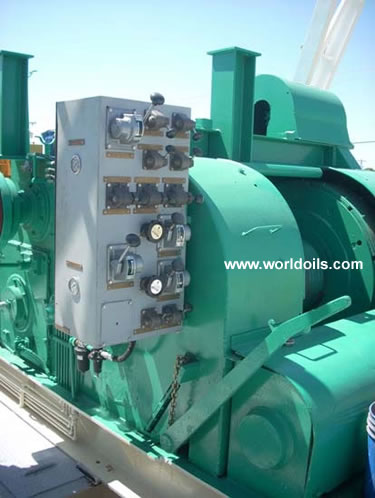

Drawworks
800 HP U-15 single drum, Make up &
Breakout heads hydromatic brake

Hydraulic Winch
5,000 lbs capacity Air operated

Drawworks Power
(2) Cat 3406 engines, 599 HP, 2 twin disk torque converters

Mast
107’ not certified on lbs, 8 lines.  Is adequate height to
allow mouse hole connection

Substructure for BOPE Class – III
100,000 lbs, not yet certified, Capable of handling 8’ tall BOP,
Complete with V door, catwalk and handrails.
Not adjustable rotary table, No T structure.  Substructure design
must be able to accommodate opening of pipe ram doors whenever
ram size change-out is required.

Rotating Equipment

Rotary Table
Cooper 17 ½” diameter opening, 100 ton dead load capacity, Complete
with torque guage.  Mechanicl driver system with diameter bushing for
7” to 13 5/8” tubular.  Rotary table with lock to prevent clockwise
and counter clockwise rotation.

Rotary Hose
Minimum 3” ID with 55’ length, with minimum 3000 psi WP complete
with union connection with safet6y chain

Rotary Swivel
L200 Emsco, 150 ton capacity

Kelly
4 ½” square type with bushing saver-sup, 40’ min working space and
maximum height must be matched with mast specification and accessory
equipment and able to take mouse hole connection.

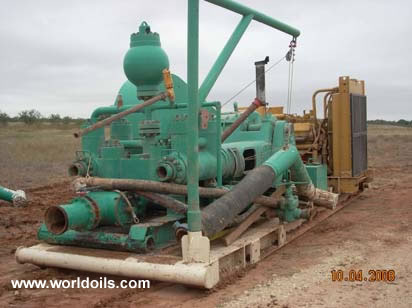

Sluch Pump
(1) 18” C350 National , matco fluid – end ID #C350-002, powered
by 3412 caterpillar
(1) 16” N1100 Duplex, Matco Fluid-end Serial # X1177, powered
by 379 caterpillar serial # 76B270

Sluch Pump Prime Mover
(1) 18” C350 National, Matco Fluid-end, ID#C350-002, powered
by 3412 Caterpillar
(1) 16” N1100 Duplex, Matco Fluid end Serial # X1177, powered
by 379 Caterpillar serial # 76B270

Shale Shaker with Jet Sprayer

4 x 4 vibrating shake (electric)

Hoisting Equipment

Drilling Line
New 1” line size, 6 x 19 IPS, FC – 5000 ft. and match to the
drawwork and crown block.  C/W drilling line spool
and tone mile record

Hydraulic winch line
With minimum 5/8” line size, 200 feet length and 5 ton capacity

Traveling Block with Hook
6 sheaves 1” drilling line completed with standard and extra
long links and match to drum and mast, with minimum
150 tons capacity

Elevator Link

3” x 8’ with 150 ton capacity
Elevator (tubing, DP, and DC)
4” rebuilt and certified #w04166701LT10-1008, 150 ton capacity

Weight Indicator
Totco, capacity measurement 0-360,000 lbs having weight and
vernier pointer, match with rig capacity. Recalibrated as
required by Red Satelite

Depthometer
Eastman ¼” line measuring 300 ft

Tubular Good and Equipment

Manual Rotary Tong
BJ type C each of make-up and breakout manual rotary tongs
for 3 ½” to 10 ¼” tubular size with 35,000 ft lbs of torque.
Must be complete with tong line (torque) pull gauges installed
on each the make-up and breakout snub lines.Total 1 toneg
line pull gauges.

Chain Tong
One 30” to handle 2 3/8 – 6”, and One 36” to handle 2 3/8 – 12”

Rotary Slip
One set of 4” slips and one set of 6” drill collar slips

Safety Clamp
One 6” drill collars

Pipe Rack
Three – 3-leg conventional pipe rack complete with stopper on
each and for 50 joints DP and tubing, and for 15 joints
of + 5/8” liner with wooden base

Subs
One 4 ½” xh – 4” fh
One 4 ½” xh – 6 ¾ regular
One 4” fh – 4 ½” xh
One 4 ½” regular – 4” fh
One 4 ½” xh – 4” fh

BOPE

Ram BOPE
One 8” Regan type bladder BOP

Closing Unit
One Accumulator system with 3000 psi WP, complete with air
compressor with automatic start

Electrical Equipement

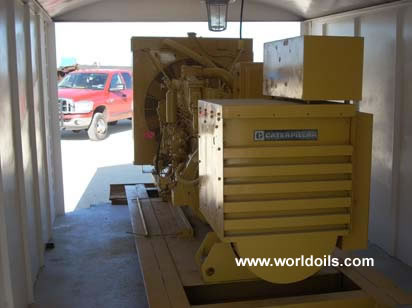

Electric Power
Generator house with 2300 kw generators and emergency
electric air compressor

Lighting
One set explosion proof lighting set with sufficient lighting
for rig site, ground fault interrupter with power head cable 220-480 V.

Miscellaneous

Doghouses (top and bottom)
One Top doghouse ID# 104, 40’ x 8’ x 7 ½’
One Bottom doghouse ID # 122, 29’ x 8’ x 7 ½’

Water tank
One 32’ x 8’ x 8’

Diesel Tank
One 10,000 Gallon

Drill pipe
7000 ft of 4” full hole
Drill Collars
Sixteen  6 ½ OD

Hutson Fork Lift
One Skytrac Caterpillar
