Cutter Suction Dredger - C10 - for Sale

Equipment ID: 2035
Equipment name: Cutter Suction Dredger - C10 - for Sale
Category: Dredgers
Specifications: Cutter Suction Dredger - C10 - for Sale
Cutter Suction Dredger for Sale for Marine Operations

Principal Dimensions
Length overall ladder raised : 25.0 m
Length over hull : 16.9 m
Breadth assembled : 5.00 m
Depth : 1.8 m
Mean draught : 0.95 m
Standard dredging depth : 10 m
Suction pipe ID : 254.00 mm
Discharge pipe ID : 254.00 mm
Total installed power : 474 kW
Assembled weight : 52 tonnes

Dredge Pump
Type : Warman 10 / 8 FG
Power at shaft : 310 kW
Impeller material : High chrome alloy A29 BN 300
Door & back material : High chrome alloy A05 BN 650
Min passage size : 125 mm

Dredge Pump Drive Engine
Make : Volvo
Type : TWD1240VE
Power : 310 kW @1800 rpm

Auxiliary Drive Engine
Make : Volvo
Type : TAD941VE
Power : 164Kw @1800 rpm

Cutter Head
Type : TSCO4/750-280-5NR
Drive : Hydraulic
Power at shaft : upto 66 kW
Speed : 0.32 rpm

Warping Winches
Drive : Hydraulic
Line pull : First layer 4 tonnes
Capacity : 150 m per drum

Ladder Lift Cylinders
Drive : Hydraulic
Stroke : 2.2 m

Spuds
Length : 12 m
Diameter : 406 mm
Weight : 2500 kg

Spud Lift Cylinders
Lifting force : 140 kN
Cylinder stroke : 1.8 m
Spud stroke : 3.8 m

Electrical Installation
Alternator : 24V

Options
Cab Air Conditioning
Generator
Dredging profiling systems
Mass flow meter
3.5 tonnes SWL lifting davit

Size : C10
Arm/ladder lift equipment : Hydraulic Cylinders
Standard Max Dredge Depth : 10m
Hull size type : A
Discharge capacity M3/hr of slurry : 940
Distance meters : 800

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------
Search words(for official use only) :
Heavy Duty Cutter Suction Dredger - C10 - for Sale
25.0m Length Cutter Suction Dredger
Cutter Suction Dredger - 10m Dredging Depth
C10 Cutter Suction Dredger for Sale
------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Cutter Suction Dredger - C10 - for Sale

Images

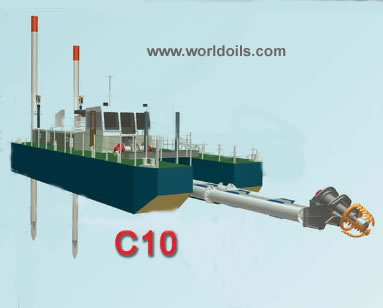

Heavy Duty Cutter Suction Dredger - C10 - for Sale
