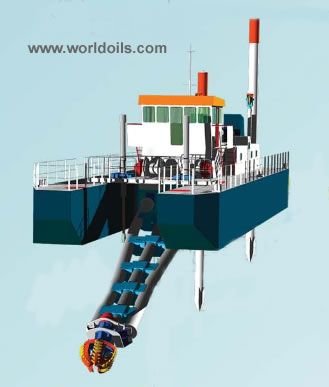

Cutter Suction Dredger - C16 - for Sale

Equipment ID: 2038
Equipment name: Cutter Suction Dredger - C16 - for Sale
Category: Dredgers
Specifications:

Cutter Suction Dredger for Sale
32m Length Cutter Suction Dredger

Principal Dimensions
Length overall ladder raised : 32.00 m
Length over hull : 25.00 m
Breadth : 8.0 m
Depth : 2.40 m
Mean draught : 1.20 m
Standard dredging depth : 10.00 m
Suction pipe ID : 406.00 mm
Discharge pipe ID : 406.00 mm
Total installed power : 1180 kW
Total dry weight : 150 tonnes

Dredge Pump
Type : Warman 16/14 GH
Max power at shaft : 895 kW
Impeller material : High chrome alloy A29 BN 300
Door & back material : High chrome alloy A05 BN 650
Min passage size : 210 mm

Dredge Pump Drive Engine
Make : Cummins
Type : KTA 38 M2
Power : 895 kW @1800 rpm

Auxiliary Drive Engine
(For cutter-winches-spuds)
Make : Cummins
Type : QSL 9
Power : 204Kw @1800 rpm

Cutter Head
Type : TSCO4/1230x450/5N.R
Drive : Hydraulic
Power at shaft : 140 kW
Speed : 0-35 rpm

Warping Winches
Drive : Hydraulic
Line pull : 1st layer 60 kN
Hydraulic power : 54kW

Ladder Lift Winch
Drive : Hydraulic
Lifting force : 108 kN

Spuds
Length : 15.1 m
Diameter : 610 mm
Weight : 5500 kg

Spud Lift Cylinders
Lifting force : 240 kN
Cylinder stroke : 1.8 m
Spud stroke : 3.8 m

Electrical Installation
Alternator : 24V
Generator : 230/400 VAC 50Hz
Capacity : 24kVa

Miscellaneous Equipment
Jib crane
Air conditioning

Optional Equipment
Production meter
GPS positioning
Cutter dredger monitor/profile system
Anchor booms

Size : C16
Arm/ladder lift equipment : Hydraulic Cylinders
Standard Max Dredge Depth : 10m
Hull size type : B
Discharge capacity M3/hr of slurry : 2500
Distance meters : 1000

Price & terms : Please enquire using the email form below.
