Description :

Gardner Denver 700 Drilling Rig
800 HP, Mechanical, Box on Box
14,000’ Capacity with 4 ½” Drill Pipe

Drawworks:
Gardner Denver 700 with 342 Parmac Hydromatic Brake powered by (2) Cat C-15
engines with (2) National 195-80 torque converters – 800 HP

Substructure & Mast:
Pyramid 131’ mast, 550,000 GNC, 1 ¼” line
Pyramid 20’H substructure

Generators:
(2) 320 KW AC Generators powered by (2) Cat C-15 diesel engines

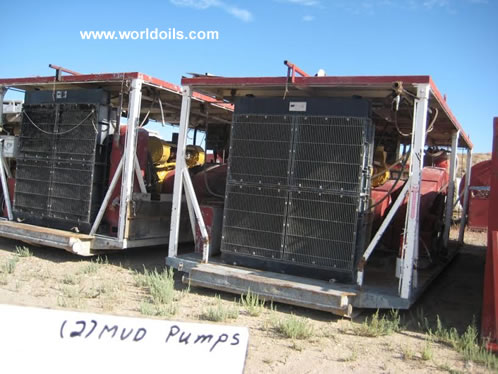

Mud Pumps:

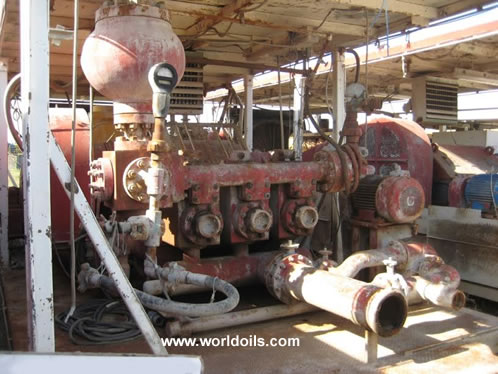

(2) Gardner Denver PZ-9, driven by (2) 3508 Cat Diesel motors

Rotating & Traveling Equipment:
Chinese Rotary Table – 27 ½”
Emsco Block and BJ Hook – 250 Ton
Ideco Swivel – 300 Ton
5 ¼” x 42’ Kelly Varco HD Pin Drive Bushings

Blowout Prevention:
13 5/8” annular BOP – 10000 psi
13 5/8” double gate ram BOP – 10000 psi
13 5/8” single
4” x 3” – 10000 psi complete manifold with gauges and chokes

Doghouse, Water, Fuel & Mud Tanks:
Heated Doghouse
(1) Fuel tank – 12,000 Gal
(1) Water Tank – 500 Bbl
(2) 10’ x 5’ x 40’ mud tanks complete with (4) 5” x 6” electrical driven centrifugal
pumps manifold to low pressure mud system with electrically driven mud
agitators, mud guns – 650 Bbl capacity
(2)Fluid System linear shale shakers, (1) Fluid System desander 10” cones, (1) Fluid
System Desander 2 cones, (1) Fluid System desilter 10 – 4” cones

Handling Tools/Auxiliary Equipment:
BJ 48” Type B tongs
Pilot II Automatic Driller
Sure Shot 14” A-1 Survey Instrument
MD Totco Type D Weight Indicator

Drill Pipe & Collars:
300+ Jts. 4 ½”, 16.6# drill pipe
(3) 8” x 30’ drill collars
(22) 6 ¼” x 30’ drill collars

Rig Manager’s Camp

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------------
