Ingersoll Rand A300 Drilling Rig for Sale
Drilling Rig - Ingersoll Rand A300 - For Sale

Model : A300 Drill Rig
Manufacturer : Ingersoll-Rand
Year : 1994
Condition : Used

Description :

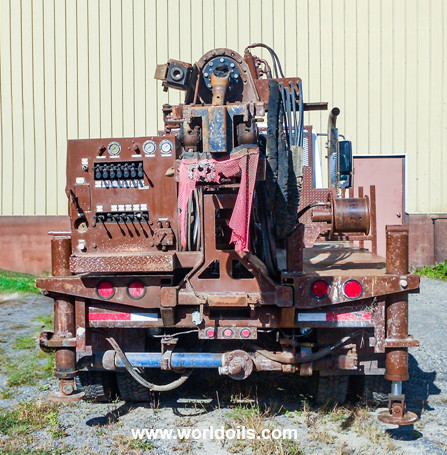

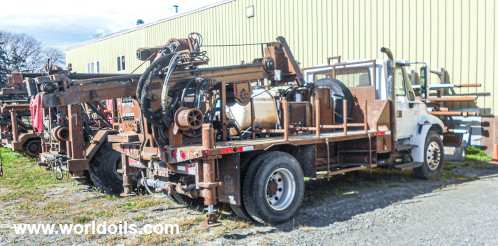

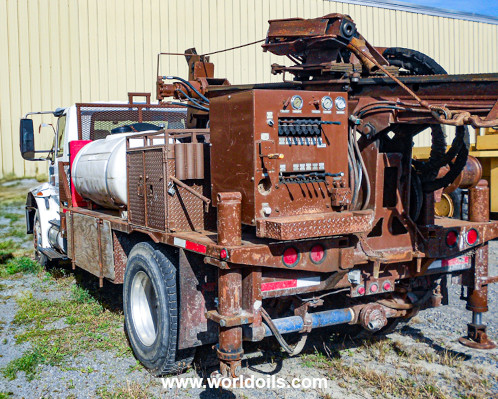

1994 Ingersoll Rand A300 Drill Rig

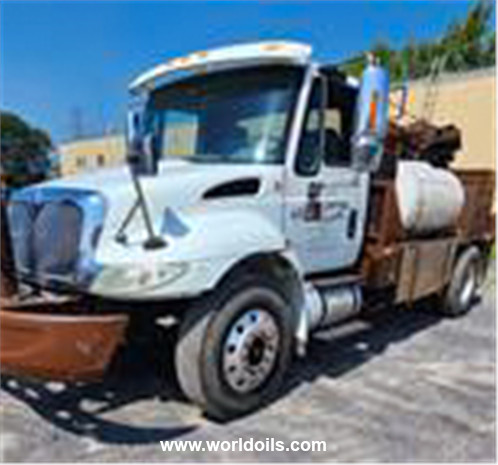

Mounted On A 2007 International 4300 Truck With 98,331 Miles
Drill Rig Has 8948 Hours
Top Head Drive With 800 Ft Lbs. Torque
6000 Psi Hydraulic Pump
300-Gal Water Tank
2 Winches
3l6 Moyno Pump
Slide Bas With Cross Slide Head
Rig Has Probe Hammer And Cathead
Deck Mounted Toolboxes
Under Deck Auger Racks
Telescoping Tower
16 Ft Working Height

A-300 Monitoring Drill Specifications :
Power System :
Power transfer : Transfer case and pump drive
Hydraulic pumps :
Variable displacement : 30gpm
Fixed displacement : 40gpm
Reservoir : 100 gallons
Filtration : 10 micron element

Dimensions :
Length : 25ft. 0 in.
Width :8ft. 0 in.
Height (derrick down) : 10ft. 9 in.
Height (derrick vertical) : 14ft. 10 in.
Weight (less truck) : 8,000lb.
Weight (Including truck) : 16,000lb.

Leveling System :
Hydraulic jacks : 3(1 front; 2 rear)
Diameter/stroke : 5"x30"
Pad diameter : 10 in. diameter

Derrick :
Tubing section : (2)5"x10"x0.25" wall
Length : 12.0 ft.
Rotary head travel : 8ft.

Feed System :
Pulldown/Pullback : 18,000 lb.
Head travel speed : 50ft/min.
Feed motor : Hydraulic; variable speed
Feed chain : Roller

Rotation System :
Motor type : Hydraulic planetary gear
torque : 8,000ft-lb. (96,000 in-lb.)
Speed range (standard) : 0-75 rpm
Side slide (hydraulic) : 12" overall
Spindle adapter : 8 bolt flange

Hoist :
Capacity : 8,000 lb.
Speed : 85ft/min.
Cable : 1/2"x 60ft.

Options :
Cat head : 8"x8-3/4" drum
Pump : Moyno 3L6
"A" rod rack capacity : Capacity of 20 pcs.(5ft)
Twin auger racks capacity : 90ft. of 6¼ x5ft.augers
Three speed rotary head : 0-215 rpm; shift-on-the-fly
Derrick extension : 6ft hydraulic telescoping
Tool boxes : 24"x18"x18"(each)
Auger centering guide : For 4â…œ" to 8¼" hollow stem augers

Location : USA

Price & terms : Please enquire using the email form below.
