82M Platform Supply Vessel for Sale

Equipment ID: 2181
Equipment name: 82M Platform Supply Vessel for Sale
Category: Ships/Vessels
Sub Category: PSV
Specifications: 82M Platform Supply Vessel for Sale
1998 Built Platform Supply Vessel for Sale
PSV for sale

General
Delivery Date : July 1998
Classification : Lloyds Register + 100A1, Offshore Supply Vessel, + LMC, UMS DP (AA)

Measurements
Length o.a. : 82,85 m
Length b.p.p. : 75,80 m
Breath moulded :. 19,00 m
Depth moulded : 7,61 m
Draught, Max. : 6,31 m
Freeboard, min : 1,31 m
Corresponding DWT : 4679 t
Gross tonnage : 3017 t
Net tonnage : 1559 t
Light ship : 2318 t

Cargo Capacities
Deck cargo : 2700 t
Deck area max : 56,4 m x 16,0 m = 902 m2
Deck strength : 5 t/m2
Fuel oil : 909 m3
Liquid Mud : SG 2,5 676 m3 / 4254 bbls
Brine : SG 2,5 772 m3 / 4856 bbls
Base oil : 221 m3 / 1386 bbls
Pot water : 1021 m3
Drillwater/ballast 1120 m3
Methanol : 2 x 74 m3 Total 148 m3
Dry bulk : 400 m3 8 vertical tanks each 50 m3

Discharge Rates
Fuel : 2 x Centrifugal x 150 m3/h 9 bar
Liquid Mud : 4 x 2 speed Centri. x 100 m3/h 18 bar
Brine : 2 x 2 speed Centri. x 100 m3/h 18 bar
Base Oil : 1 x Centrifugal x 100 m3/h 9 bar
Drillw./ballast : 1 x Centrifugal x 150 m3/h 9 bar
Pot.water : 2 x Centrifugal x 150 m3/h 9 bar
Methanol : 2 x Centrifugal x 50 m3/h 7 bar
Dry bulk : 2 comp. x 27,5 m3 / min / 5,6 bar

Machinery / Propulsion
Main Engines & Propulsion Aft : 2 x 2460 kw Wartsila 6R32E Diesel
Auxiliary engines : 1 x 335 kw 440V 3ph 60 Hz Diesel
Main generators : 2 x 1760 kw 440V 3ph 60 Hz
Emergency generator : 1 x 167 kw 440V 3ph 60Hz Diesel
Diesel engine Azimuth thruster : 1 x 880 kw 440V 3ph 60 Hz Diesel
Azimuth thruster : 1 x 895 kw CPP –13,8T thrust
Bow thruster : 1 x 746 kw CPP- 10,8T thrust
Stern thruster : 2 x 746 kw CPP –10,8T thrust

Performance / Consumption
Max. speed : 14,0 knots / 22.0t / day
Econ. speed : 11,5 knots / 9,5 t / day

Propellers / Steering
Twin controllable pitch propellers 3,4 m diameter 160 RPM
Twin spade rudders

Joystick Control
DP2 : Alstom ADP 21 Dynamic positioning system
Joystick : Alstom AJS 01
Fan Beam lasar : Type MDL
DGPS no. 1 : 1 x Trimble DSM 212L
DGPS no.2 : 1 x Kongsberg Seatex DPS 116

Navigation Equipment
1x Autopilot : Robertson AP9 Mk3
1x Gyro Compass : Robertson RGC 11
1 x Gyro : Anschutz STD 22
1 x Gyro : SG Brown Meridian
1x Radar : Furuno MU-201CR
1x Radar : K-H Nucleus 5000R
1 x Electronic Chart Plotter : Telchart 2026
1 x AIS : JRC, JHS 182
1x GPS : Shipmate RS 5800
1x Speed Log : Sperry SRD-331
1x Echo Sounder : Marconi

Communication Equipment
GMDSS area A3
SSB Radio : Skanti TRP 1001
2 x DSC VHF Skanti : DSC 3001
3 x VHF GMDSS Handhold : Navico
1 x Inmarsat C : Trane & Trane TT3606E
1 x EPIRB : Jotron Tron 40 S
1 x EPIRB : Jotron Tron 45 SX
2 x SART : McMurdo RT 9-3
1 x VHF : Kelvin Hughes Husun 2047
1 x Inmarsat Fleet 77 : Maritime
1 x Cellcall Telephone
1 x V-Sat 128 kbit/s

Mooring Equipment
Windless : 2 x Deepwater winch x 22t at 14m/min
Anchors : 2 x 2140 kg. High holding power
Cables : 2 x 605 m – 46 mm stud link U3 grade
Tugger winch : 2 x 10 t hydraulic
Capstan : 2 x 10 t hydraulic
Crane : 1 x 3 t / 12 m radius

Liferafts / Rescue Boat
Safety Certificate : 20 persons
Solas MOB boat : 1 x 9 persons
Liferaft for : 24 persons

Accommodation
Cabins 12 Officers / Crew + 2x4 berth passenger cabins
Mess / Dayroom : Yes
Ships Office : Yes
Hospital : Yes
Cool Store / Freezer : Yes

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------
Search words (for official use only) :
82M Platform Supply Vessel for Sale
Used PSV for Sale
1998 Built Platform Supply Vessel for Sale
PSV - 82M - for sale
-----------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - 82M Platform Supply Vessel for Sale

Images

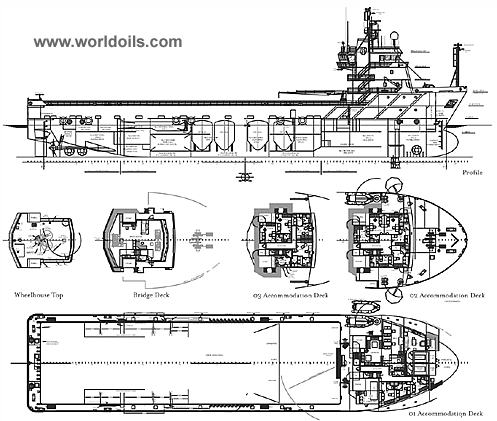

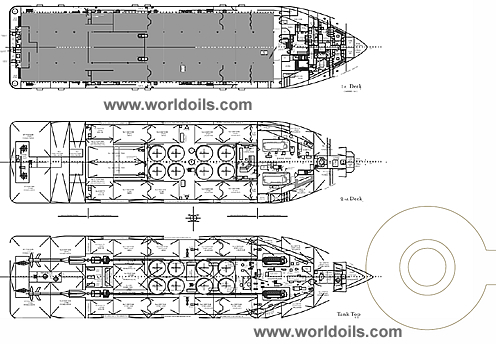

1998 Built Platform Supply Vessel for Sale
