Rig Master E90 DC Drilling Rig For Sale

Equipment ID: 2506
Equipment name: Rig Master E90 DC Drilling Rig For Sale
Category: Land Rigs
Specifications:

Cantilever triple Drilling Rig for Sale

1200 Hp Diesel Electric Drilling Rig for Sale

Description :

1200HP Diesel Electric cantilever triple Drilling Rig regularly utilized and
ready to work. All components are Canadian & North American stringent
regulatory agency compliant, cold weather ready with recent boiler
recertification, plumbed for steam & electric heat.

Equipment summary :

Diesel Electric cantilever triple built in 2007. Depth rating 5000 m
Box on Box sub structure, AER Class 4 or 5 BOP
Forum™ hydraulic cat walk system.
Rigmaster™ E90 DC powered drawworks
10-line blocks strung to Tesco 350-ton Top Drive
Dual mud tanks c/w dual shale shakers, integral hard top roof system &
mixing shack.
2- 1300 HP triplex slush pumps DC powered
Dog house/water tank combination c/w tool shed
Change shack & accumulator building
#1, #2 & #3 Cummins powered DC gen sets
Power house SCR control building
2 pump houses, Boiler housed in Generator building end
All drill pipe contained in pipe tubs

Mast Type : High Kelly Beam Leg cantilever Triple, 315,000 daN 700,000#
SHL w/12 Lines,racking capacity 5000 m,16,000’– 4-1/2”Drill Pipe.

Substructure Type: Box on Box, with 20’ clear height, rotary capacity of
311,375 daN (350 ton). Setback 311,375 daN (350 ton).
Moves without Cranes

Drawworks : Rigmaster™ E90DC, 90,000 Lbs Single Line Pull,
745kW (1200 hp), with Eaton WC 1150 (Double 36”), and Yonge YZ-208X2
drive.

Support Complex Configuration :

Electrical Power Generation: SCR unit power supplied by 3
Stamford 928 Kw gens powered by Cummins KTA 38-A

Hydraulic Catwalk: Forum™ Hydraulic catwalk

Top Drive: Tesco EXI 600 HP, 311,375 daN (350 ton)

Travelling Block: 5× 42” 311,375 daN (350ton)

Rotary Table: ZP-275(National)

Pipe Spinner: Spinner Hawk Model 950(Optional)

Mud Tank 187 m3 (1187 bbls) with 6 agitators.

Trip Tank Volume: 3.12 M3, Centrifugal Pumps: 3-6"×5"×11"

Shale Shaker: 2-Brandt King Cobra

Features: Integral Lift roof w / tarps

Mud Pumps

Quantity: 2

Type: CSF-1300 (5000 PSI circulating system)

Power: 960 kW (1300 hp)

Stroke: 305mm (12 in)

Drive: Yonge YZ-208X2

Well Control System

Configuration: Annular Preventor, double gate& single rams,twin choke &
Kill lines

Bop Stack Diamater: 280mm (11") (Optional)

Bop Rating: 35000 kPa (5000 psi)

Bop Trim Type: Nace

Bop Type: Shaffer

Choke Manifold: Double wing 3 1/8" 35mPa (5000psi) Remote choke
compatible

Accumulator: Dong Su, 7 atation (Critical Sour compliant),
680 liters (180 Gal.)

Degasser: Dual Poor-boy degassers & tank

Auxiliary Equipment: Rig Manager accommodation (Skid Load), Tool shack,
Change shack SCR unit combination house, Regent 125 HP Boiler, Misc.sub
containers,Flare line rack.

Major component loads (Excluding pipe tubs & spare parts loads) =@ 20
depending on move parameters @45 total location move loads
BOP Stack & Pipe Tubs negotiable
Drill pipe, Drill collars & HWDP NOT included
Tongs, Slips, Elevators, Bails & Handling tools negotiable

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us anemail to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-------------------------------------------------------------------------------------------------
Search Words (for official use only) :
Cantilever triple Drilling Rig - 2007 Built for Sale
2007 Built Diesel Electric Land Drilling Rig for Sale
2007 Built Cantilever triple Drilling Rig for Sale

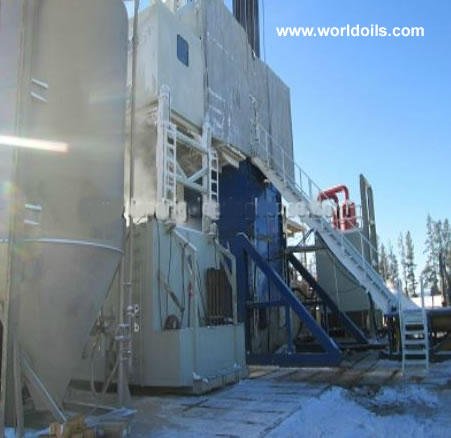

Rig Master E90 DC Drilling Rig for Sale
1200 HP SCR Top Drive 700K Hook Winterized Drilling Rig

-----------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Rig Master E90 DC Drilling Rig For Sale

Images

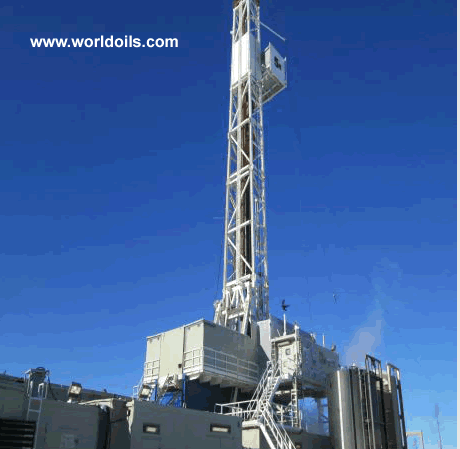

1200 Hp Diesel Electric Drilling Rig for Sale

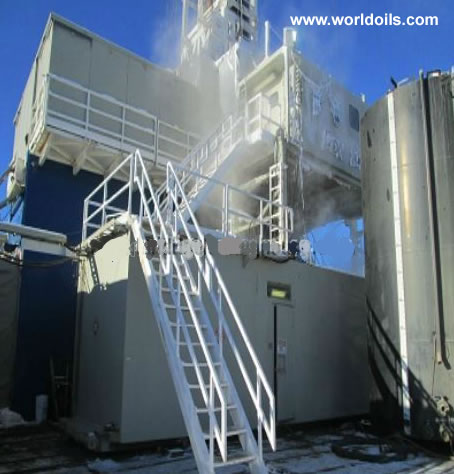

2007 Built Diesel Electric Land Drilling Rig for Sale

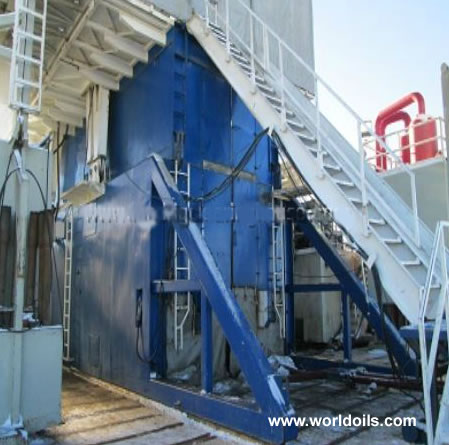

Cantilever triple Drilling Rig - 2007 Built for Sale
