550HP Trailer Mounted Hydraulic Lift, Super Single Rig for Sale - Worldoils Oil, gas and offshore equipment marketplace

550HP Trailer Mounted Hydraulic Lift, Super Single Rig for Sale

Equipment ID: 2532
Equipment name: 550HP Trailer Mounted Hydraulic Lift, Super Single Rig for Sale
Category: Land Rigs
Specifications: 550HP Trailer Mounted Hydraulic Lift Drilling Rig - For Sale
Used Land Drilling Rig - Trailer Mounted For Sale
Used 2009 Built Super Single Rig for Sale

General Description
Year built/Rebuilt ; 2009
Estimated Drilling Depth : 12,000 ft
Estimated Rig Move Loads : 30
Estimated Camp Move Loads : 3
Rated HP : 550

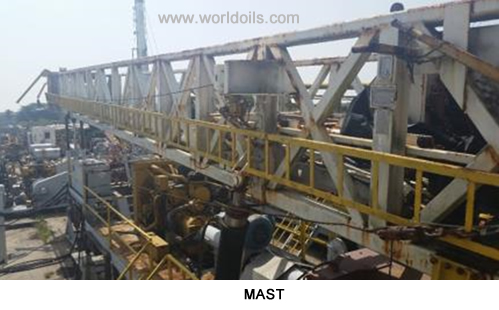

Mast
Height : 72.00 ft
Static Hook Load Capacity: 500,000 lbs
Mast Racking Capacity : N/A

Substructure
Style : Box Type
Height : 14.80 ft
Clear Height : 10.60 ft
Casing Capacity : 500,000 lbs
Maximum Setback Load (lbs.) : N/A

Drawworks
Model : RT400B
Power Rating : 1000 hp
Input Power : 1 ea. Caterpillar C15
Brake Type- Band or Disc : Band
Drilling Line Size : 1 1/8"
Auxiliary Brake : Eaton Airflex-WCBD

Top Drive / Power Swivel
Make : Venturetech
Model : XK-250
Capacity : 250 Ton

No Swivel
No Rotary Table

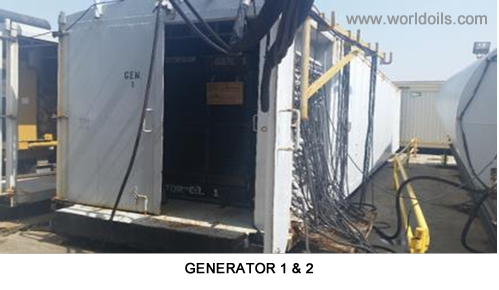

Power Generation
Engines : 1 ea. Caterpillar C 15
Generators : 1 ea. Caterpillar SR 4 B
SCR / VFD / DC/DC : Mechanical Rig

Enhancements
Fork Lift : Caterpillar 930 H
Iron Roughneck : Blohm & Voss Floorhand 9GF 1002
Pipe Arm : US Oil Tools
Power Slip Frame : Access Oil Tools 26-100PD

Mud System

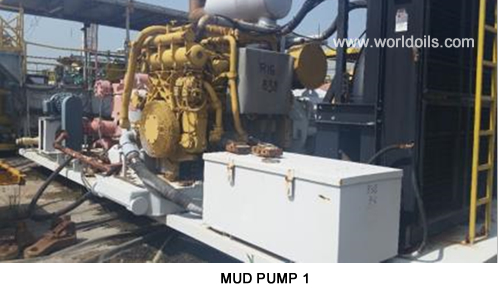

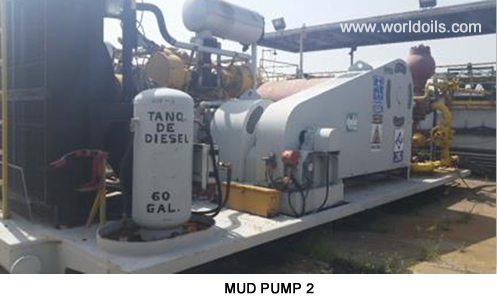

Mud Pumps : 2 ea Hong Hua HHF-1000, 1000 hp @ 140 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 700 bbls
Shale Shakers : 2 ea. Derrick Corporation FLC 504
Desander : Derrick Corporation 10" x 3 Cones
Desilter : Derrick Corporation 4" x 16 Cones
Mud Cleaner : N/A
Centrifuge : N/A

Well Control
Annular : 13 5/8" 5,000 psi, Townsend
Double Ram : 13 5/8" 5,000 psi, Townsend, Type 82
Choke Manifold : MD Cowan, 3 1/8" 5,000 psi
BOP Closing Unit : Koomey, 6 Station 3,000 psi

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
