850HP Trailer Mounted Rack & Pinion Rig for sale

Equipment ID: 2538
Equipment name: 850HP Trailer Mounted Rack & Pinion Rig for sale
Category: Land Rigs
Specifications: 10,000ft Drilling Depth Super Single Rig for Sale
Trailer Mounted Rack & Pinion, Super Single Rig
Parallelogram Style Drilling Rig - For Sale

General Description
Estimated Drilling Depth : 10,000 ft
Estimated Rig Move Loads : 22
Estimated Camp Move Loads : 4
Rated HP : 850

Mast
Height : 80.00 ft
Static Hook Load Capacity: 300,000 lbs
Mast Racking Capacity : N/A

Substructure
Style : Parallelogram
Height : 14.00 ft
Clear Height : 11.00 ft
Casing Capacity : 300,000 lbs
Maximum Setback Load (lbs.) : 300,000

No Drawworks

Top Drive / Power Swivel
Make : Tesco
Model : 250 HMI 475
Capacity : 250 Ton
Torque - Continuous : 21,000 ft-lb @ 56 rpm

No Swivel
No Rotary Table

Power Generation
Engines : 2 ea. Detroit Diesel Series 6063HV35
Generators : 2 ea. Stamford Power System HCI534DIL
SCR / VFD / DC/DC : Rack & Pinion Rig

Enhancements
Forklift : Caterpillar 930H
Iron Roughneck : Canrig Drilling Technology TM80-110-12-X-WX/PCS
Power Slip Frame : TTS Sense 83415-04

Mud System
Mud Pumps : 2 ea Hong Hua HHF-1000
Power Rating : 1000 hp @ 140 spm
Reserve Mud Volume : 0 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 700 bbls
Shale Shakers : 2 ea. Derrick Corporation FLC 504

Desander : American Craftman 10" x 3 cones
Desilter : American Craftman 4" x 16 cones

Mud Cleaner : N/A
Centrifuge : N/A

Well Control
Double Ram : 11" 5,000 psi, Townsend, Type 82

Choke Manifold : Quality Valve & Machine Works Inc., 3 1/8" 5,000 psi
BOP Closing Unit : Burnsco, 6 Station 3,000 psi

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
Search words (for official use only) :
Rack & Pinion, Super Single Drilling Rig for sale
850HP Super Single Rig for Sale
Land Drilling Rig for Sale
Super Single Drilling Rig for Sale
850HP Trailer Mounted Rack & Pinion Rig for sale
10,000ft Drilling Depth Super Single Rig for Sale
Trailer Mounted Rack & Pinion, Super Single Rig
Parallelogram Style Drilling Rig - For Sale
------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - 850HP Trailer Mounted Rack & Pinion Rig for sale

Images

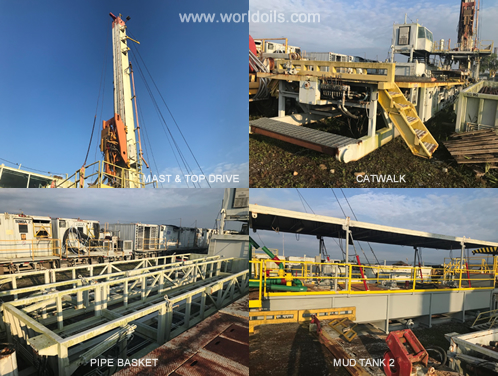

Trailer Mounted Rack & Pinion, Super Single Rig

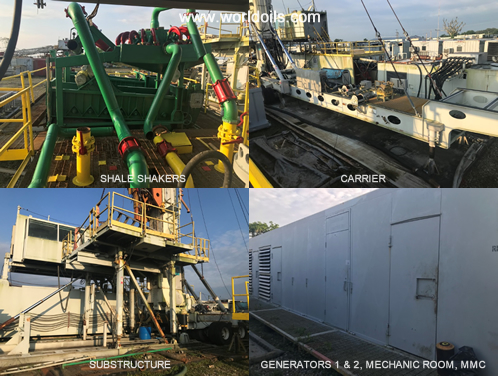

10,000ft Drilling Depth Super Single Rig for Sale

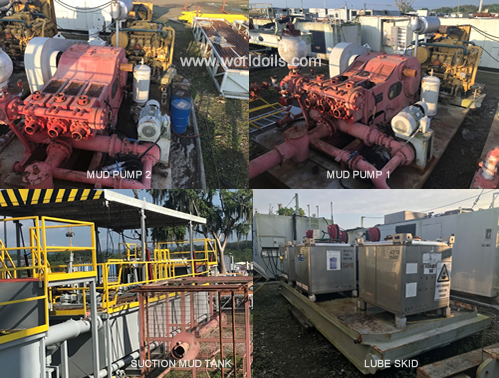

Rack & Pinion, Super Single Drilling Rig for sale
