2012 Built Carrier Mounted 550HP Telescopic Mast Rig for Sale - Worldoils Oil, gas and offshore equipment marketplace

2012 Built Carrier Mounted 550HP Telescopic Mast Rig for Sale

Equipment ID: 2549
Equipment name: 2012 Built Carrier Mounted 550HP Telescopic Mast Rig for Sale
Category: Land Rigs
Specifications:

Platform Style Telescopic Mast Double Drilling Rig

Carrier Mounted Telescopic Mast, Double Drilling Rig
Land Rig for Sale

General Description

Year Built/Rebuilt : 2012
Estimated Rig Move Loads : 10
Rated HP : 550

Mast
Height : 110.00 ft
Static Hook Load Capacity: 250,000 lbs
Mast Racking Capacity : 18,360 of 2-7/8" tubing

Substructure
Style : Platform
Height : 15.00 ft
Clear Height : 11.50 ft
Casing Capacity : 250,000 lbs
Maximum Setback Load (lbs.) : N/A

Drawworks
Make : Loadcraft
Model : H100-11119-100
Power Rating : 550hp
Input Power : 1 ea. Detroit Diesel Series 60
Auxiliary Brake : Parmac 632071X
Drilling Line size : 1"

No Top Drive
No Swivel

Rotary Table

Make : Hacker - 17.5 OBL7-5
Table Opening : 17 1/2
Maximum Load Rating : 250 Ton

Power Generation
Engines : 2 ea. Detroit Diesel Series 60
Generators : 2 ea. Marathon 433RSL4019
SCR / VFD / DC/DC : Mechanical Rig

Enhancements
Power Slip Frame : Cavins TC100-C-HD

Mud System

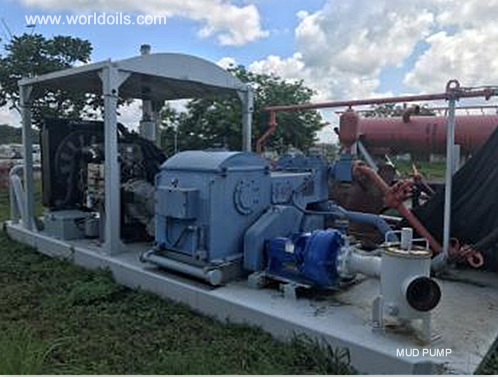

Mud Pumps : 2 ea EWS 440, 440
Reserve Mud Volume : 250 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 350 bbls
Shale Shakers : 1 ea. Derrick Corporation FLC 503

Desander : Derrick Corporation 10" x 2 Cones
Desilter : Derrick Corporation 4" x 8 Cones
Mud Cleaner : N/A
Centrifuge : N/A

Well Control
Double Ram : 7 1/16" 5,000 psi,Shaffer, LWS
Choke Manifold : Total Oilfiels Equipment 2 1/16" 5,000 psi
BOP Closing Unit : Consolidated Pressure Control 5 station 3,000 psi

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
Search words (for official use only) :
Mechanical Rig - 2012 Built - For Sale
2012 Built Carrier Mounted Telescopic Mast for Sale
550Hp Platform Style Telescopic Mast, Double Drilling Rig
Carrier Mounted Telescopic Mast, Double Drilling Rig
Carrier Mounted Drilling Rig for Sale
Used Land Rig for Sale
Carrier Mounted 550HP Telescopic Mast Rig - For Sale
2012 Built Mechanical Drilling Rig
------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - 2012 Built Carrier Mounted 550HP Telescopic Mast Rig for Sale

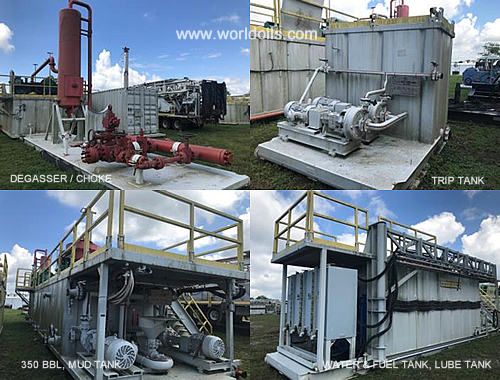

Images
