Nordic Drill DRC-10-A Crawler Drill Rig For Sale - Worldoils Oil, gas and offshore equipment marketplace

Nordic Drill DRC-10-A Crawler Drill Rig For Sale

Equipment ID: 2557
Equipment name: Nordic Drill DRC-10-A Crawler Drill Rig For Sale
Category: Land Rigs
Specifications: Nordic Drill DRC-10-A Crawler Drill Rig for Sale
2017 Built Nordic Drill DRC-10-A Crawler Drilling Rig for Sale

Model : DRC-10-A Drill Rig
Manufacturer : Nordic Drill
Year : 2017
Condition : Used

Description :

2017 Nordic Drill DRC-10-A Crawler Drill Rig

Has 2400 Hours since December 2018 & Drilled 96 Wells in 2017
and 92 Wells in 2018 to date.

All in One Drilling Rig with Dual Rotary, Crawler Mounted Carrier,
12" Max Openings & Slide Angle Mast with Advantages Compared to a
Conventional Air Rotary Drill.

Angle Slide Package:
Allows Drilling Applications for Mining, RC (Reverse Circulation)
Exploration, Anchors, Pilling, Geotechnical, Soil Samples, Etc.

Crawler:
Light Weight & Small means less damage to the drilling sites,
allows set up on difficult terrains & tight access sites,
and less preparation for set up and break down.

Dual Rotary:
Allows Accuracy & Performance in Tough Overburden Conditions,
Good Sampling & Screen Intallations, Facilitates The Extraction
of Casing, Easy to Operate & Cleaninesss on Sites.

Safety:
Offers Safe Drilling Methods, Provided of an Anti-Rotation System.

Top Drive:
Stroke: 16 ft
Hoist: 31,000 lbs
Hoist Speed: 53 ft/min
Pull Down: 23,500 lbs
Pull Down Speed: 71 ft/min
Torque: 6,000 ft x lbs
Rotation Speed: 0-90 RPM

Lower Drive:
Stroke: 10 ft
Hoist: 35,000 lbs
Hoist Speed: 47 ft/min
Pull Down: 26,500
Pull Down Speed: 63 ft/min
Torque: 21500 ft x lbs
Rotation Speed: 0-9 RPM
Maximum Opening: 12"
Engine: CAT C 6.6 Diesel @ 210 hp (Tier 3)
Sliding Mast Stroke: 36"
Welding machine: Hydraulic 225 AMP
Water Pump: Quad Bean 18 GPM
Hydrofrac Pump: 26 GPM @ 1800 psi / 13 GPM @ 2900 psi
Service Winch: 2,000 lbs
Front Winch: M12 12,000 lbs
Pipe Tub: 40 Pipes - 3-1/2"
Safety: Anti-Rotation Top Drive
Maxumum Speed: 3,1 MPH
Weight: approx. 37,400 lbs

Aluminum stairs

Casing clamps under the mast (to break joints, are use of threaded casing)

Cyclone installed on the drill

Location : North America

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

-----------------------------------------------------------------------------------------
Search words (for official use only) :
Nordic Drill DRC-10-A Crawler Drill Rig - 2017 Built for Sale

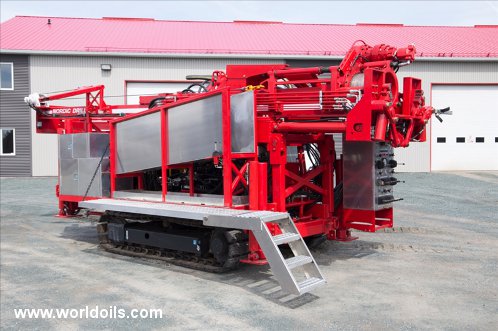

Nordic Drilling Rig for Sale

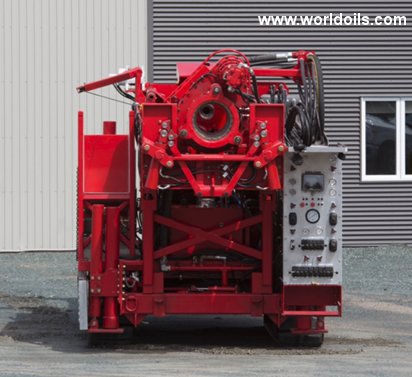

Crawler Drilling Rig for Sale
Used Nordic Drill DRC-10-A Crawler Drill Rig for Sale
Nordic Drill DRC-10-A Crawler Used Drilling Rig
-----------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Nordic Drill DRC-10-A Crawler Drill Rig For Sale

Images

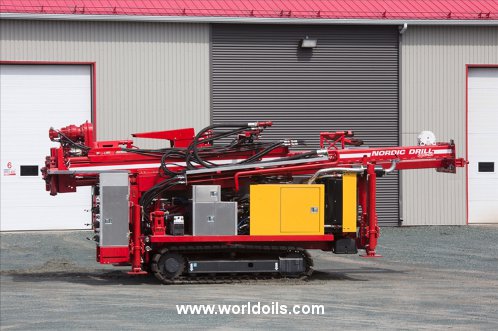

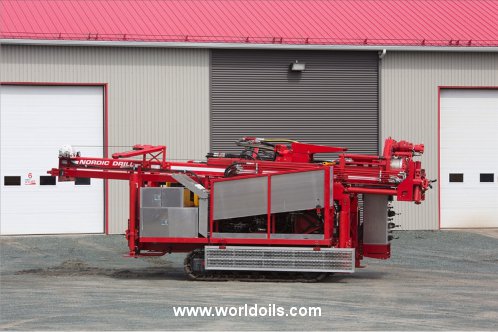

2017 Built Nordic Drill DRC-10-A Crawler Drilling Rig for Sale
