650HP Carrier Mounted Drilling Rig for Sale

Equipment ID: 2576
Equipment name: 650HP Carrier Mounted Drilling Rig for Sale
Category: Land Rigs
Specifications: Carrier Mounted Telescopic Mast, Double Drilling Rig
1985 Built Telescoping Style Rig For Sale
650HP Carrier Mounted Drilling Rig for Sale

General Description
Year Built / Rebuilt : 1985/2011
Estimated Drilling Depth : 8,200 ft
Estimated Rig Move Loads : 39
Estimated Camp Move Loads : 35
Rated HP : 650

Mast
Height : 113.00 ft
Static Hook Load Capacity: 286,000 lbs
Mast Racking Capacity : 10,000 ft

Substructure
Style : Telescoping
Height : 14.10 ft
Clear Height : 11.22 ft
Casing Capacity : 286,000 lbs
Maximum Setback Load (lbs.) : 198,000

Drawworks
Make : National
Model : 4226D
Power Rating : 650hp
Input Power : 1 ea. Caterpillar D3412
Auxiliary Brake : Parmac V-80
Drilling Line size : 1 1/8"

No Top Drive

Swivel
Make : Upetrom
Model : CH 125
Capacity : 125 ton

Rotary Table
Make : Upetrom MRS205
Table Opening : 20 1/2
Maximum Load Rating : 350 Ton

Power Generation
Mechanical Rig

Enhancements
Power Slip Frame : Upetrom

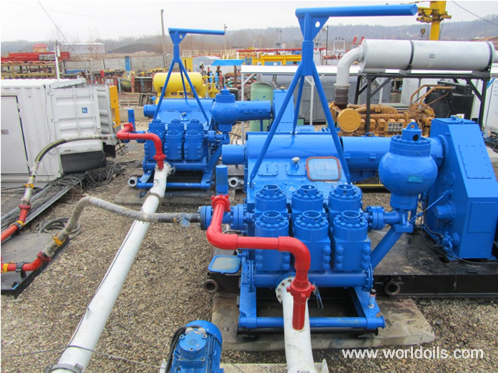

Mud System
Mud Pumps : 1 ea. Upetrom 3PN-1000
Power Rating : 1,000hp @ 150spm
Reserve Mud Volume : 101 bbls
Pressure Rating : 5,000 psi
Active Mud Volume : 906 bbls
Shale Shakers : 2 ea. MI Swaco Mongoose
Desander : Brandt 10"x2 cones

Desilter : N/A
Mud Cleaner : N/A
Centrifuge : N/A

Well Control
Annular : 9" 3,000 psi, Upetrom
Choke Manifold : Upetrom

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
Search words (for official use only) :
Carrier Mounted Telescopic Mast, Double Drilling Rig
1985 Built Telescoping Style Rig For Sale
650HP Carrier Mounted Drilling Rig for Sale
Land Drilling Rig for Sale
2011 Rebuilt Carrier Mounted Telecopic Mast Rig - For Sale
113FT Height Carrier Mounted Telescopic Mast for Sale
650Hp Monobloc Style - Telescopic Mast, Double Rig
Used Land Rig - Carrier Mounted - for Sale
1985 Built Mechanical Rig - For Sale
------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - 650HP Carrier Mounted Drilling Rig for Sale

Images

Carrier Mounted Telescopic Mast, Double Drilling Rig

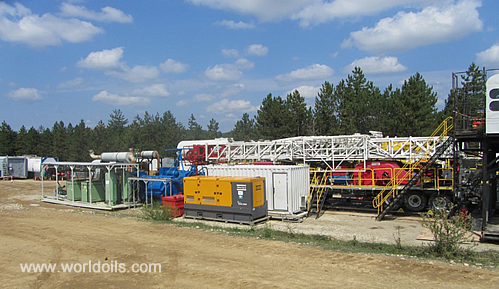

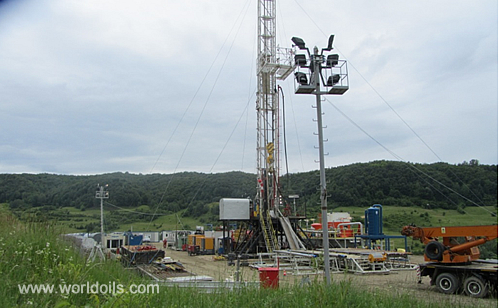

650HP Carrier Mounted Drilling Rig for Sale
