Anchor Handling Tug Supply Vessel for Sale

Equipment ID: 2602
Equipment name: Anchor Handling Tug Supply Vessel for Sale
Category: Ships/Vessels
Specifications: Anchor Handling Tug Supply Vessel for Sale
AHTS Vessel - 1986 Built - For Sale

Description :

General
Year Built : 1986
Classification : ABS

Particulars
Dimensions : 240ft X 52ft X 18.5ft (73.15 m X 15.85 m X 5.64 m)
Draft (Maximum) : 16ft (4.88 m)
Loadline Displacement : 3,770.18 LT (3,830.68 MT)
Clear Deck : 135ft x 44ft (41.15 m x 13.41 m)
Cargo Deck Area : 5,940 sq. ft. (551.82 m2)
Deck Cargo Capacity : 830 LT (843.32 MT)
Deadweight Tonnage : 1,527 LT (1,551.50 MT)

Capacities
Fuel Oil : 178,576 gals. (675.98 m3)
Fresh Water : 23,068 gals. (87.32 m3)
Ballast : 325,615 gals. (1,232.59 m3)
Dry Bulk : 5,120 cu. ft. @ 80 psi (144.98 m3 @ 5.5 bars)
Liquid Mud : 2,230 barrels (354.54 m3)

Machinery
Main Engines : Three (3) EMD 20-645 E7, 10,800 BHP
Bow Thrusters : Two (2) 150TV-D Tunnel
Stern Thruster : One (1) 1,200 HP NASB/Ulstein360° Jet Azimuthing
Total Propulsion HP : 13,200 HP
Propulsion : Three (3) CPP

Generators

Shaft Generators : Three (3) x 2,400 HP/1,800 kW

Ship’s Service Generators : Two (2) x 500 kW

Winch :
Brattvaag BSL 350 W Double Drumwith chain mouse, 350 MT or
926,100 lbline pull or 926 KIPS line pull per drumTwo (2) x 9,800ft
(2,987.04 m) of3” (7.62 cm) wire per drum @ 350 MT

Storage Reels : Two (2) x 11,480ft (3,499.10 m) of3” (7.62 cm) wire
Chain Lockers : Two (2) x 6,000ft (1,828.8 m) of3.5” (8.89 cm) chain each

Special Features
Positioning : DP 2
Tugger : One (1) x 12-Ton ForwardTwo (2) x 10-Ton Aft
Cranes : Two (2) x 10 tons @ 30° radius
Shark Jaws : One (1) x 350 MT
Tow Pins : One (1) x 350 MT
Stern Roller : One (1) x 8ft x 6ft
Firefighting : Two (2) Monitors @ 12,500 GPM

Life Saving Equipment
Four (4) x 25-Man Life Rafts
One (1) x Narwhal SV-400 SOLAS FRC

Accommodations
Accommodations : 41

Electronics
Two (2) Furuno FR-2115 Radars
GMDSS
Iridium Satellite Phone
Marine Technologies Bridge Mate DP 2
Marine Technologies Bridge Mate Autopilot
Furuno Color-View Depth Sounder
Furuno VHF FM-8500 @ Winch Operator Panel
Seven (7) Color Monitors
JRC NO2-127C Inmarsat-C Telex (GMDSS)
SEA 222 Single Sideband Radio with Ringer
JRC NCH-802 Controller MF/HF Radio
JRC NCR-300A Navtex
Raytheon NAV 398 GPS
Furuno FAI50 AIS

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
Search words (for official use only) :
1986 Built Anchor Handling Tug Supply Vessel for sale
Used AHTS for Sale
AHTS - DP2 - for sale
240FT Anchor Handling Tug Supply Vessel
73.15m AHTS is for sale
AHTS - 41 Accommodations - For Sale
------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Anchor Handling Tug Supply Vessel for Sale

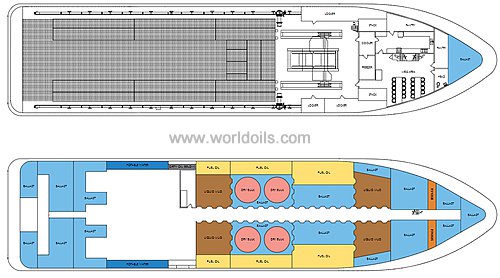

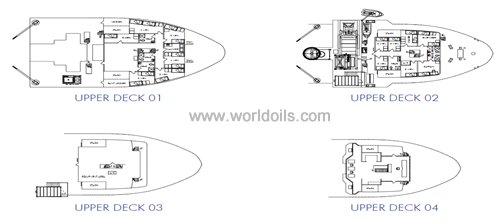

Images
