LTI 1000KP Drilling Rig - 2000Hp - For Sale - Worldoils Oil, gas and offshore equipment marketplace

LTI 1000KP Drilling Rig - 2000Hp - For Sale

Equipment ID: 2635
Equipment name: LTI 1000KP Drilling Rig - 2000Hp - For Sale
Category: Land Rigs
Specifications: LTI 1000KP Drilling Rig
Drilling Rig - LTI 1000KP 2000Hp - For Sale

Description :

General Description :
Make : Lee C Moore
Estimated Drilling Depth : 20,000ft
Estimated Rig Move Loads : 75
Estimated Camp Move Loads : 20
Rated HP : 2000

Mast :
Height : 147.00ft
Static Hook Load Capacity : 1,000,000lb
Mast Racking Capacity : 20,800ft

Substructure :
Style : Parallelogram
Height : 30.00 ft
Clear Height : 25.25 ft
Casing Capacity : 1,000,000lb
Maximum Setback Load : 600,00lbs

Drawworks :
Make : LeTourneau
Model : LDW 1000k
Power Rating :2000hp

Input Power :

2 ea Oilfield

Electric

Marine Inc
TT 1500
Drilling Line Size : 1½"
Brake Type - Band or Disk : Disk

Top Drive / Power Swivel :
No Top Drive

Swivel :
No Swivel

Rotary Table :

Make :

LeTourneau

LW-375

Table Opening : 37 ½"
Maximum Load Rating : 650 Ton

Power Generation :
No Engines
No Generators
SCR / VFD / DC /DC : VFD Rig

Mud System :

Mud Pumps :

1 ea LeTourneau

WH 1612

Power Rating :

1600 hp

@ 120 spm
Pressure Rating : 7,500 psi
Active Mud Volume : 590 bbls
Reserve Mud Volume : 460bbls

Shale Shakers :

3 ea Axiom

Process Ltd.
Mud Cleaner : N /A
Desander : N /A
Desilter : N /A
Centrifuge : N /A

Well Control :

Annular :

135/8" 5,000 psi,

Shaffer

Choke Manifold :

4 1/16" x 31/16

10,000 psi,
Cameron

BOP Closing Unit :

Consolidated

Pressure

Controls
8 stations
3,000 psi

Enhancements :

Power Slip Frame :

Access Oil

Tools 26-100PD

Location : Australia

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------
Search words (for official use only) :

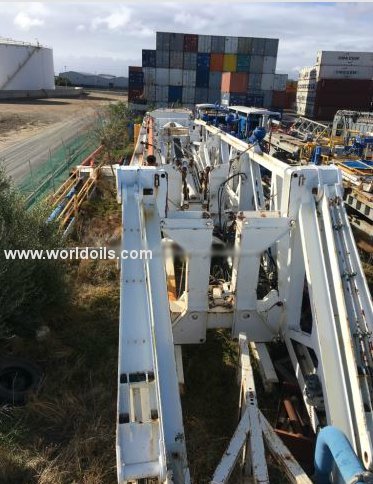

2000Hp LTI 1000KP Drilling Rig for Sale

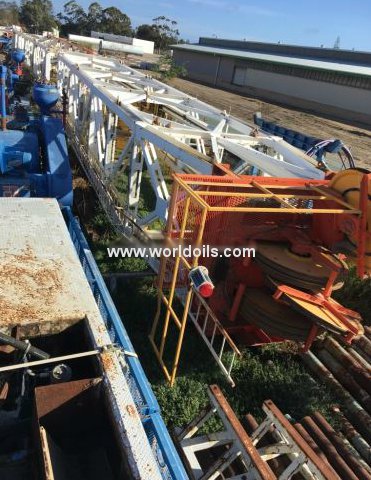

20,000 ft Drilling Depth Land Drilling Rig for Sale
Land Drilling Rig - 2000 HP - For Sale
LTI 1000KP Used Drilling Rig for Sale
LTI 1000KP Drilling Rig - 2000Hp for Sale in Australia
-----------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - LTI 1000KP Drilling Rig - 2000Hp - For Sale

Images

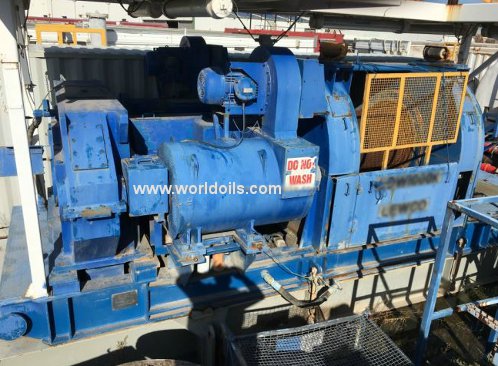

Drilling Rig - LTI 1000KP 2000Hp - For Sale

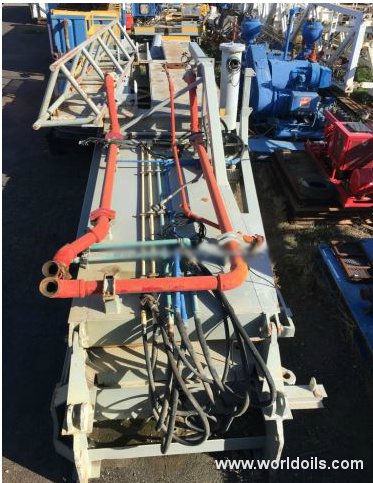

20,000 ft Drilling Depth Land Drilling Rig for Sale
