NOV Rapid Drilling Rig for Sale

Equipment ID: 2653
Equipment name: NOV Rapid Drilling Rig for Sale
Category: Land Rigs
Specifications: NOV Rapid Drilling Rig for Sale
1500 hp Rapid Drilling Rig for Sale

Description :

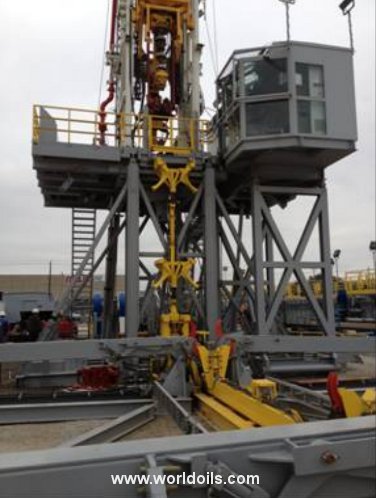

Substructure :
NOV - Slingshot type (2 piece)
Clearance : 20ft with 18ft of clearance
Capacity : 500,000# loading
Six well skidding system

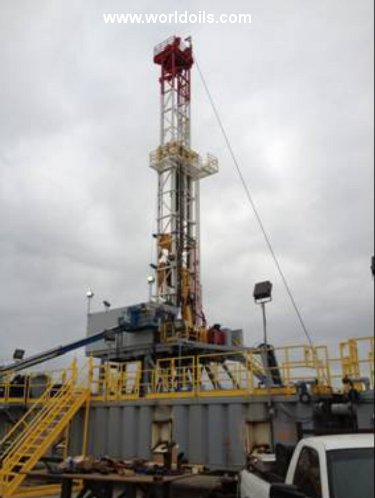

Mast :
NOV - Telescoping

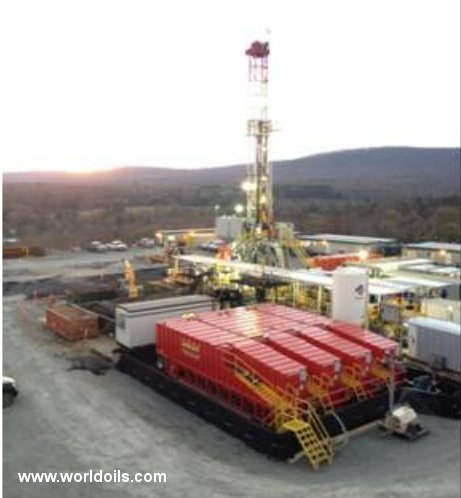

Height : 80ft
Capacity : 500,000#
Winch & Gin Pole : 5,000#

Drawworks :
NOV - SSGD 250 (disc brakes)
Rating : 1500- hp
Capacity : 500,000# on eight 1¼” lines.
Motor : Baylor AC

Top Drive :
NOV - TDS 10R
Rating : 250 ton
Torque Capacity :
36,500 ft/lbs intermitting
20,000 ft/lbs @ 98 rpm continuous
9730 ft/lbs @ 182 rpm continuous

Drillers Cabin :
NOV - Purged
Amphion Controls

Pipe Handling :

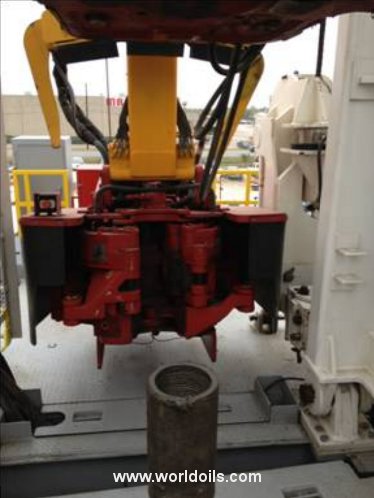

Iron Roughneck - NOV ST - 80R
Range : 4¼” to 8½”
Torque Capacity :
60,000 ft/lbs make up
80,000 ft/lbs brake out
BX - 450 Elevators (250 ton)
Range : 2 7/8”, 5”,7”, 95/8” & 13 3/8”.
PS - 21 Slips (250 ton)
Range : 2 7/8”, 5”, 7”, 9 5/8” & 13 3/8”.
Erector arm, pipe funnel and pipe rack wings.

Mud System :
Mud Pumps - 2 NOV F-1600
Rated : 1,600 hp.

Pressure :

5,000 psi

Relief Valves :

3” OTECO

Screens :

Discharge manifold & Suction skid

Stand Pipe :

5”, 1002

Mud Pits (covered)
Capacity : 625 bbls
Mixing System & skid
Shale Shakers : 2 Derrick
Trip tank : Two 25 bbl tanks & pumps
Rolling Flow Line System (15ft spacing)

BOP Equipment :
11” X 5m Shaffer Annular (flanged)
11” X 5m Shaffer Double Ram (studded)
11” X 5m Mud Cross (flanged with 3 1/8” outlets)
Re-certified by OEM
Choke Line :
3 1/8” X 5m HCR Valve
3 1/8” 5m Manual valve (replace)
3 1/8 Coflex hose :
Three - 15ft - 3 1/8” flanged choke lines
10ft - 3 1/8” flanged choke line
Four - 3 1/8” studded Tees with one filled blind flange
Kill Line 2” Coflex hose
Two : 3 1/8” X 5m manual valves (replace)
Check Valve :
NOV Hydraulic Handling System
3 1/8” X 5m Choke Manifold (hydraulic & manual chokes)
Gas Buster
Flare Stack & line

Power :
Two 3512C Caterpillar Engines
Rated : 1476 hp @ 1200 rpm
Two Baylor Generators
Rated : 1750 kVa, 600 volts / 60 HZ
NOV VFD & MCC
Bi-fuel System

Drill Pipe :

370 jts - 5” 19.5 #/ft., NC 50

Grade :

S-135

Range :

III (40ft)

Inspected by Drilco
Critical Capital Spares :
F-1600 Mud Pump
Baylor 1750 kVa Generator (for repair)

Winch – 5,000#

Hydraulic Cylinders :
Substructure Raising (repairing NOV)
Derrick Raising (repairing NOV)
Derrick Scoping (repairing NOV)
BX 450 Elevators
PS 21 Slips

Skid System Description :

Applied Machinery Corporation custom built skidding system.
Capable of 75ft skidding.
Key description :

Rig Skid System :

12” Elevated Skid
Draworks Skid Section
Starter Skid Section (ODS/DS X 43ft)
Standard Skid Section (ODS/DS X 15ft)
Log of Pins, Spreaders, and Claws
AMC Hydraulic Drill Line Spooler
Festoon Track

Hydraulics :
2 Hydraulic Cylinders
10” Bore X 25” Stroke
3,000 psi Working Pressure
Associated Hoses and Fittings

Festoon :
8ft X 35ft X 12” Master Skid
Capable of supporting a 75ft Skid
4” Integrated Track and Roller for Festoon and Grasshopper

Shaker and Flowline Header :
10” “Mona-Flow” line with fittings and jets
Rolling capability to support skids
Trip Tank and mud bucket hoses

Rig Load List

Single Well Pad	Loads	3 Well Pad
Shaker Pit	1	Shaker Pit
Suction Pit	2	Suction Pit
Trip tank & Choke Manifold	3	Trip tank & Choke Manifold
F- 1600 Mud Pump	4	F- 1600 Mud Pump
F- 1600 Mud Pump	5	F- 1600 Mud Pump
Utility Skid	6	Utility Skid
3512 Caterpillar Gen Set	7	3512 Caterpillar Gen Set
3512 Caterpillar Gen Set	8	3512 Caterpillar Gen Set
Air Compressor Skid	9	Air Compressor Skid
VFD	10	VFD
Festoon & Grasshopper	11	Festoon & Grasshopper
Fuel Tank	12	Fuel Tank
Rig Water Tank	13	Rig Water Tank
Drawworks / Koomey	14	Drawworks / Koomey
Substructure	15	Substructure
HPU Skid & Grasshopper	16	HPU Skid & Grasshopper
Drillers Substructure	17	Drillers Substructure
Drillers Cabin	18	Drillers Cabin
Drill Line Spool	19	Drill Line Spool
2 Pipe Wings	20	2 Pipe Wings
2- Pipe Wings &Arm	21	2- Pipe Wings &Arm
Flow line, Pipe Handler, CoFlex	22	Flow line, Pipe Handler, CoFlex
Flare Box & Line	23	Flare Box & Line
2 sets Pipe Racks	24	2 sets Pipe Racks
2 X Hose Baskets	25	2 X Hose Baskets
Drill Pipe: 5" , 19.5 #/ft	26	Drill Pipe: 5" , 19.5 #/ft.
Drill Pipe: 5" , 19.5 #/ft	27	Drill Pipe: 5" , 19.5 #/ft.
Drill Pipe: 5" , 19.5 #/ft	28	Drill Pipe: 5" , 19.5 #/ft.
Pipe Bunks X 4	29	Pipe Bunks X 4
Tool / Nipple House	30	Tool / Nipple House
Hydraulic Shop	31	Hydraulic Shop
Parts House	32	Parts House
BOP in Cradle	33	BOP in Cradle
Stairs & Porches	34	Stairs & Porchesin Cradle
Mats X 5	39	Mats X 5
	44	Flow Line X 2
	48	Skid System X 4

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------
