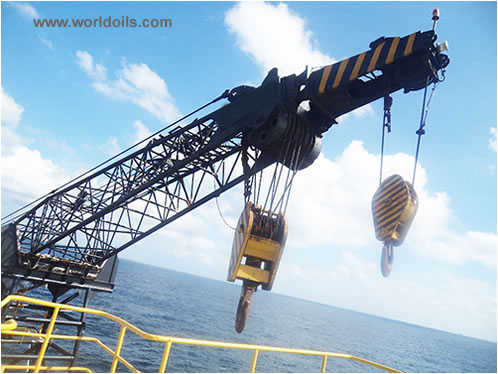

Crawler Crane 600 T for Sale

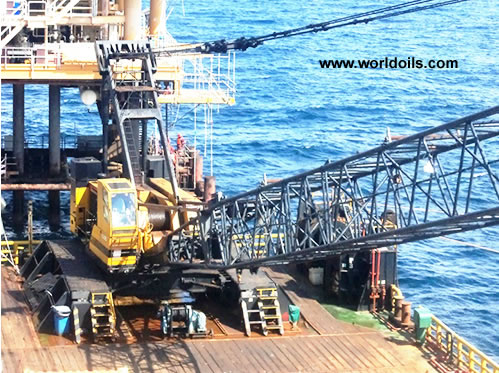

Crawler Crane with 450 Ton Skyhorse Attachment
1982 Built Crawler Crane for Sale

Principal Particulars
Built year : 1982
Manufacturer : American Hoist & Derrick Company

Classification
ABS consulting, API (2C)

Capacities
Lifting capacity : 122 t @ 12.7 m radius (Boom angle: 80.1 deg.)
Engine : Cummins KTA 1150 c

Dimensions & Load Chart
Dimensions :
Overall height : 11.563 mtrs
Overall length : 68.5 mtrs.
Boom length : 61 mtrs.
Boom type :
94 H Tubular Chord boom with super sky horse attachment & trailing counterweight

Load line chart (Please refer full load & curve chart) :
Radius (m) / Boom Angle (deg.) / S.W.Load (kgs.)
10.7 m / 82.1 / 135930 kgs
12.2 m / 80.6 / 116470 kgs
15.2 m / 77.7 / 90070 kgs
18.3 m / 74.8 / 71380 kgs
21.3 m / 71.8 / 57860 kgs

Hoists & Other Features
Boom hoist :
Minimum breaking force : 460 kn (46.9 t)
Reeved with : 25.4 mm, 292.60 mtrs.
Max. Boom angle : 82.1 deg.

Auxiliary hoist :
Measured breaking force : 598.72 kn
Wire rope : 1-1/8" (28.5 mm), 2125 fts
Aux. block capacity : 10.5 t
Single line speed :
Nominal rating - 155 fpm, high speed rating: 275 fpm

Other features :
Flood lights : 2 sets x 400 watt
Simultaneous operation : Capable of two function with full load & speed.

Main Hoist
Measured breaking force : 741 kn (75.6 t)
Wire rope : 1-1/4" (31.8 mm), 3600 fts.

Single line speed -
Nominal rating : 155 fpm
high speed rating : 275 fpm
Traveling block capacity : 122 t
Load indicator : Electronic load indicator

Rotation :
Rotation direction : 360 deg. swing with load.
Swing speed : 2.15 rpm max.
Transmission type (Crawler crane) : Mechanical with torque convertor

Price & Terms : Please use the email form below to enquire.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
------------------------------------------------------------------------------------------------------------------
