Gus Pech GP-1300 Brat Series Drilling Rig - For Sale - Worldoils Oil, gas and offshore equipment marketplace

Gus Pech GP-1300 Brat Series Drilling Rig - For Sale

Equipment ID: 2777
Equipment name: Gus Pech GP-1300 Brat Series Drilling Rig - For Sale
Category: Land Rigs
Specifications: Gus Pech GP-1300 Brat Series Drilling Rig for Sale
Drilling Rig - Gus Pech GP-1300 Brat Series - For Sale

Model : GP-1300 Brat Series Drill Rig
Manufacturer : Gus Pech
Year : 2003
Condition : Used

Description :

Gus Pech GP-1300 Brat Series Drill Rig
Single Owner Unit and Delivered in 2003
Mounted On 2003 Sterling Truck 6x4
Cat Diesel Engine – PTO Driven
Rig Has 18,200 Hours
New Engine At 12,900 Hours – (5,300 Hours On Engine)
12" Tube Style Mast
Two-Way Cross Top Head Slide
Planetary Top Head Drive
Gp-1300 Hydrostatic Top Head Drive 0-65 Rpm@ 13,000 Ft Lbs.,
0-145 Rpm@ 5.828 Ft Lbs. Torque 24ft Stroke, Cable, Hydraulic Cylinder
Actuated Pulldown/Retract Drill System (Pulldown 18,412 Lbs./Retract: 24,537 Lbs.)
Bypass Circuit For Rapid Pulldown/Retract System
Pulldown/Holdback Feed Control System
Two Speed Retract
Dual Hydraulic Pump Drive System With Enlarged Gear Pumps For Increased Speed
Oil Cooling System
Standard Lighting (2)
Tower Tool Carrier For Transportation
4 Point Outriggers : 5ftx36"X3* Front Behind Cab Hosed Together
With One Control And 5"X30"X3" Rear
Operator Controls Including Tachometer, Key Ignition Switch,
And Gauges Pertinent To The Operation Of The Drill
Angle Drilling Lower Tower Supports
Operator Foot Stand
Hydraulic Slide Base
Hydraulic Lowering Brat E Style Foot Guide With Hydraulic Too!
Clamp (Enlarged To Handle 8-1/4" Id Augers)
Hydraulic Swing Around Jib With Hydraulic Extension
2.000# (First Layer) Gp Winch, With Large Dia. Drum, W/Headache Ball,
1/4" X 150ft Cable With Swivel Rook, on Jib
12.000# (First Layer) Pullmaster Winch with Rapid Reverse
1/2ft X 200ft Cable With Swive! Hook
Diedrich Sample Hammer System
Stationary Drill Rod Rack (10ft) With Hammer Holder For Nwj (150ft - 30 Rods)
Special 5ft Rod Rack Under 10ft Rod Rack For 20 AWJ Rods
Swing Around Auger Racks (2) Under Both Sides of Rig
Swing Around Auger Rack, Rear Mounted As Per Basil Rig
2-1/2" U-Joint Attachment With 2" Adapter
2 Sets Auger Guide Bushing (8-1/4" Id.)
Cotta Heavy Duty Transfer Case System

Location : North America

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
Search words (for official use only) :
2003 Built Gus Pech GP-1300 Brat Series Drilling Rig for Sale
Gus Pech GP-1300 Brat Series Drilling Rig - 2003 Built for Sale
Used Gus Pech GP-1300 Brat Series Drilling Rig for Sale
Gus Pech GP-1300 Brat Series Used Drilling Rig for Sale
Gus Pech Drilling Rig for Sale in North America
-------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Gus Pech GP-1300 Brat Series Drilling Rig - For Sale

Images

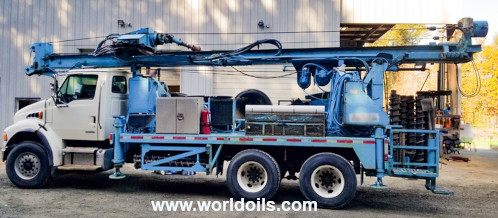

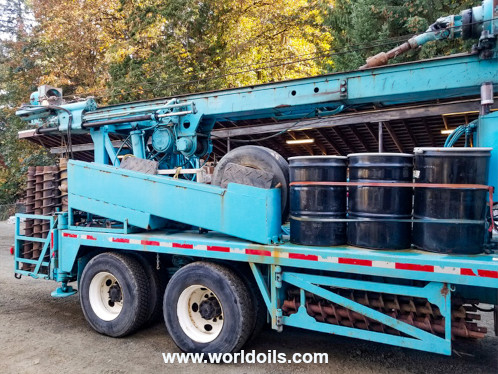

Drilling Rig - Gus Pech GP-1300 Brat Series - For Sale

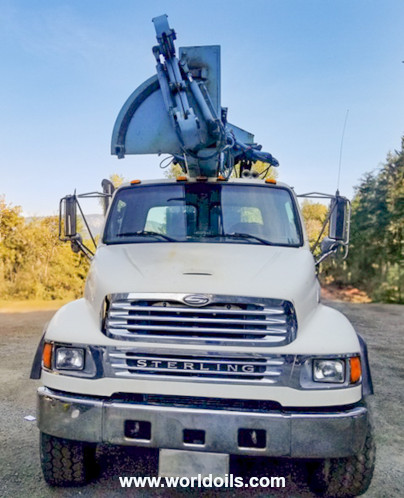

2003 Built Gus Pech GP-1300 Brat Series Drilling Rig for Sale

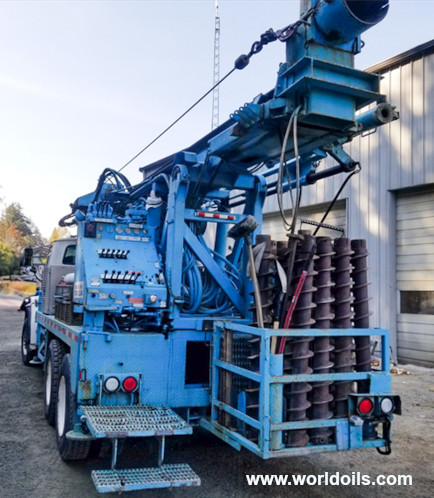

Gus Pech GP-1300 Brat Series Drilling Rig - 2003 Built for Sale
