450 t Hydraulic Land Drilling Rig for Sale

Equipment ID: 2807
Equipment name: 450 t Hydraulic Land Drilling Rig for Sale
Category: Land Rigs
Specifications: 450 t Hydraulic Land Drilling Rig for Sale

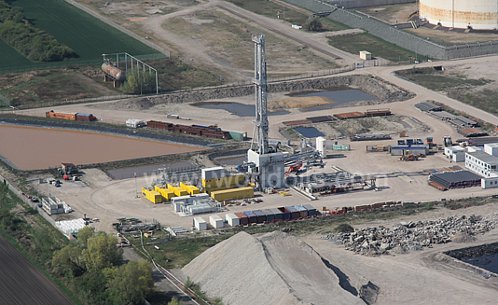

Used Hydraulic Rig for Sale

Description :

Specifications
Mast
Type : Twin profile
Base : 8.9 m
Total Rig Height : 52 m max
Hoisiting Capacity : 450 mt

Substructure
Type : Box on Box
Height : 8.9 m
Casing Load : 450 mt
Set Back Load : Unlimited
Pipe Handling : Automated

Hoisting System
Type : Hydro Cylinders
Power : 1600 kW
Velocity :0.7 m.s-1

Tope Drive
Type : Hydraulic
Capacity : 450 mt
Torque : 40 k.N.m @ 150 rpm
Max Torq : 62 KNm @ 80 rpm
Max Speed : 220 rpm

Rotary Table
Table Opening : 37" 1/2
Static Load : 450 mt

BOP Equipment
Diverter : 29' 1/2 - 500 psi
Mud Cross / Ball Valve : 29 1/2' By 12 ' 900#
BOP : 20' 3/4 3000 psi
Annular : 3000 psi ,
Double FLG : Ram 5' 1/2 / 5' / 13 5/8 /Blind ram
BOP : 13" 5/8 - 10 000 psi
Annular : 5000 psi
Double/Single : Ram 5' / 5 1/2 ' / VBR 3 1/2 X 5 1/2, BSR / Ram 9 5/8' / 7'
Manifold : 3' x 10 000 psi
Chokes : 2 Hydro
Control Unit : 1536 l - 330 bar

Power Group
Electrical Transformers : 20 000 V - 50 Hz
Power Unit : To connect generators and or transformers (optionnal)
Transformers : 2x 3 150 kVA
Engine/Generator Type : MTU / LeroySomer
Generator Rating : 4x 1850 kVA

Hydraulic Power Unit
Electrical Motor : 4 500 Kw / 533 l/mn
Hydraulic Tank : 10000 I

Mud Pump
Type Triplex : Shäfer & Urbach
Power Rating : 3x 1600 HP
Standpipe Pressure : 7 500 psi
Liner Size : 4.5' to 8'

Shale Shaker
BRANDT Type Cobra : 4

Mud Tank
Capacity : 360 m3
Hopper : 2

Drill Pipe
DP -
5' 25,5# 4 1/2 if
5 1/2 ' 24.7# 5 1/2 fh
3 1/2' 15,50# 3 1/2 if

BHA
DC/HWDP -
DC 9 1/2
DC 8 1/4
DC 6 1/2
DC 4 3/4
HWDP 5' 50,61#
HWDP 5 1/2 ' 51,37#
HWDP 3 1/2 ' 26#

Additional Spec

Skidding equipment
Iron Roughneck
Automated pipe racks
Soundproof rig floor, generators ans pumps
Reduced footprint
CE, ATEX, and API compliant
Safety equipment

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
