AHTS for Sale

Equipment ID: 2846
Equipment name: AHTS for Sale
Category: Ships/Vessels
Specifications: AHTS for Sale
Anchor Handling Tug Supply Vessel - 2004 Built - For Sale

Description :

General
Year Built : 2004
Vessel Type : Anchor Handling Tug Supply Vessel

General Particulars
Dimensions : 211.12ft X 49.21ft X 19.69ft (64.35 m X 15.0 m X 6.0 m)
Maximum Draft : 16.08ft (4.90 m)
Clear Deck Area : 4,736.12 sq. ft.(440 m2_
Deck Cargo Capacity : 570.84 LT (580 MT)
Gross Tons : 1,623.94 LT (1,650 MT)
Net Tons : 787.37 LT (800 MT)
Deadweight Tonnage : 2,165.25 LT (2,200 MT)

Capacities
Fuel Oil : 253,605.16 gals. (960 m3)
Ballast : 89,818.49 gals. (340 m3)
Potable Water : 92,460.21 gals. (350 m3)
Dry Bulk : 6,356.64 cu. ft. @ 80 psi (180 m3 @ 5.5 bars)
Liquid Mud : 1,961.54 barrels (311.86 m3)

Machinery
Main Engines : Two (2) 3608 Caterpillar, 6,598 BHP
Bow Thrusters : One (1) TT 1300 DPN 700 BHP
Propulsion : Two (2) x 3,200 mm with nozzle
Speed : 13 knots
Generators :
Two (2) x 1,000 kW, One (1) x 277 kW
One (1) x 77 kW emergency
Winch:
Waterfall double drum, 200 MT;
Two (2) x 3,937.01’ (1,200 m) of 64 mm wire @ 300 MT

Special Features
Ship Motion : One (1) Moss Type Roll Reduction Tank
Positioning : DP-1
Tugger : One (1) x 4.92 Tons (5 MT)
Crane : One (1) x 4.04-ton (41 MT) capacity
Shark Jaws : One (1) set x 246.05 T (250 MT)
Tow Pins : Two (2) sets x 157.47 T (160 MT)
Stern Roller : One (1) x 2,500 mm
Rudder : Two (2) Spade/Flap Type
Firefighting : 1,200 m per hour

Classification
ABS : A1
ABS : Towing Vessel
ABS : FiFi Class 1
ABS : AMS
ABS : DPS-1

LifeSaving Equipmet
Two (2) x 25-Man Viking Life Rafts
One (1) x Norsafe Rescue Boat with davit

Electronics
Two (2) Furuno MU-201 CR ARPA Radars
950-E Gyro Repeater
Two (2) Sailor RT 4822 VHF DSC Radios
Skipper Depth Sounder
Sailor KDU 1905 AIS
Robertson AP9 MK 3 Autopilot
Simrad GN33 GPS
Calypso Speed Log
JRC Navtex Receiver
Two (2) Sailor Inmarsat-C GMDSS
Sailor MF/HF SSB
Servomaster Fire Alarm Monitor
Kockum Sonics Automatic Fog Signal
Magnetic Compass
Satellite Phone
Two (2) SARTs
406 EPIRB
Meridian Gyro Compass
Marine Technologies Dynamic Positioning System

Accommodations
Accommodations : 24

Price & terms : Please enquire using the email form below

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.
-----------------------------------------------------------------------------------------
Search words (for official use only) :
64.35 m Anchor Handling Tug Supply Vessel for Sale
Used AHTS for Sale
AHTS - 24 Accommodation Capacity for Sale
2004 Built Anchor Handling Tug Supply Vessel for Sale
Used AHTS - For Sale
-----------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - AHTS for Sale

Images

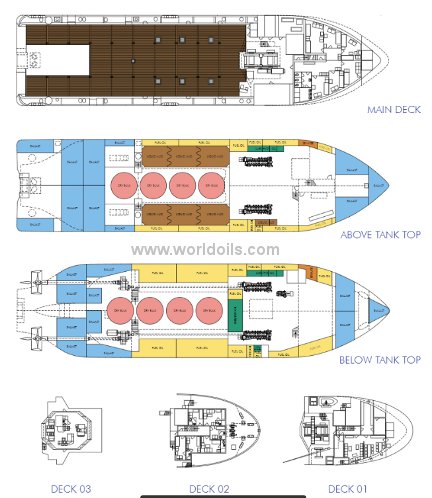

Anchor Handling Tug Supply Vessel - 2004 Built - For Sale
