Reefer Containers - 10 foot For Sale

Equipment ID: 287
Equipment name: Reefer Containers - 10 foot For Sale
Category: Miscellaneous Equipment
Specifications:

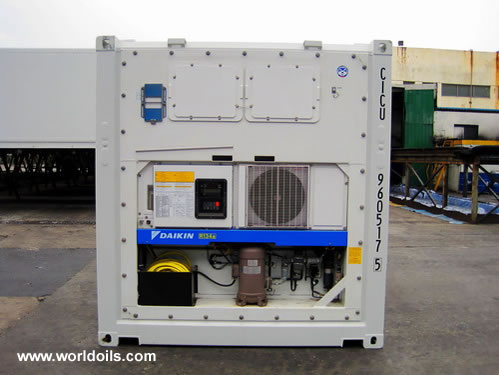

Refrigerated Container
Marine Reefer Containers
10 foot Reefer Containers For Sale

Dimensions

External dimensions

Length : 2991 mm

Width : 2438 mm

Height :   2591 mm

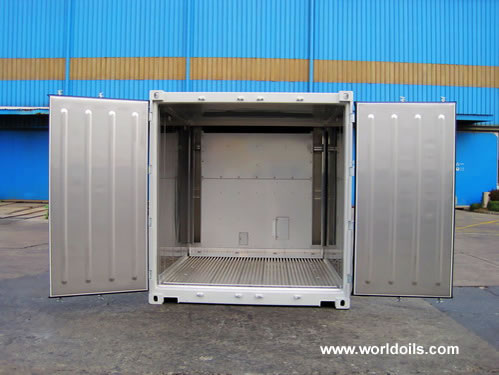

Internal dimensions
Length :   2389mm
Width :      2280 mm
Height :     2273 mm

Door opening

Door width : 2290 mm
Door height : 2264 mm

Cargo access height : 2221 mm

Capacity : 21.4 cbm

Ratings

Max. gross weight : 11000 kg tare weight incl.
Colling unit : 2700 kgs

Max. payload : 8300 kgs

Air leakage rate : 3 cbm/hr (at 25.4 mm H2O)

Heat transfer coefficient : 18 kcal/hr°C max. (u20)

Allowable stacking

weight (1.8G) 23000 kgs

Material

Cladding & Frames :

External
Side : Corten 2.0 mm
Roof : Corten 2.0 mm
Base : Corten 2.0 mm
Door : Corten 2.0 mm
Front corner posts : Corten 6.0 mm
Rear corner posts : Corten 6.0 mm
End rails : Corten 6.0 mm
Top side rail : Corten 6.0 mm
Bottom side rail : Corten 6.0 mm

Internal
Side : HGSS 0.7 mm
Roof : AL. 0.8 mm
Base : 40 mm high AI T-floor
Door : HGSS 0.7 mm
Front corner posts : Corten 6.0 mm
Rear corner posts : 10.0 mm channel type & 6.0 mm inner

Cooling unit

Machine available : Carrier/Daikin/Thermo King

Cooling capacity (w) : 6300/5580 at -18°C Inside / +38°C Outside 60/50Hz

Main circuit : 3 Phase AC 440, 460V/380, 400, 415 60/50Hz

Consumption (KW) : Max. 13.5 60Hz

Please contact us on mail@worldoils.com for further information

-----------------------------------------------------------------------------------------------
