1200T SWL Pedestal Crane - For Sale

Equipment ID: 2980
Equipment name: 1200T SWL Pedestal Crane - For Sale
Category: Cranes / Lifting equipment
Sub Category: Floating Cranes
Specifications: 1200T SWL Pedestal Crane for Sale
1200T SWL Pedestal Crane - Two Units for Sale

Description :

Principal Particulars :
Maker : NOV/Am-Clyde
Model : ATL-60
Build : 2012
Class : DNV incl. man riding
Crane Voltage : 690V, Crane equipped with 6,6KV transformers

Crane Capacities :
Capacity Main : 1200t@14-31m, 600t@50m, 250t@70m
Capacity Aux : 500t@20.3-60m,120t@100m
Capacity Whip : 50t@22.9-113.4m
Man-riding Capacity : 5 ton all radii
Boom Length (from center line of boom foot pin) :
Length to main fall upper block sheaves : 85.5m
Length to auxiliary fall upper block sheaves : 107.0m
Length to whip fall jib tip sheaves : 115.0m
Operating Radius :
Main fall : 18.0-91.0m
Auxiliary fall : 20.0-105.0m
Whip fall : 22.55-113.41m

Winches :
Main hoist winch : 66.8MT single linepull at 64m/min,4x186KW
Aux hoist winch : 68.7MT single linepull at 62m/min,4x186KW
Whip hoist winch : 27.5MT single linepull at 158m/min,4x186KW
Boom hoist winch : 2.3MT single linepull at 26-61m/min,3x186KW
Swing drives : 6x149KW, Swing speed 0,3RPM
Tugger winches,4xload control : 25MT single line at 16m/min,75KW each

Location : Netherlands

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
Search words (for official use only) :
2012 Built 1200T SWL Pedestal Crane for Sale
1200T SWL Pedestal Crane - 2012 Built - For Sale
1200T SWL Pedestal Crane - Two Units for Sale

2012 Built 1200T SWL Pedestal Crane for Sale

1200T SWL Pedestal Crane

-------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - 1200T SWL Pedestal Crane - For Sale

Images

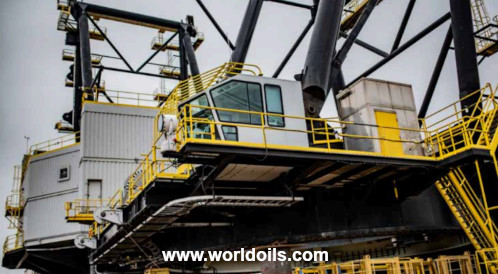

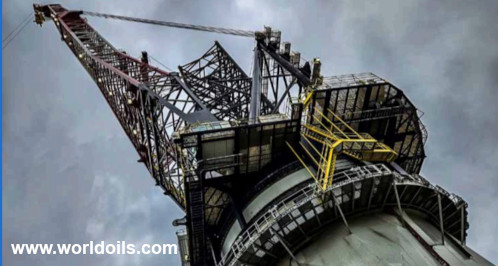

2012 Built 1200T SWL Pedestal Crane for Sale
