Multi Purpose supply/Utility Vessel for Sale - New building

Equipment ID: 302
Equipment name: Multi Purpose supply/Utility Vessel for Sale - New building
Category: Ships/Vessels
Sub Category: Supply/Utility Vessel
Specifications:

Multi Purpose Supply/Utility/Dive Vessel for Sale
Multi Purpose Supply Vessel for Sale - New building
New Multi Purpose Utility Vessel for Sale
New building Supply Vessel

Vessel :
Build : 2009
Classification : RINA C+HULL + MACH, SUPPLY VESSEL,COASTAL
GRT / NRT : 222/67

Main Particulars :

Length O.A. : 29.50m

Breadth Moulded : 9.30m

Depth Moulded : 3.30m

Draft (Designed) : 2.45m

Machinery :

Main Engines :
2 x 1000 BHP Cummins KTA 38M1 1800 rpm

Total 2000 BHP

Gearbox :
2 x MASSON / REINTJES or equal

Reverse Reduction gearbox

Generators :
2 x Cummins 6 CTA 156 kVA each

Alternator : Newage Stamford ( 380 / 220 V- 50hz )

Bow Thruster :
100 BHP Electric Driven Bow Thruster

75 Kw - 100 hp at 1500 rpm

Propellers : 2 x 4 bladed Fixed Pitch Propellers

Steering Gear :
2 set Hydraulic Cylinders driven by electric motor

hydraulic power back

Performance :

Maximum Speed : 13 knots

Max.Fuel.Consump. : 150 lt/hr each engine

Economical Speed : 11 knots

Econ.Fuel.Consump. : 90 lt/hr each engine

Range : appr 20 days

Deck Equipment :

Anchor Windlass :
1 x Electrical driven 22mm Chain 570 kg Anchor

Crane :
1 x 20 tons Hydraulic Knuckle Boom Deck Crane

Max 16 mt outreach

Winch :
1 x 10 tons Double Drum hydraulic Winch

30mm 800 mt ( ttl steel wire capacity )

A-frame :
10 tons Hydraulic A-Frame 3 mt outreach from stern

Stern Roller : Yes
Mooring Capstan : 2 x Hydraulic and 2 x Electric driven

Cargo Capacities :

Deck Cargo : 155 tons

Deck Strength : 2.2 tons / sqm

Deck Area : 110 m2

Accommodation :

Total 16 men

Upper deck :
3 x Cabin 2 berths ( total 6 men )

2 x Cabin single berth ( total 2 men )

1 x Mess / Dining room

Main deck :
2 x Cabin 2 berths ( total 4 men )

1 x Cabin 4 berths ( total 4 men )

1 x Mess / Dining room

1 x Galley

Airconditioning : Fully Aircondition - Chiller System

Radio & Navigation Equipment :

Radar : 1 x JRC - JMA 5110 Marine color LCD radar set
Echo Sounder : 1 x JRC - FF 60 (JFC 600) color echo sounder 50/200 KHZ.set
Gyro Compass : 1 x Comnav GPS - 11210001 - Vector G2 GPS Compass
Magnetic Compass : 1 X Lilley&Gillie SCH 146 (MK2002) sestreline magnetic compass

Auto Pilot : 1 x NAVITRON Autopilot - NT 921 MK II - Autopilot set

GPS Navigator : 1 x JRC GPS - JNAV 500 - GPS Navigator set

VHF : 2 x ICOM V.H.F - IC-M31 -Marine hand held V.H.F.

EPRIB : 1 x Jotron EPIRB - 95475 - Tron 40S EPIRB

Portable VHF (GMDSS) : 1 x ICOM VHF - IC-M411- Marine VHF set ( with DSC funtuanility)

SART : 1 x Jotron SART- SART 20 - Radar Transponder

Navtex Receiver : 1 x JRC Navtex - NCR 333 - Navtex receiver set

AIS : 1 x JRC A.I.S. - JHS 182 -AIS-Automatic identification system

Fire Fighting Equipment :

Internal Fire-fighting : CO² Gas fixed fire-smothering for engine room

Fire Pump : 1 x fire pump 7.5 kw 2900 rpm

Life Saving Equipment :

Liferafts : 2 x 10 person Liferaft in rigid container

Lifejackets : 20 x Lifejackets retro-reflective type

Resque Boat : 3.60 mt Inflatable boat with 15 bhp outboard motor

Tank Capacities :

Fuel Oil Capacity : 90.000 litres

Fresh Water Capacity : 25.000 litres

Sewage Tank Capacity : 4.500 litres

Luboil Tank Capacity : 1.000 litres

Transfer Pumps :
Fuel Oil (Cargo) : D.O. overboard pump - 5.5 kW - 40 cbm/h

Fresh Water (Cargo) : FW overboard pump - 5.5 kW - 30 cbm/h

General Features :
Forward and Aft Bridge Control (Bridge / Maneuvering Stations)

Deck Electrical Socket ( Weatherproof )

Provision Cold Store 10 cbm ( minus 5 degree )

Fuel Seperator 760 lt/hr ( Alfa Laval )

Wood covered deck

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

------------------------------------------------------------------------------------------------------------------------------
Search words(for official use only) :
Multi Purpose supply Vessel for Sale - New building
Offshore MPV for sale
New MPV for sale Multi Purpose Diving support Vessel for Sale - New building
MPV for sale
New Utility vessel for sale
----------------------------------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Multi Purpose supply/Utility Vessel for Sale - New building

Images

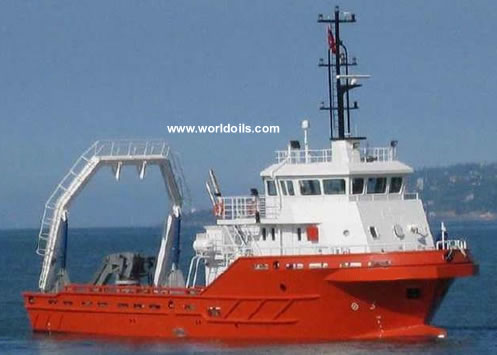

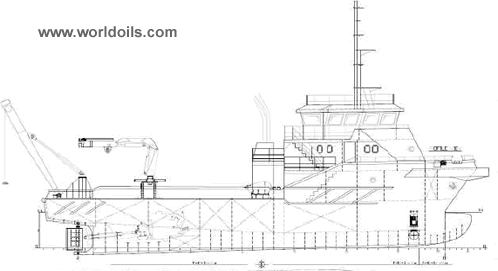

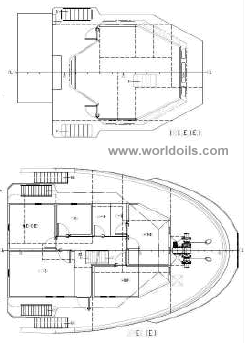

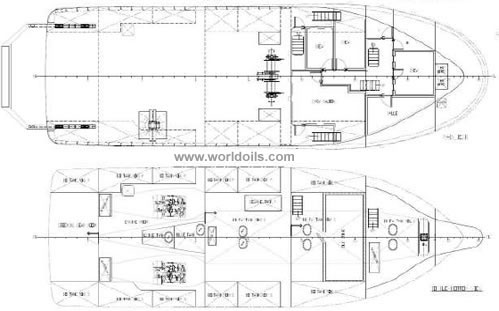

Multi Purpose supply/Utility/Dive Vessel for Sale - New building
