Reel Drive System / Under-Rollers - For Rent

Equipment ID: 3030
Equipment name: Reel Drive System / Under-Rollers - For Rent
Category: Miscellaneous Equipment
Specifications: Reel Drive System / Under-Rollers - For Rent
Reel Drive System for Rent

Description :

Four-wheel drive Under Rollers are designed for ease of handling and
maneuvering reels up to 350Te capacity. suitable for reels up to
11.2m diameter and variable width.

Under Rollers are supplied with diesel or electric hydraulic power
packs and can be manually or digitally controlled.

Also self-loading versions available complete with cradles to avoid the
need for a crane to load/unload reel.

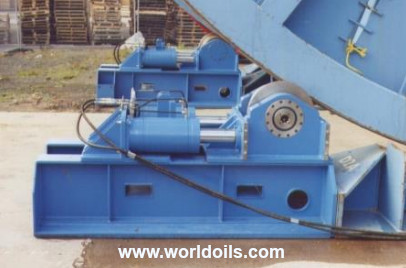

Crane loaded under roller description :
Consist of four powered rollers in carriage which rest on two sets
of bed beams. Bed beams are lifted into position with forklift and
spacer tubes are bolted between beds. Reel is lifted onto rollers
with crane.

Loading is possible both directions, Powered wheels comes with
hydraulic and mechanical brakes for both directions.

Data for 350 Ton capacity crane loaded under roller :
Drive force at rim per powered roller 2.6 – 3.4 Ton
Max rim speed with 110 l/min HPU 15 – 20 m/min
Max reel weight 350 Ton
Flange width Up to 240 mm
Hydraulic pressure 210 bar
Weight each carriage 3500 kg (two off)

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------
Search words (for official use only) :
Under-Rollers - For Rent
Under Rollers for reels up to 11.2m diameter
Under Rollers for Max reel weight 350 Ton
Reel Drive System / Under-Rollers for Charter
Used Reel Drive System / Under-Rollers for Rent
-------------------------------------------------------------------------------------------------------

Worldoils Oil, Gas and Offshore Marketplace - Reel Drive System / Under-Rollers - For Rent

Images

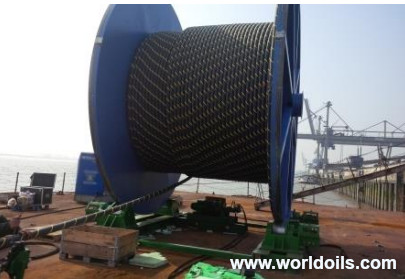

Under Rollers for reels up to 11.2m diameter
