Accommodation Work Barge for sale - 95.4m 300men
300 men Accommodation Work Barge for sale

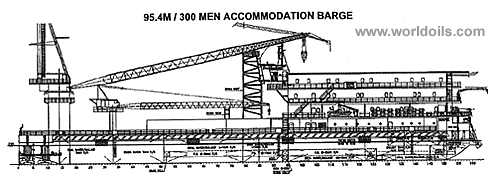

95.4M/300 men Accomodation Work Barge
------------------------------------------------------------
Principal particulars :
Built : 2010
Classification : ABS+A1 Accomodation Work Barge

Dimensions :
Length overall (LOA) : 95.4 m
Breadth moulded : 30.0 m
Depth : 6.5 m
Draft (design) : 4.0 m
Lightship draft : 2.5 m
DWT 4.0m draft : abt 5,100 t
GRT/Nett tonnage : 8,691t /2,607t

Deck Loading :
Cargo deck area : approx. 1135 sqm
Cargo deck design load : 10 t/ sqm

Capacities :
MGO/ Fuel : 1323 cbm
Fresh water : 2621 cbm
Ballast : 3000 cbm

Discharge Rates :
Fresh water/pump : 1 x 100 cbm/hr @ 80m head
Fuel oil/pump : 1 x 100 cbm/hr @ 80m head
Ballast water : 2 x 160 cbm/hr @ 90m head

Machinery :
5 x Generator set diesel driven, each 420 kW @ 1800 rpm
1 x Radiator cooled emergency generator set 99 kW @ 1800 rpm

Life saving and safety equipment :
As per SOLAS Class requirement
Liferaft : 36 units x 25 persons
Rescue boat : Cap 6 persons (Vanguard) c/w davit

Accomodation :
4 x 1 men cabin
10 x 2 men cabin
69 x 4 men cabin
Complement - 300 men

Deck equipment :
Pedestal crane : All main drive and hydraulic operated, Min boom length 52m offshore floating rating 200t @ 15m radius
Auxiliary crane : 30t @ 10m radius
Bouy handling crane : 2t x 10m @ B deck bow
Mooring winch : 8 x skid mounted self-contained single drum rated pull 75t x 10m/min/20t x 0-30m/min
Drum capacity : 1400m of 44 mm dia steel wire rope
Anchors : 8 x Flipper Delta 700kg high holding power
Helideck : Suitable for Sikorsky 61N capacity

Navigation and communication equipment :
VHF (Furuno FM-8800)/DSC Radio Telephone : 2 sets
MF/HF Radio Telephone : 1 set
Radar Transponder (SART) McMurdo S4 GMDSS 9GHz :1unit
Two-way hand-held VHF Radio Telephone : 3 units
DGPS (Furuno GP37 DGPS Receiver) : 1 unit
Aviation portable radio : 2 sets
Inmarsat (Furuno Felcom 16 SSAS) : 1 unit
Inmarsat Fleet Boroadband (KVH FB 500) : 1 unit
Echo sounder (Furuno FCV-620) : 1 unit
Navtex (McMurdo Nav-7) : 1 unit
Anemometer (RM Young wind anemometer) : 1unit
EPIRB (McMurdo Smartfind E5) : 1 unit
AIS (Furuno FA150) : 1 unit
SSB (Furuno FS1570 MF/HF) : 1 unit
Helicopter comm system ( 1 x Icom A210 VHF AM Transceiver, 2 x Icom
A24 aviation portable radio beacon)

Accomodation spaces/equipment :
Galley : 1 x 180-catering with cooking utensils/refrigeration
Day room : 2 x Master/Senior tool pusher day room and bedroom c/w toilet
Mess room : 2 x abt 150 persons each with furnitures and fittings
Lecture room : 1 x crew TV/Video room
Recreation room : 2 x crew/officer recreation room (including smoking rooms)
Gymnasium : 1 x fully outfitted
Laundry room : 1
Changing room : 1
Treatment room : 1
Tool pusher office : 1
Freezer/chiller : 1
Church room : 1
Heli waiting room : 1
Watermaker : 2 x R/O units @ 50T/day
Sewage treatment : 200-pax capacity complying to IMO and USCG
Workshop : 2 x company/deck workshop
Hospital : 1 c/w 5 berths, furnitures and toilet
Conference room : 1 c/w meeting facilities
Office : 3 x furnished at top deck
Radio / control room : 1 x fully outfitted with communication and fire safety monitoring alarm system at top deck
Blasting and painting room : 1

Particulars believed to be correct. Owners reserve their rights to amend specifications without notification

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

----------------------------------------------------------------------------------------------------------
