Military Hospital & Medical Units
Hospitals in containers for Oilfields
Hospitals on Trailers For Mines & Deserts

Following are some of the sample units that we have for sale.
Specific requirements have to be discussed.

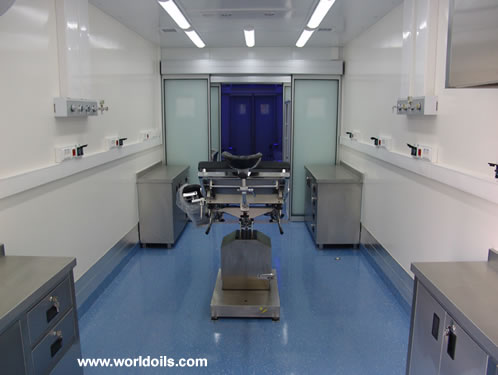

Operating Theater
20" Steel Container :
One side expandable
Dismountable levelling jacks at four corners

Tent with metal structure : 27 sqm total area
Built-in AC 36,000 BTU : (Heating / Cooling)
Ventilation : With filtration
Air sterilization : 4 HEPA filters
Built-in water tank : 100 lt
Water heater : Electric powered
Water treatment system : Reverse Osmosis

Piping and Fittings : Potable water / waste water
Back-up generator : Diesel 6 kva
Electrical installation : Distribution panel, cabling,  earthing
PVC inner surface coverings : anti bacterial, anti static
Inner illumination : IP 65 lamps
External power connectıons : Inlet / outlet

Medical gas system :
2 overhead pendants with oxygen,
nitrogen, medical air 4, vacuum

Intensive Care Unit
20" Steel Container : One side expandable
Dismountable levelling jacks at four corners
Tent with metal structure : 20 sqm total area
Built-in AC 36,000 BTU : (Heating / Cooling)

Ventilation : With filtration
Air sterilization : 4 HEPA filters
Built-in water tank : 100 lt
Water heater : Electric powered
Water treatment system : Reverse Osmosis

Piping and Fittings : Potable water / waste water
Back-up generator : Diesel 6 kva
PVC inner surface coverings : anti bacterial, anti static
Electrical installation : Distribution panel, cabling, earthing
Inner illumination : IP 65 lamps

External power connectıons : Inlet / outlet
Medical gas system : 2 overhead pendants with oxygen,
nitrogen, medical air 4, vacuum

Care Connections Container
20" Steel Container : Dismountable levelling jacks at four corners
Joining tubes : Flexible
Built-in AC 18,000 BTU : (Heating / Cooling)
Ventilation : With filtration
Built-in water tank : 100 lt

Water heater : Electric powered
Water treatment system : Reverse Osmosis
Piping and Fittings : Potable water / waste water
Electrical installation : Distribution panel, cabling, earthing

Inner illumination : IP 65 lamps
External power connectıons : Inlet / outlet
Medical gas transfer system : copper pipes
Medical gas transfer system : anti bacterial, anti static

Connection Container
20" Steel Container : Dismountable levelling jacks at four corners
Joining tubes : Flexible
Built-in AC 18,000 BTU : (Heating / Cooling)
Ventilation : With filtration
Built-in water tank : 100 lt
Water heater : Electric powered

Water treatment system : Reverse Osmosis
Piping and Fittings : Potable water / waste water
Electrical installation : Distribution panel, cabling, earthing
Inner illumination : IP 65 lamps
External power connectıons : Inlet / outlet
Medical gas transfer system : copper pipes
PVC inner surface coverings : anti bacterial, anti static

Radiology Container
20" Steel Container : Dismountable levelling jacks at four corners
Joining tubes : Flexible
Anti-radiation shielding : lead sheets (1,5 mm) covered on all sides
Built-in AC 18,000 BTU : (Heating / Cooling)
Ventilation : With filtration, additional floor level aspiration

Built-in water tank : 100 lt
Water heater : Electric powered
Water treatment system : Reverse Osmosis
Piping and Fittings : Potable water / waste water
Electrical installation : Distribution panel, cabling, earthing
Inner illumination : IP 65 lamps
External power connectıons : Inlet / outlet
PVC inner surface coverings : anti bacterial, anti static

Supply Container
20" Steel Container : Dismountable levelling jacks at four corners
Joining tubes : Flexible
Built-in AC 18,000 BTU : (Heating / Cooling)
Ventilation : With filtration
Built-in water tank : 2 tonnes
Waste water tank : 2 tonnes
Water heater : Electric powered

Water treatment system : 4 level filtration + Reverse Osmosis
Piping and Fittings : Potable water / waste water
Diesel generator : 20 KvA
Electrical installation : Distribution panel, cabling, earthing

Inner illumination : IP 65 lamps
External power connectıons : Inlet / outlet
Medical gas transfer system : copper pipes
PVC inner surface coverings : anti bacterial, anti static

Price & terms : Please enquire using the email form below.

If you cannot find the Mobile Hospital Unit that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of containers where needed.

The details mentioned above are believed to be accurate but are not guaranteed.

---------------------------------------------------------------------------------------------------------------------
