OIME SL7 HELI-RIG for Sale
1000HP Helicopter Land Rig
Mechanical Helicopter Land Rig For Sale

We can build Helicopter Rigs of various sizes and types.
Please contact us on rigs@worldoils.com or call +65 ...

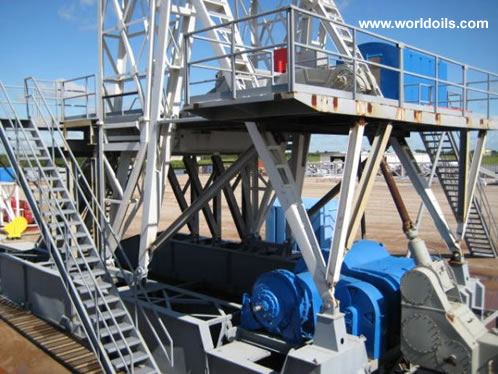

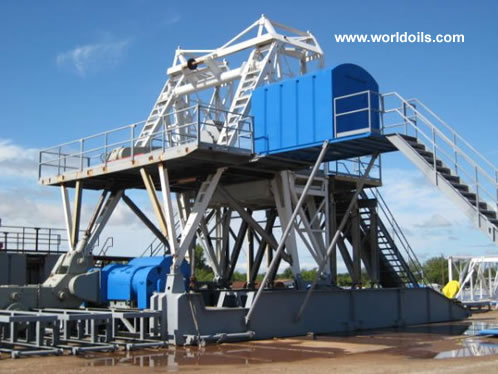

Example of a 1000HP Helicopter Rig is displayed here.
All details and load information available on request

Description:
1000 HP, 4800# to 7200# Lift Loads +/-12,000' Drilling Rig
Country: USA

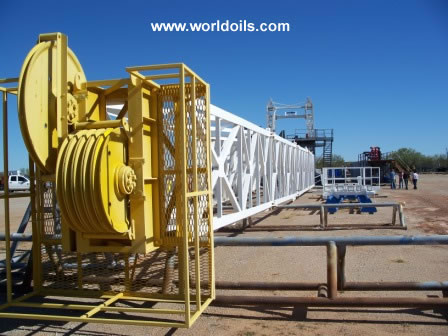

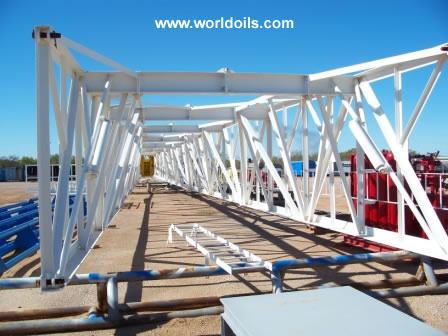

Mast
Lee C. Moore 131’FT X 510,000# Capacity SHL, Racking Board,
Boom Line, Tong Weights, Six (6) 42” Sheave Crown Cluster w/ 56”
Fast Line Sheave, 1 1/8” Grooved, Crown Safety Platform, (New) Water
Table Derrick Shoes,Derrick Lights. New Derrick Sections
(CAT 4 API 4F inspection)

Sub Base
Seventeen (17’) Foot High Low Lift Substructure, Rated 450,000#
Setback Capacity, V-Door, Three (3) Sets of Stairs, Handrails,
Substructure, Skid Runners 4’ Wide X 5’High X 60’Long
(Cat 4 API 4F Inspection)

Drawworks
OIME SL 7 Drawworks, Rated 1000 HP, 1 1/8” Lebus Grooved,
342A  Hydromatic Brake, Driller’s Console(New), Hydraulic
Catheads (New), Four (4) Engine Compound (Remanufactured)
Powered by Four (4) Cat, C15, 540 Hp Ea. Diesel Engines(New)
Twin Disc Transmissions (Rebuilt), Four (4) Engine Skid Boxes(New)

Block/Hook
Continental Emsco Five (5) Sheave 1 1/8” Line Grooved, 250 Ton Block
 w/ Web Wilson 250 Ton Hydra Hook (Rebuilt)

Swivel
Gray B44, 300 Ton Swivel (Rebuilt)

Rotary
Ideco Type E, 23” X 53 ¼” w/ Split Master Bushing, Sprocket 26T with
 2” Pitch (Rebuilt)

Dog House
Top House 8’Wide X 9’High X 10’ Long with 4’ Porch, Total
Length 14’ Knowledge Box, Two (2) Lockers (New)

Bottom House
Bottom House 8’ Wide X 9’High X 10’ Long with 4’ Porch, Total
Length 14’ (New)

Pumps
Two (2) OIME H700, 6” X 10”, Heli-Triplex Pumps /w Mattco Pulsation
Dampener 5000#, Pop Off, Pressure Gauge, Ten (10”) Inch Pump Suction
Skidded, Powered by Compound Engines (Rebuilt)

Note : Additional new OIME H700 pumps & parts are available if needed.

Mud Pits
SEVEN  Fly Pits 7’7” Wide X 8’High X 9’6” Long, Detachable, Mounted
On Two (2) 49’ Skid, 800 Barrel Capacity, Mud Troughs, Four (4)
Brandt Agitators 10 HP @1175 RPM, 240V, O’Drill/MCM Linear Shale
Shaker, Sixteen (16) 4” Cone Desilter, Desander, Four (4) 4” X 5”
Centrifical Pumps, High & Low Pressure Piping (New Tanks)
Rebuilt mud equipment. New linear shaker new 6 x5 centrifugal MCM
pumps with motors

Generators
Two (2) Cat 3406, C15, Diesel Engine w/ Cat SR4 350 KW Generators,
Factory Control Panel, Individual Skids 7’6” Wide X 20’ Long
With Detachable Roofs.  Air Compressor (New)

Diesel Tanks
Three (3) 6’ Dia. X 20’ Long, 4,000 Gallons Heli-Lift Fuel Tanks
Removable Skids (New)

Water
Three (3) 8’5” Dia. X 8’ Long, 360 BBL Ea. Heli-Lift Water Tanks
TANKS (New)

BOP
One (1) Hydril GK 13 5/8”Annular, 3000# (Certified & Rebuilt)
Two (2) Schaffer 13 5/8”, Single Ram, 5000#, w/ Two (2) 4” Outlets
(Certified & Rebuilt)

Closing Unit
OCO, Five (5) Station, 120 Gallon, Two (2) Air Pumps, One (1) Triplex
Hydraulic Charging Pump (New)

Miscellaneous
Catwalk 18”High X 4’ Wide X 50’Long, Two Sections 25’
Each (New)
Three Sets of Triangular Pipe Racks 18” High X 28’Long (New)
Five (5) Storage Boxes, Detachable, Mounted on 35’Long Skid

Bails 108”Long X 2 3/4” Dia. (Inspected)
Mud Hopper 4”
Tongs, BJ, Type DB with Tong Heads 3 ½” to 10 ¾” (Rebuild)
Drill Pipe Slips 4 ½” (New)
Drill Collar Slips 4 ½” to 8” (New)
Elevators 4 ½” (Rebuild)

Air Hoist 9/16” Steel Line
Handling Subs
Junk Box
Spool Wire Line 1 1/8”, 4000’ (New)
Extra Spare Parts
Martin Decker Weight Indicater. Tong Torque (Rebuild)

Price & terms : Please enquire using the email form below.

If you cannot find the vessel, crane, rig or equipment that you need,
please send us an email to mail@worldoils.com stating your
requirements and we shall find it for you.

We can arrange delivery of equipment and towage of rigs and vessels where needed.

The details mentioned above are believed to be accurate but are not guaranteed.




--------------------------------------------------------------------
